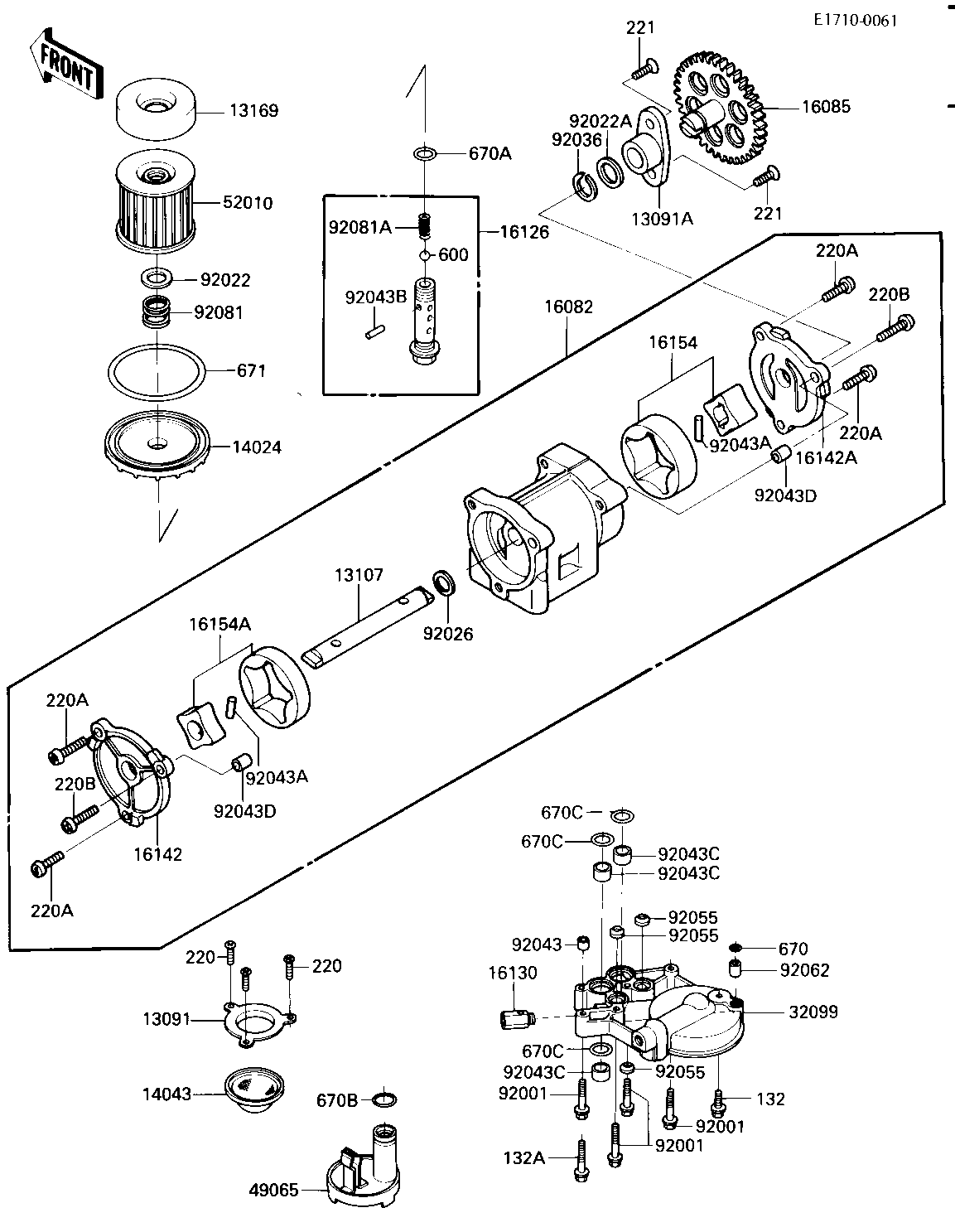

1986 Eliminator - OIL PUMP/OIL FILTER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,OIL FILTER 13091 13091-1274 1
HOLDER,PUMP GEAR 13091A 13091-1333 1
SHAFT,OIL PUMP 13107 13107-1105 1
PLATE,OIL FILTER 13159 13169-1313 1
UNAVAILABLE IN PRICE BOOK 14024 14026-1422 1
STRAINER,OIL 14043 16111-003 1
PUMP-ASSY-OIL 16082 16082-1060 1
GEAR,OIL PUMP,35T 16085 16085-1103 1
VALVE,OIL FILTER 16126 16126-1108 1
RELEAF VALVE ASSY 16130 16130-1001 1
COVER-PUMP,LH 16142 16142-1052 1
COVER-PUMP,RH 16142A 16142-1054 1
ROTOR ASSY,OIL PUMP 16154 16154-1007 1
ROTOR-PUMP 16154A 16154-1053 1
CASE,OIL FILTER 32099 32099-1083 1
FILTER-OIL 49065 49065-1066 1
FILTER,OIL 52010 16099-003 1
BOLT,FLANGED,6X38 92001 92001-1105 4
WASHER,20.5X30X1.0 92022 92022-1012 1
WASHER,14X20X1 92022A 92022-1495 1
SPACER,OIL PUMP 92026 92026-1230 1
RING-SNAP,PUMP GEAR 92036 92036-1052 1
PIN-DOWEL 92043 92042-007 1
PIN,DOWEL 5X17.8 92043A 92043-1061 2
SPRING PIN 92043B 92043-111 1
PIN,18X20X12 92043C 92043-1213 3
PIN,DOWEL,8X10 92043D 92043-1302 2
"O" RING 92055 92055-077 3
NOZZLE 92062 92062-1055 1
UNAVAILABLE IN PRICE BOOK 92071 92071-1017 1
UNAVAILABLE IN PRICE BOOK 92071A 92071-109 1
BOLT-FLANGED-SMALL 132 132G0616 1
BOLT-FLANGED-SMALL 132A 132G0645 1
SCREW PAN HEAD 6X12 220 220B0612 3
SCREW PAN HEAD 6X14 220A 220B0614 4
SCREW PAN HEAD 6X20 220B 220B0620 2
SCREW CNTSNK HD 6X16 221 221B0616 2
BALL STEEL 3/8' 600 600A1200 1
"O" RING,8MM 670 670B1508 1
"0" RING,16MM 670A 670B2016 1
"0" RING,18MM 670B 670B2018 1
O RING 670C 670D2020 3
"0" RING,90MM 671 671B2590 1
