Parts Diagrams |

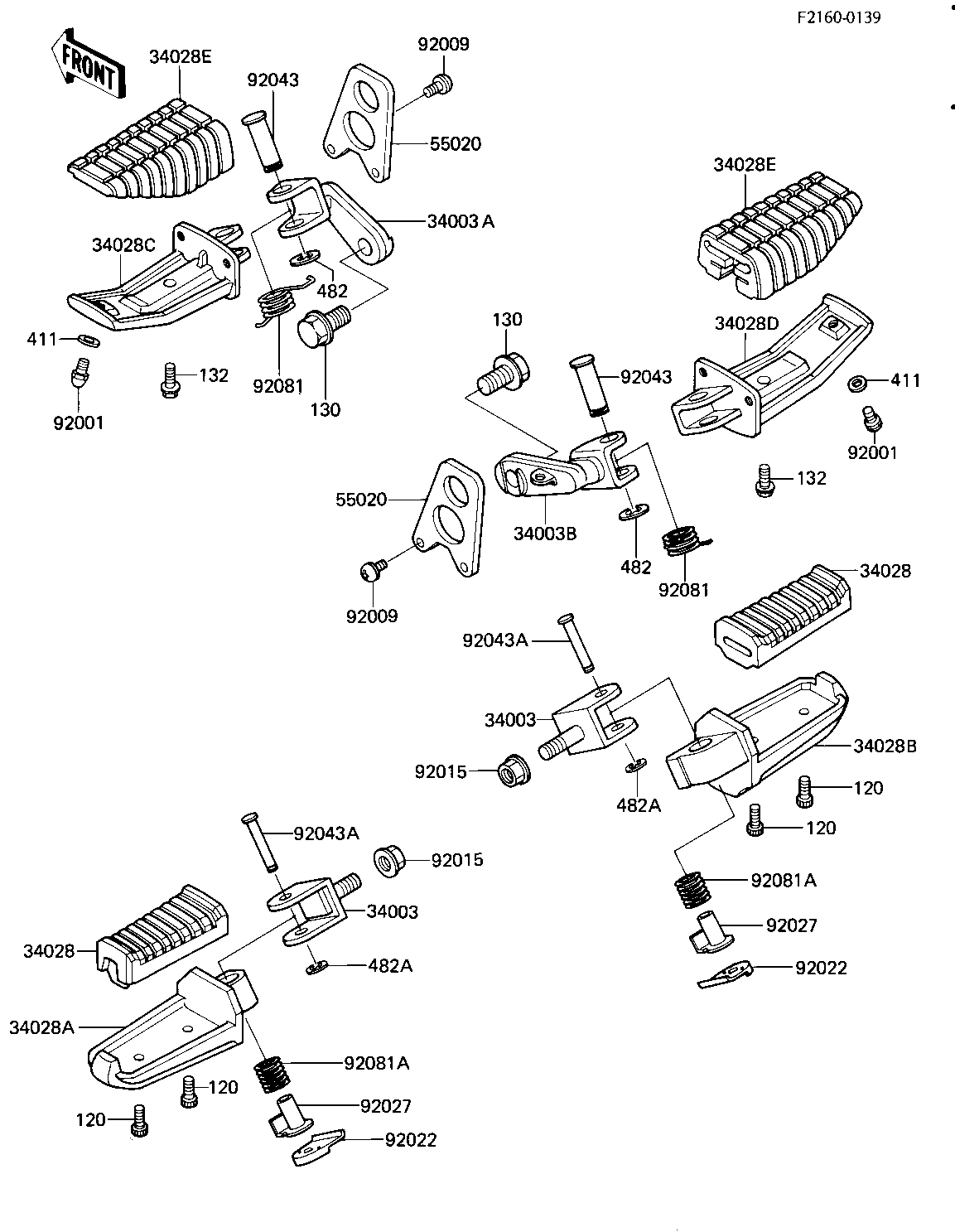

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER-STEP,RR | 34003 | 34003-1240 | 2 | ||
HOLDER-STEP,FR,LH | 34003A | 34003-1241 | 1 | ||
HOLDER-STEP,FR,RH | 34003B | 34003-1242 | 1 | ||
STEP,RR,RUBBER | 34028 | 34028-1060 | 2 | ||
STEP,RR,LH | 34028A | 34028-1158 | 1 | ||
STEP,RR,RH | 34028B | 34028-1159 | 1 | ||
STEP,FR,LH | 34028C | 34028-1162 | 1 | ||
STEP,FR,RH | 34028D | 34028-1163 | 2 | ||
STEP,FR,RUBBER | 34028E | 34028-1164 | 2 | ||
GUARD | 55020 | 55020-1197 | 2 | ||
BOLT,6X10 | 92001 | 92001-1905 | 2 | ||
SCREW | 92009 | 92009-1404 | 4 | ||
NUT,FLANGED,10MM | 92015 | 92015-1428 | 2 | ||
WASHER,STEP,RR | 92022 | 92022-1507 | 2 | ||
COLLAR,STEP | 92027 | 92027-1732 | 2 | ||
PIN,12X37 | 92043 | 92043-1144 | 2 | ||
PIN | 92043A | 92043-1294 | 2 | ||
SPRING,STEP RETURN,RH | 92081 | 92144-1568 | 2 | ||
SPRING,STEP,RR | 92081A | 92081-1612 | 2 | ||
BOLT-SOCKET | 120 | 120Z0514 | 4 | ||
BOLT-FLANGED | 130 | 130C1220 | 2 | ||
BOLT-FLANGED-SMALL | 132 | 132G0616 | 2 | ||
WASHER PLAIN 6MM | 411 | 411B0600 | 2 | ||
RING, SNAP | 482 | 482L0100 | 2 | ||
CIRCLIP-TYPE-E,5MM | 482A | 482L5000 | 2 |
HOLDER-STEP,RR | |
REF # | 34003 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER-STEP,FR,LH | |
REF # | 34003A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-STEP,FR,RH | |
REF # | 34003B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP,RR,RUBBER | |
REF # | 34028 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STEP,RR,LH | |
REF # | 34028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP,RR,RH | |
REF # | 34028B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP,FR,LH | |
REF # | 34028C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STEP,FR,RH | |
REF # | 34028D |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STEP,FR,RUBBER | |
REF # | 34028E |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUARD | |
REF # | 55020 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X10 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,FLANGED,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,STEP,RR | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,STEP | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,12X37 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,STEP RETURN,RH | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING,STEP,RR | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-SOCKET | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING, SNAP | |
REF # | 482 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CIRCLIP-TYPE-E,5MM | |
REF # | 482A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
