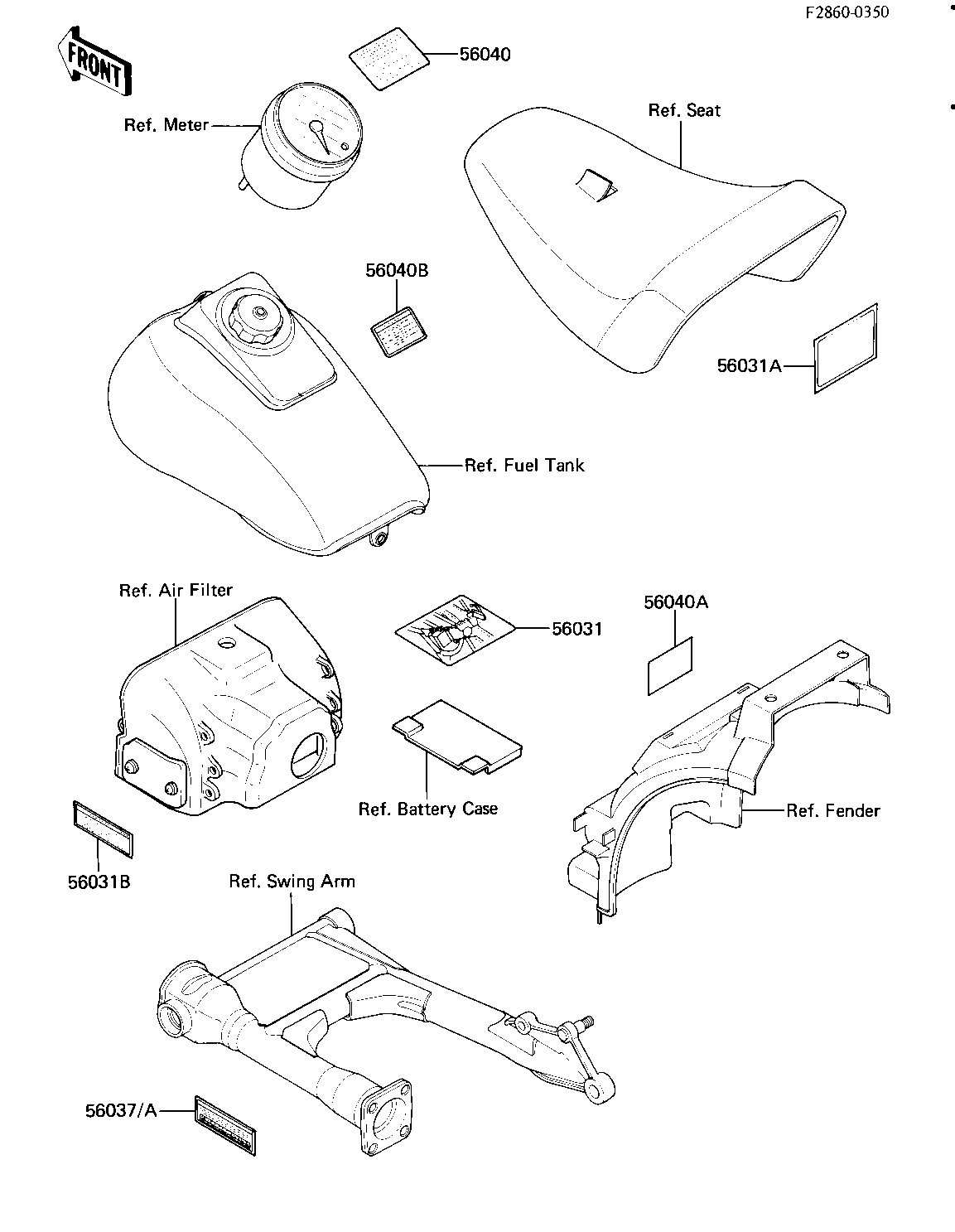

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL-MANUAL,BATTERY 56031 56031-1399 1
LABEL-MANUAL,DAILY SA 56031A 56031-1425 1
LABEL-MANUAL,OIL & OI 56031B 56031-1428 1
LABEL-SPECIFICATION,T 56037 56037-1306 1 CA,US
LABEL-SPECIFICATION,TIRE& (Can 56037A 56037-1307 1 CN
LABEL,BRAKE-IN 56040 56040-1007 1 CA,US
LABEL,AIR INTAKE 56040A 56040-1014 1
LABEL-WARNING,FUEL TK 56040B 56040-1121 1 CA
