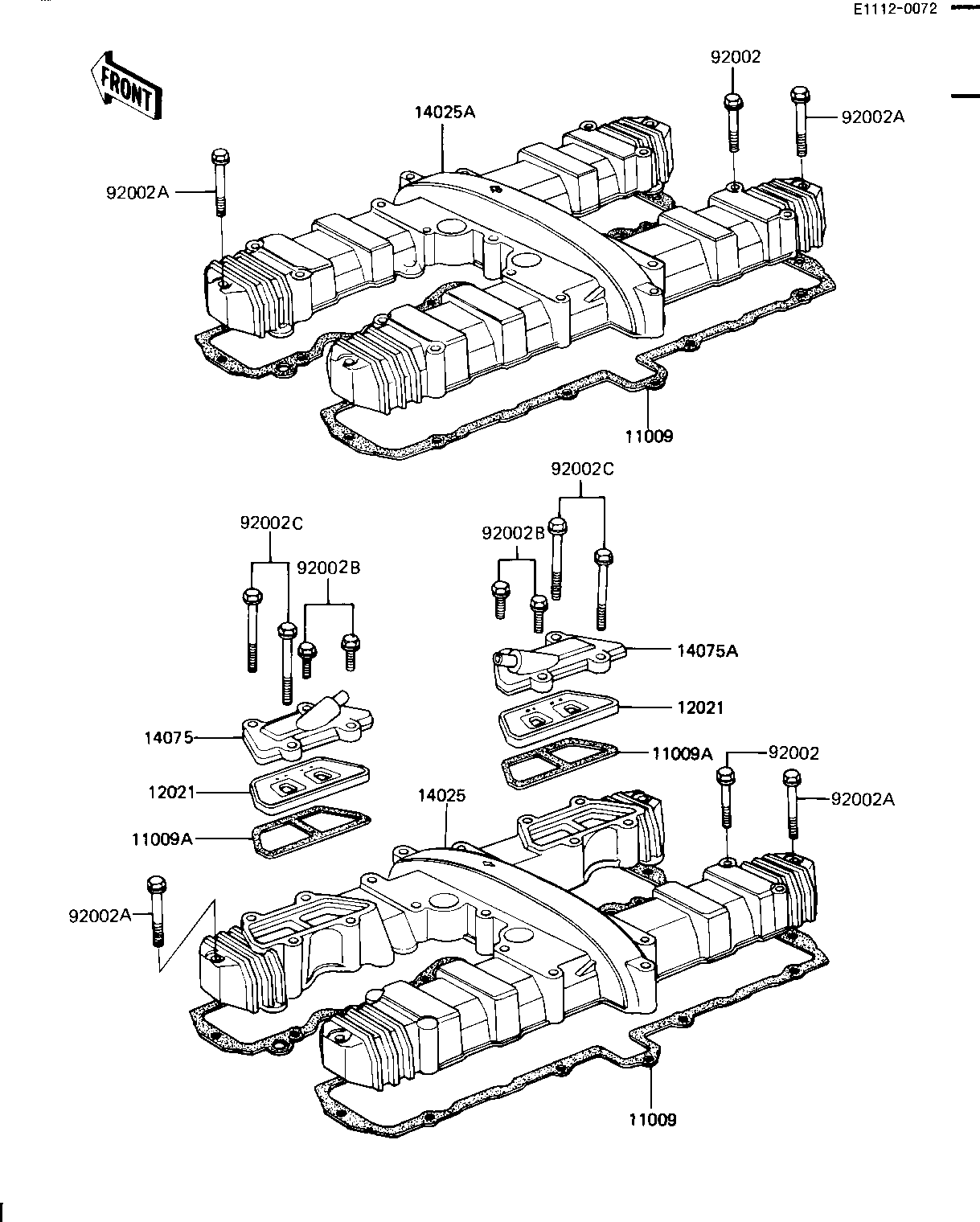

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 11009 11009-1205 1
GASKET,REED VALVE 11009A 11060-1066 2 CA,US
VALVE-ASSY-REED 12021 12021-1008 2 CA,US
COVER,CYLINDER HEAD,S 14025 14025-1465 1 CA,US
COVER,CYLINDER HEAD,SILVE (Can 14025A 14025-1466 1 CN
CAP-ASSY,REED VALVE,L 14075 14075-5018 1 CA,US
CAP-ASSY,REED VALVE,R 14075A 14075-5019 1 CA,US
BOLT,6X45 92002 92002-1151 16 CA,US
BOLT,6X45 92002 92002-1151 20 CA,US
BOLT,6X52 92002A 92002-1152 4
BOLT,6X22 92002B 92002-1154 4 CA,US
BOLT,6X70 92002C 92002-1155 4 CA,US
