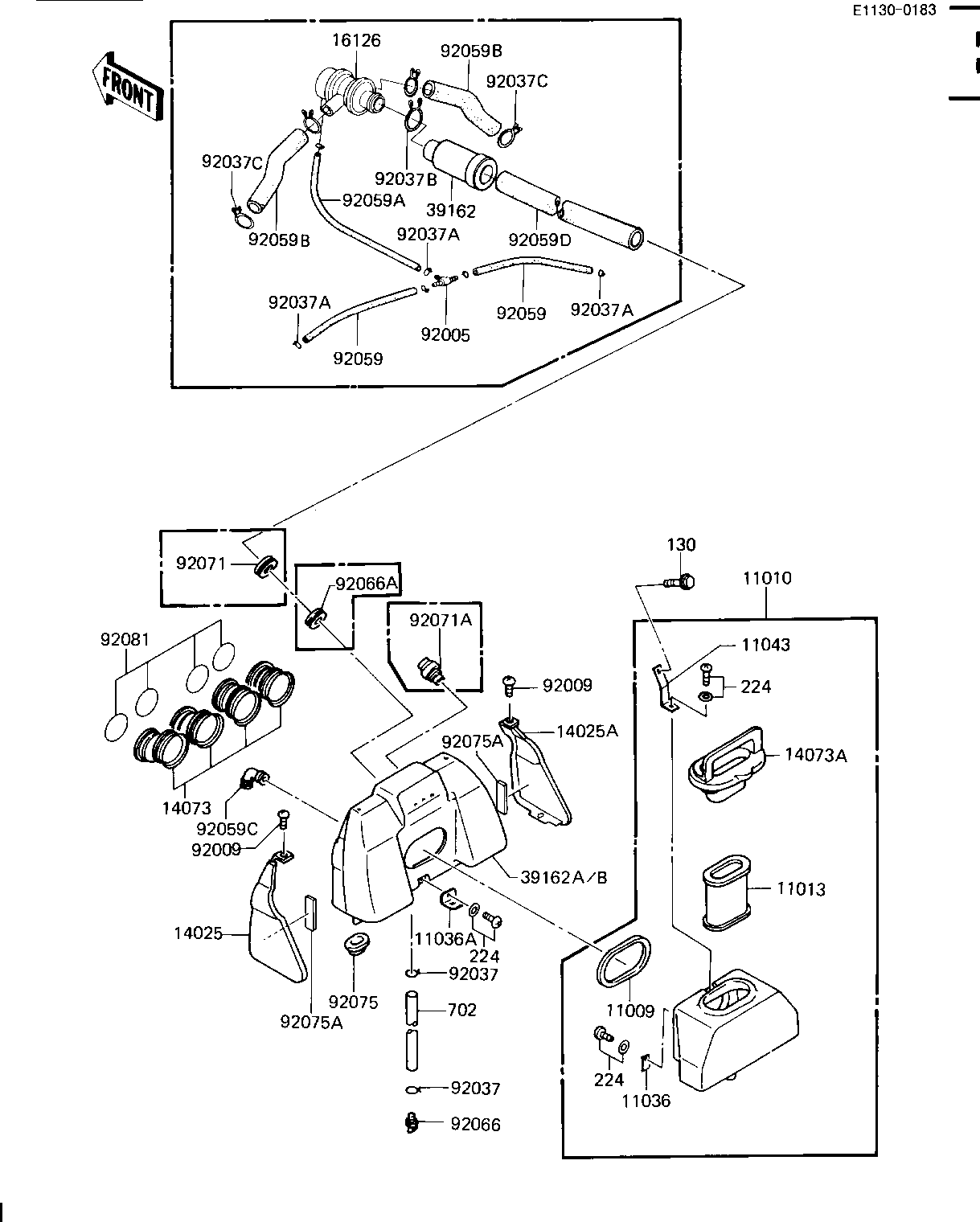

1985 LTD Shaft - AIR CLEANER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,AIR FILTER 11009 11009-1403 1
FILTER-ASSY-AIR 11010 11010-1224 1
ELEMENT,AIR CLNR 11013 11013-1040 1
BRACKET-A,FILTER CASE 11036 11036-1456 1
BRACKET-A,SILENCER 11036A 11036-1458 1 CA,US
BRACKET,AIR FILTER,UP 11043 11043-1554 1
COVER,INTAKE SILENCER 14025 14025-1846 1
COVER,INTAKE SILENCER 14025A 14025-1847 1
DUCT,AIR FILTER,OUTLE 14073 14073-1048 4
DUCT,AIR FILTER 14073A 14073-1173 1
VALVE ASSY,AIR SWITCH 16126 16126-1014 1 CA,US
SILENCER 39162 39162-1003 1 CA,US
SILENCER-INTAKE 39162A 39162-1053 1 CN,US
SILENCER-INTAKE 39162B 39162-1055 1 CA
FITTING,TUBE 92005 92005-1017 1 CA,US
SCREW,TAPPING,5X12 92009 92009-1319 2
CLAMP FUEL PIPE 92037 92037-010 2
CLAMP-PIPE 92037A 92037-072 6 CA,US
CLAMP 92037B 92037-1076 1 CA,US
CLAMP,BREATHER TUBE 92037C 92037-213 4 CA,US
TUBE,VACUUM,LONG 92059 92059-1162 2 CA,US
TUBE,VACUUM,LONG 92059A 92059-1162 1 CA,US
TUBE,14X20X89 92059B 92059-1155 2 CA,US
TUBE,AIR FILTER 92059C 92059-1156 2 CA,US
TUBE,14X20X340 92059D 92059-1171 1 CA,US
PLUG,DRAIN,AIR FILTER 92066 92066-1121 1
PLUG 92066A 92074-027 1 CN
GROMMET,AIR FILTER 92071 92071-1042 1 CA,US
GROMMET,AIR FILTER 92071A 92071-1112 1 CA
DAMPER,SILENCER DRAIN 92075 92075-1632 2
DAMPER,AIR FILTER COV 92075A 92075-1658 2
SPRING,COIL,BLACK 92081 92081-1457 4
BOLT 130 130B0614 1
SCREW-PAN-WP-CROS 224 224B0514 3
TUBE-RUBBER 5X400 702 702A05400 1
