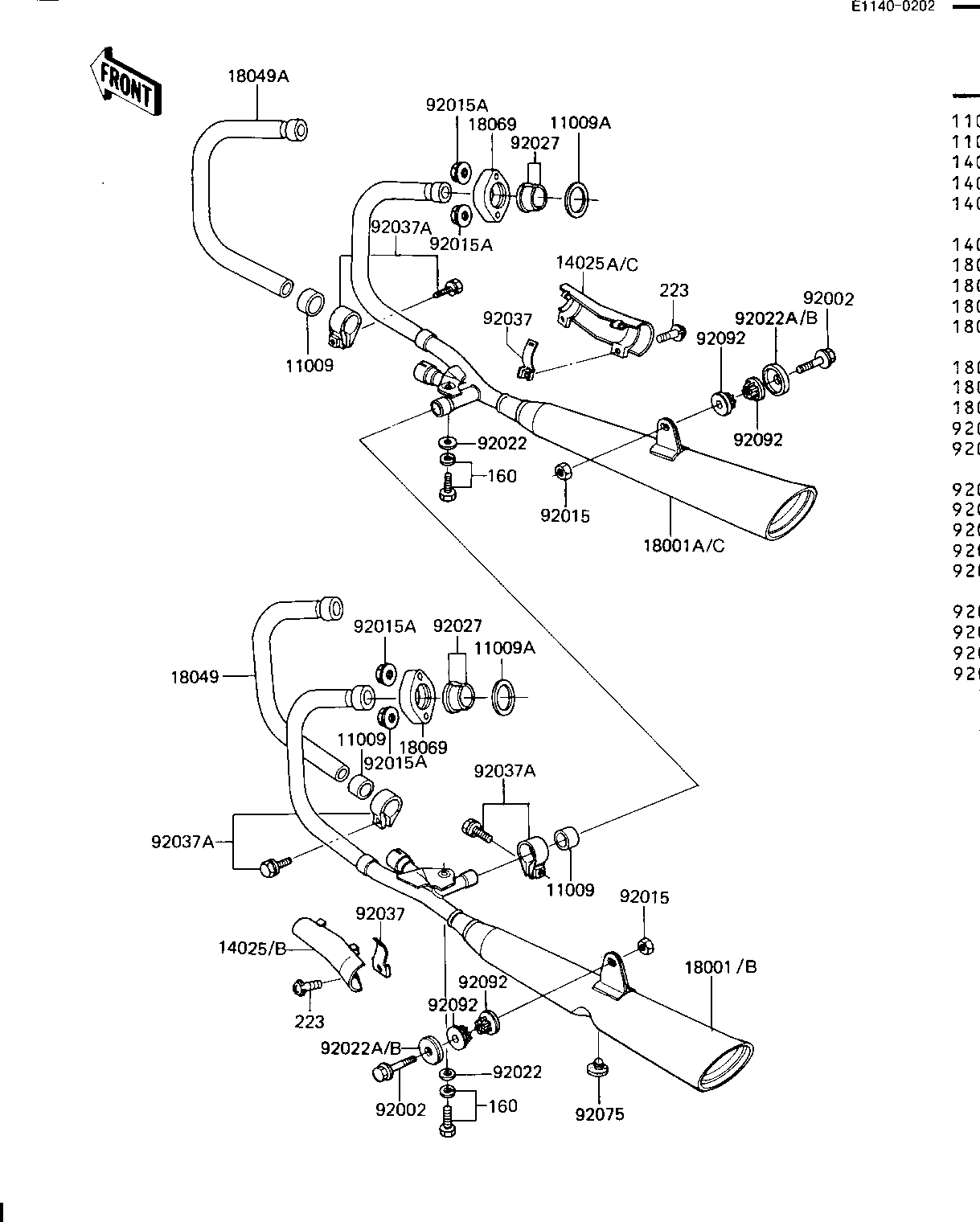

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,MANIFOLD EXHAU | 11009 | 11060-1068 | 3 | ||
GASKET,EXHAUST PIPE H | 11009A | 11009-1906 | 4 | ||
COVER,MUFFLER,LH | 14025B | 14025-1955 | 1 | ||
COVER,MUFFLER,RH | 14025C | 14025-1956 | 1 | ||
MUFFLER,LH | 18001B | 18001-1561 | 1 | ||
MUFFLER,RH | 18001C | 18001-1562 | 1 | ||
PIPE-EXHAUST,#2 | 18049 | 18049-1188 | 1 | ||
PIPE-EXHAUST,#3 | 18049A | 18049-1189 | 1 | ||
HOLDER-EXHAUST PIPE | 18069 | 18069-1015 | 4 | ||
BOLT,10X55 | 92002 | 92002-1127 | 2 | ||
NUT,LOCK,10MM | 92015 | 92015-1376 | 2 | ||
NUT,8MM | 92015A | 92015-1398 | 8 | ||
WASHER,PLAIN | 92022 | 92022-1022 | 2 | ||
WASHER,CUP TYPE | 92022A | 92022-1270 | 2 | ||
COLLAR,EXHAUST PIPE,B | 92027 | 92027-1457 | 8 | ||
CLAMP.MUFFLER COVER | 92037 | 92037-1374 | 4 | ||
CLAMP,MUFFLER | 92037A | 92037-1536 | 3 | ||
DAMPER RUBBER,MAIN ST | 92075 | 92075-1002 | 1 | ||
BUSHING-RUBBER | 92092 | 92092-1013 | 4 | ||
BOLT-FINE-WS | 160 | 160X1080 | 2 | ||
SCREW-PAN-WS-CROS | 223 | 223X0620 | 4 |
GASKET,MANIFOLD EXHAU | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
GASKET,EXHAUST PIPE H | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COVER,MUFFLER,LH | |
REF # | 14025B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,MUFFLER,RH | |
REF # | 14025C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MUFFLER,LH | |
REF # | 18001B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MUFFLER,RH | |
REF # | 18001C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-EXHAUST,#2 | |
REF # | 18049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-EXHAUST,#3 | |
REF # | 18049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-EXHAUST PIPE | |
REF # | 18069 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,10X55 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,LOCK,10MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,8MM | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
WASHER,PLAIN | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,CUP TYPE | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,EXHAUST PIPE,B | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
CLAMP.MUFFLER COVER | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,MUFFLER | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,MAIN ST | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING-RUBBER | |
REF # | 92092 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT-FINE-WS | |
REF # | 160 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS | |
REF # | 223 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
