Parts Diagrams |

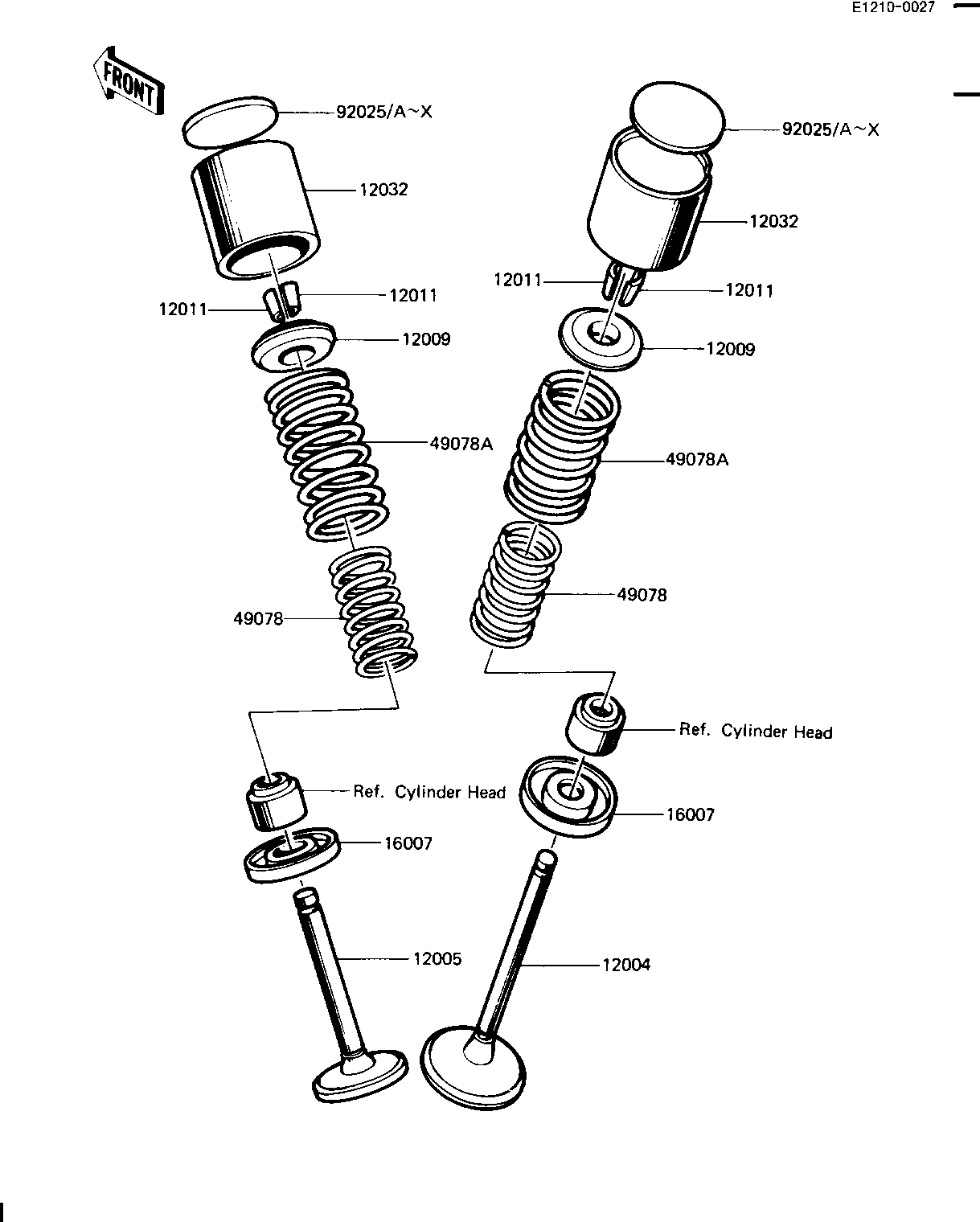

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
VALVE-INTAKE | 12004 | 12004-1087 | 4 | ||
VALVE-EXHAUST | 12005 | 12005-1016 | 4 | ||
RETAINER,VALVE SPRING | 12009 | 12009-005 | 8 | ||
SPLIT KEEPER | 12011 | 12011-004 | 16 | ||
TAPPET | 12032 | 12032-1002 | 8 | ||
SEAT-SPRING,VALVE | 16007 | 16007-1024 | 8 | ||
SPRING,VALVE,INNER | 49078 | 49078-1001 | 8 | ||
SPRING,VALVE,OUTER | 49078A | 49078-1002 | 8 | ||
SHIM,TAPPET,2.00T | 92025 | 12037-001 | AR | ||
SHIM,TAPPET,2.05T | 92025A | 12037-002 | AR | ||
SHIM,TAPPET,2.10T | 92025B | 12037-003 | AR | ||
SHIM,TAPPET,2.15T | 92025C | 12037-004 | AR | ||
SHIM,TAPPET,2.20T | 92025D | 12037-005 | AR | ||
SHIM,TAPPET,2.25T | 92025E | 12037-006 | AR | ||
SHIM,TAPPET,2.30T | 92025F | 12037-007 | AR | ||
SHIM,TAPPET,2.35T | 92025G | 12037-008 | AR | ||
SHIM,TAPPET,2.40T | 92025H | 12037-009 | AR | ||
SHIM,TAPPET,2.45T | 92025I | 12037-010 | AR | ||
SHIM,TAPPET,2.50T | 92025J | 12037-011 | AR | ||
SHIM,TAPPET,2.55T | 92025K | 12037-012 | AR | ||
SHIM,TAPPET,2.60T | 92025L | 12037-013 | AR | ||
SHIM,TAPPET,2.65T | 92025M | 12037-014 | AR | ||
SHIM,TAPPET,2.70T | 92025N | 12037-015 | AR | ||
SHIM,TAPPET,2.75T | 92025O | 12037-016 | AR | ||
SHIM,TAPPET,2.80T | 92025P | 12037-017 | AR | ||
SHIM,TAPPET,2.85T | 92025Q | 12037-018 | AR | ||
SHIM,TAPPET,2.90T | 92025R | 12037-019 | AR | ||
SHIM,TAPPET,2.95T | 92025S | 12037-020 | AR | ||
SHIM,TAPPET,3.00T | 92025T | 12037-021 | AR | ||
SHIM,TAPPET,3.05T | 92025U | 12037-022 | AR | ||
SHIM,TAPPET,3.10T | 92025V | 12037-023 | AR | ||
SHIM,TAPPET,3.15T | 92025W | 12037-024 | AR | ||
SHIM,TAPPET 3.20T | 92025X | 12037-025 | AR |
