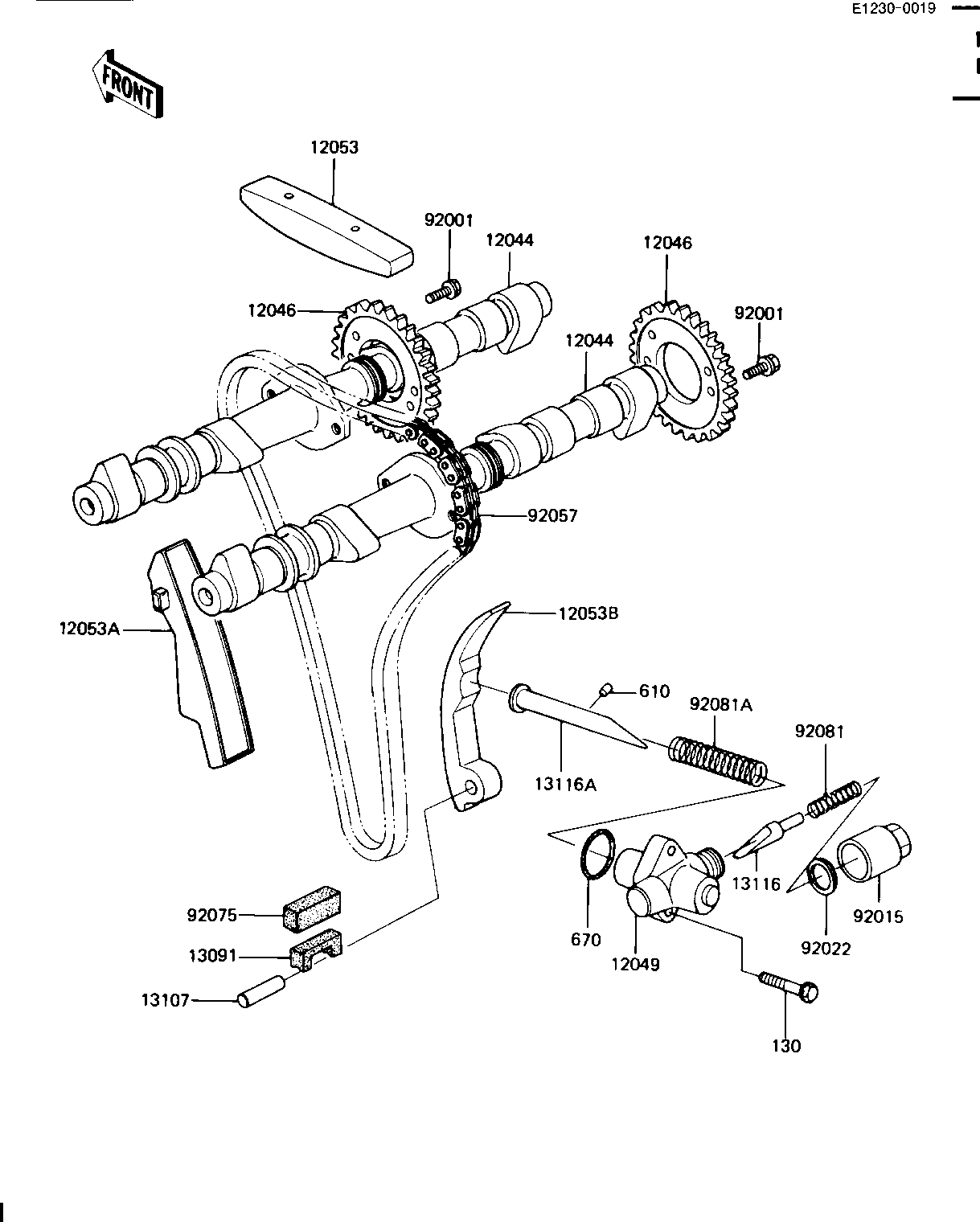

1985 LTD Shaft - CAMSHAFTS/CHAIN/TENSIONER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAMSHAFT-VALVE | 12044 | 12044-1027 | 2 | ||
SPROCKET,CAMSHAFT EXH | 12046 | 12046-1025 | 2 | ||
TENSIONER,CAM CHAIN | 12049 | 12049-1009 | 1 | ||
GUIDE,CAM CHAIN,HEAD | 12053 | 12053-1018 | 1 | ||
GUIDE-CHAIN,CAM,FR | 12053A | 12053-1048 | 1 | ||
GUIDE-CHAIN,CAM,RR | 12053B | 12053-1049 | 1 | ||
HOLDER | 13091 | 13091-1086 | 1 | ||
SHAFT,8X28 | 13107 | 13107-1020 | 1 | ||
ROD,PUSH,CAM CHAIN | 13116 | 13116-1012 | 1 | ||
ROD-PUSH,TENSIONER | 13116A | 13116-1038 | 1 | ||
BOLT,SPROCKET FITTING | 92001 | 92003-208 | 4 | ||
CAP,TENSIONER,18M/M | 92015 | 92015-1100 | 1 | ||
WASHER,18.3X24X1.4T | 92022 | 92022-1175 | 1 | ||
CHAIN,CAMSHAFT,75-010 | 92057 | 92057-1052 | 1 | ||
DAMPER | 92057 | 92075-1270 | 1 | ||
SPRING,TENSIONER | 92081 | 92081-1302 | 1 | ||
SPRING,TENSIONER | 92081A | 92081-1380 | 1 | ||
BOLT-FLANGED | 130 | 130Y0625 | 2 | ||
PIN DOWEL 4X8 | 610 | 610A0408 | 1 | ||
"O" RING,22M/M | 670 | 670E2022 | 1 |
