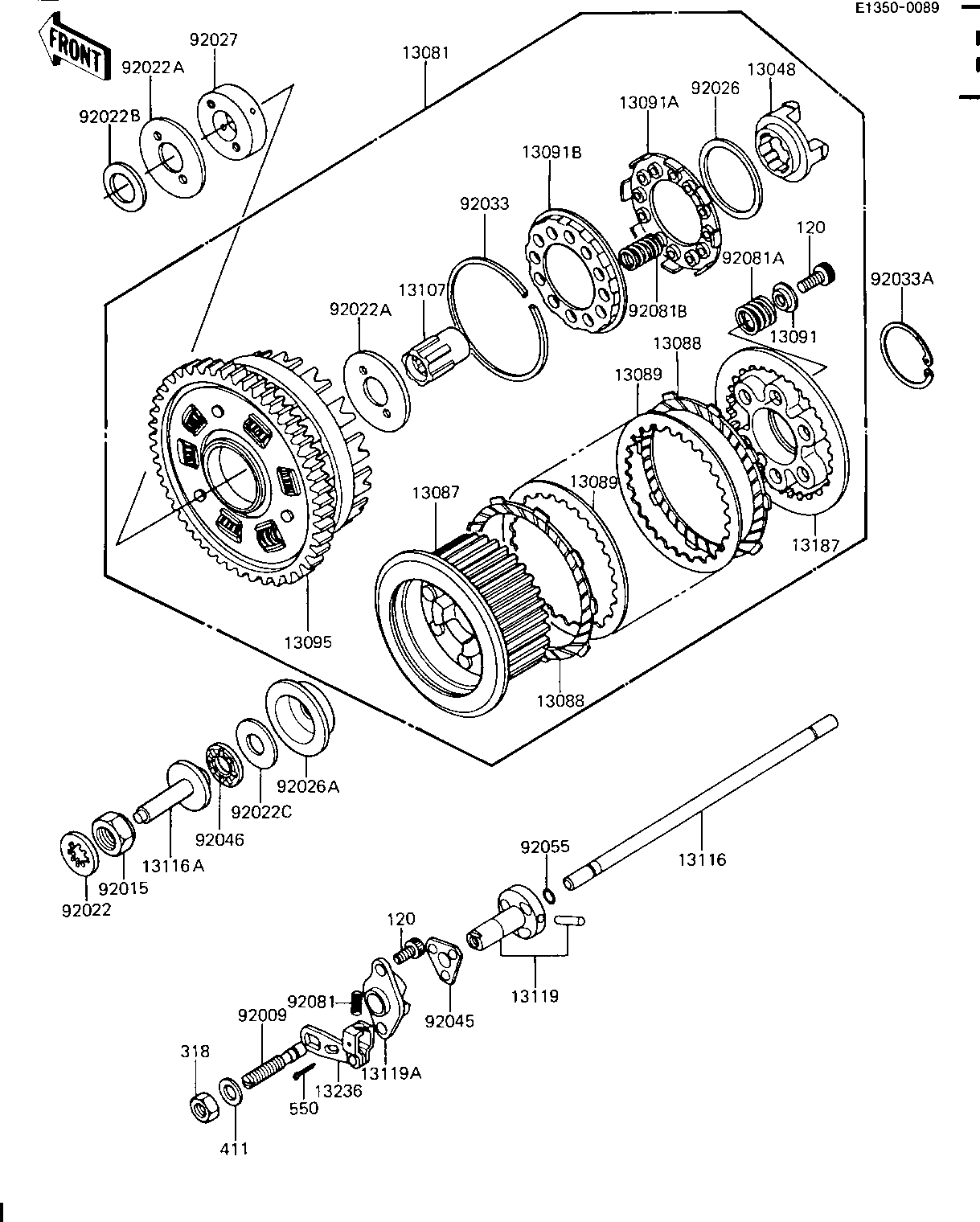

1984 LTD Shaft - CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DAMPER 13048 13048-1007 1
CLUTCH-ASSY 13081 13081-1151 1
HUB,CLUTCH 13087 13087-1009 1
PLATE-FRICTION 13088 13088-1051 9
PLATE,CLUTCH,STEEL 13089 13089-1004 8
HOLDER,CLUTCH,SPRING 13091 13091-1041 6
HOLDER,CLUTCH SPRING 13091A 13091-1042 1
HOLDER,CLUTCH SPRING 13091B 13091-1043 1
HOUSING-COMP-CLUTCH 13095 13095-1037 1
SHAFT,CLUTCH 13107 13107-1024 1
ROD,CLUTCH PUSH 13116 13116-1007 1
ROD-PUSH,CLUTCH 13116A 13116-1102 1
CAM,CLUTCH RELEASE A 13119 13119-1007 1
CAM,CLUTCH RELEASE B 13119A 13119-1008 1
PLATE,CLUTCH OPERATNG 13187 13187-1004 1
LEVER ASSY,CLUTCH REL 13236 13236-1012 1
NUT,20MM 92015 92015-1555 1
WASHER,LOCK 92022 92022-1114 1
WASHER,CLUTCH THRUST 92022A 92022-1221 2
WASHER 92022B 92022-1223 1
WASHER,15.1X29X1.0 92022C 92022-1463 1
SPACER,3.5X59X70 92026 92026-1043 1
SPACER,CLUTCH 92026A 92026-1202 1
COLLAR 92027 92027-1284 1
RING,SNAP 92033 92033-1029 1
RING-SNAP 92033A 92033-1177 1
BALL,ASSY,CLUTCH RELS 92045 92045-1023 1
BEARING-NEEDLE,AXK110 92046 92046-1052 1
"O" RING,5MM 92055 670B1505 1
SPRING-CLUTCH RELEASE 92081 92081-069 1
SPRING,CLUTCH 92081A 92081-1114 6
SPRING,CLUTCH DAMPER 92081B 92081-1115 12
UNAVAILABLE IN PRICE BOOK 120 120 0616 8
NUT 8MM 318 318B0800 1
WASHER PLAIN 8MM 411 411B0800 1
PIN COTTER 1.6X15 550 550D1615 1
