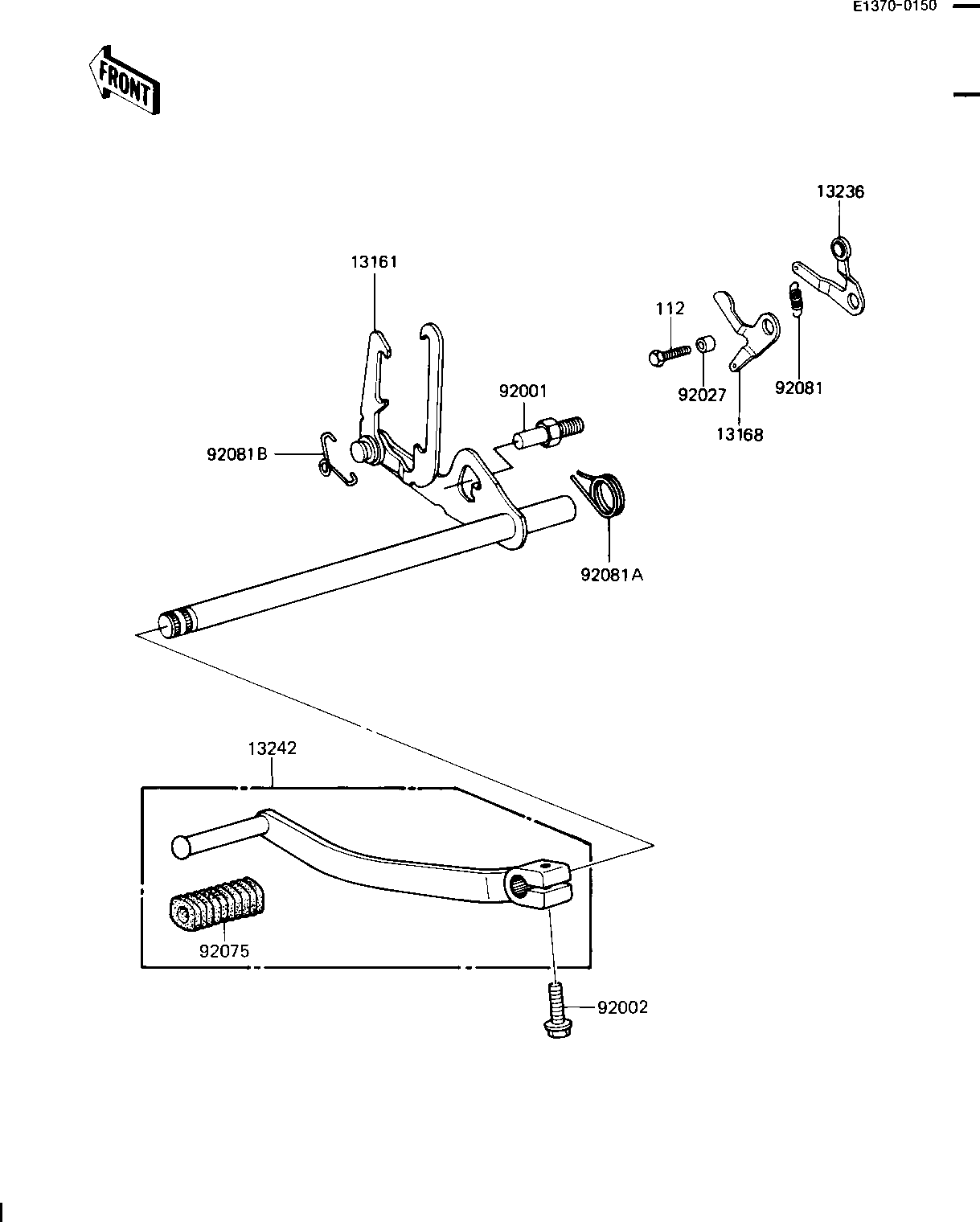

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHA 13161 13161-1023 1
LEVER,GEAR POSITIONIN 13168 13168-1083 1
LEVER-COMP,NEUTRAL PO 13236 13236-1031 1
LEVER-ASSY-CHANGE 13242 13242-1182 1
BOLT,RETURN SPRING 92001 92001-1401 1
BOLT,6X20 92002 92002-1237 1
COLLAR,GEAR POSITIONI 92027 92027-1331 1
RUBBER CHANGE PEDAL 92075 13157-004 1
SPRING,CHANGE LEVER 92081 92081-1109 1
SPRING,CHANGE PEDAL R 92081A 92081-1589 1
SPRING,KICK PAWL 92081B 92083-018 1
BOLT-UPSET,6X16 112 112G0616 1
