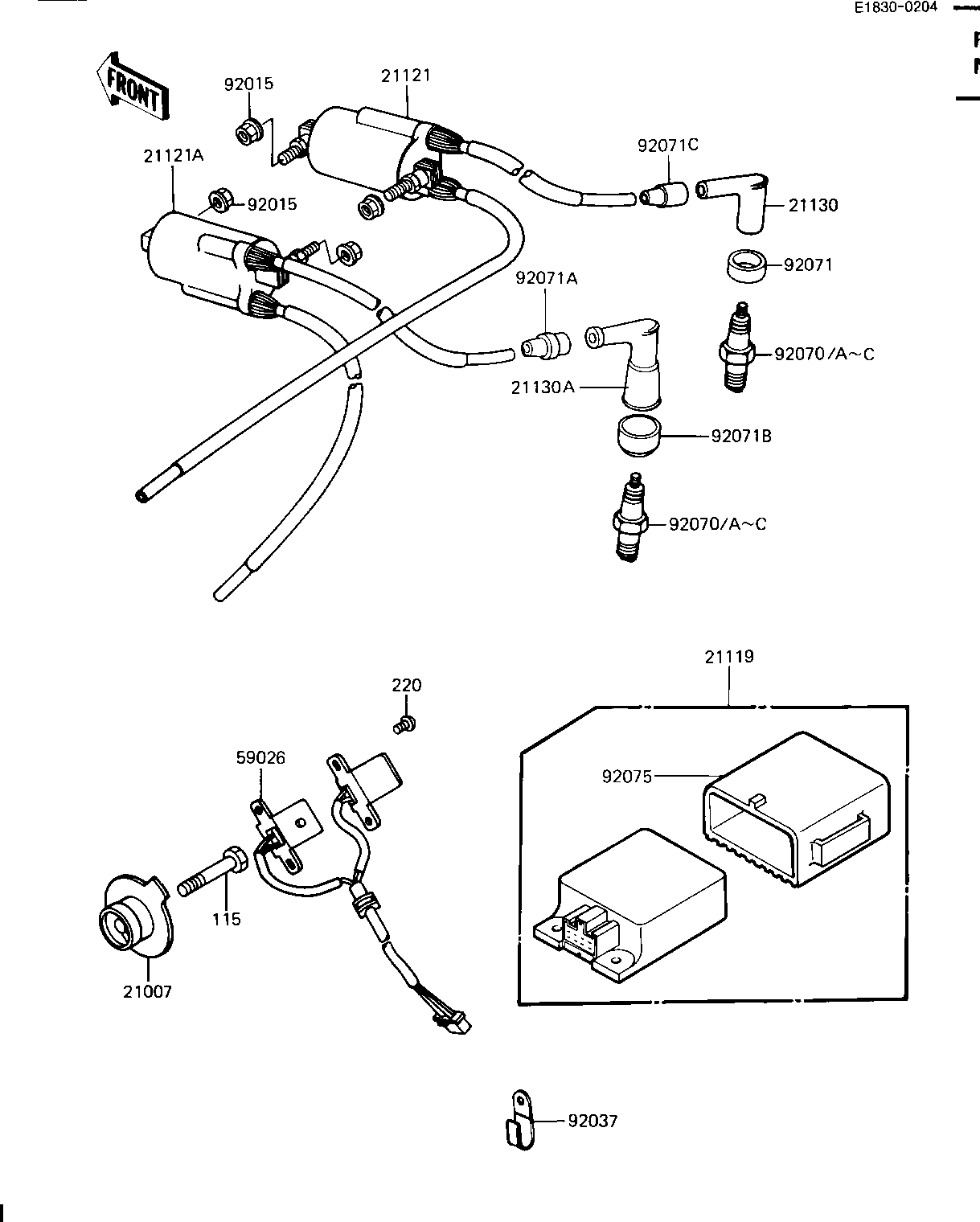

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROTOR,PULSING COIL 21007 21007-1067 1
IGNITER 21119 21119-1104 1
COIL-IGNITION 21121 21121-1038 1
COIL-IGNITION 21121A 21121-1039 1
CAP-SPARK PLUG,RTFM20 21130 21130-1007 2
CAP-SPARK PLUG 21130A 21130-1010 2
COIL-PULSING 59026 59026-1024 1
NUT-6MM 92015 92015-1078 4
CLAMP,WIRING HARNESS 92037 21126-008 5
SPARK PLUG B8ES 92070 B8ES 4 CA,US
SPARK PLUG BR8ES 92070B BR8ES 4 CA,US
GROMMET-PLUG CAP,A 92071 21131-004 2
GROMMET,HIGH TENSION 92071 21131-005 2
GROMMET,PLUG CAP 92071B 21131-006 2
GROMMET,SPARK PLG CAP 92071C 21132-005 2
DAMPER,IGNITER 92075 92075-1504 1
BOLT-SMALL-UPSET 115 115G0845 1
SCREW PAN HEAD 5X12 220 220B0512 4
