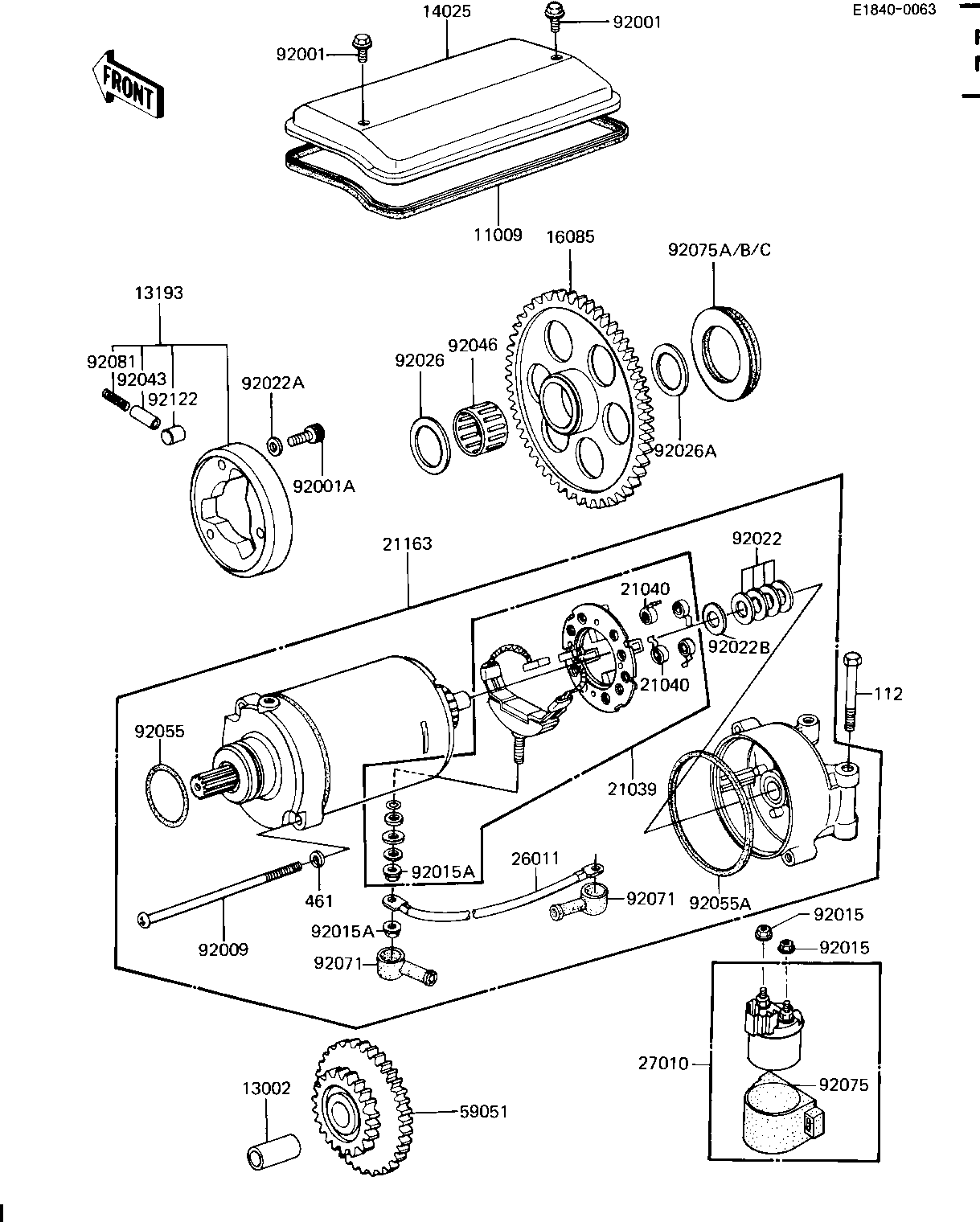

1985 LTD Shaft - STARTER MOTOR/STARTER CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,START MOTOR CV 11009 21166-001 1
PIN-PISTON 13002 13002-007 1
CLUTCH-ASSY-ONEWAY 13193 13193-1011 1
COVER 14025 14025-1245 1
GEAR,STARTING CLUTCH 16085 16085-1012 1
BRUSH,CARBON 21039 21039-1053 1
SPRING-BRUSH 21040 21040-1003 4
STARTER-ELECTRIC 21163 21163-1143 1
WIRE-LEAD,STARTER MTR 26011 26011-1251 1
SWITCH,MAGNETIC 27010 27010-1235 1
GEAR,STARTING MOTOR 59051 21167-002 1
BOLT,6X10 92001 92001-1151 2
BOLT 92001A 120P0816 3
SCREW,PAN HEAD,6X110 92009 21015-005 2
NUT-6MM 92015 92015-1078 2
NUT-6MM 92015A 92015-1078 2
WASHER,THRUST,0.2T 92022 21025-011 AR
WASHER,PLAIN 92022A 92022-1108 3
WASHER,THRUST,0.8T 92022B 92022-1132 1
SPACER 92026 92026-1031 1
SPACER 92026A 92026-1033 1
PIN 92043 92043-087 3
BEARING,NEEDLE,K25302 92046 92046-1022 1
"0" RING,STARTING MTR 92055 21027-004 1
"0" RING,STARTER MOTR 92055A 92055-1086 2
GROMMET,CORD 92071 21017-017 2
DAMPER MAG SWITCH SHK 92075 21064-002 1
DAMPER RUBBER,6.3T 92075A 92075-1129 1
DAMPER RUBBER,7.3T 92075B 92075-1130 1
DAMPER RUBBER,8.3T 92075C 92075-1131 1
SPRING 92081 92081-110 3
PIN 92122 92122-001 3
BOLT,EXCLUSIVE 112 92001-1456 2
WASHER SPRING 5MM 461 461F0500 2
