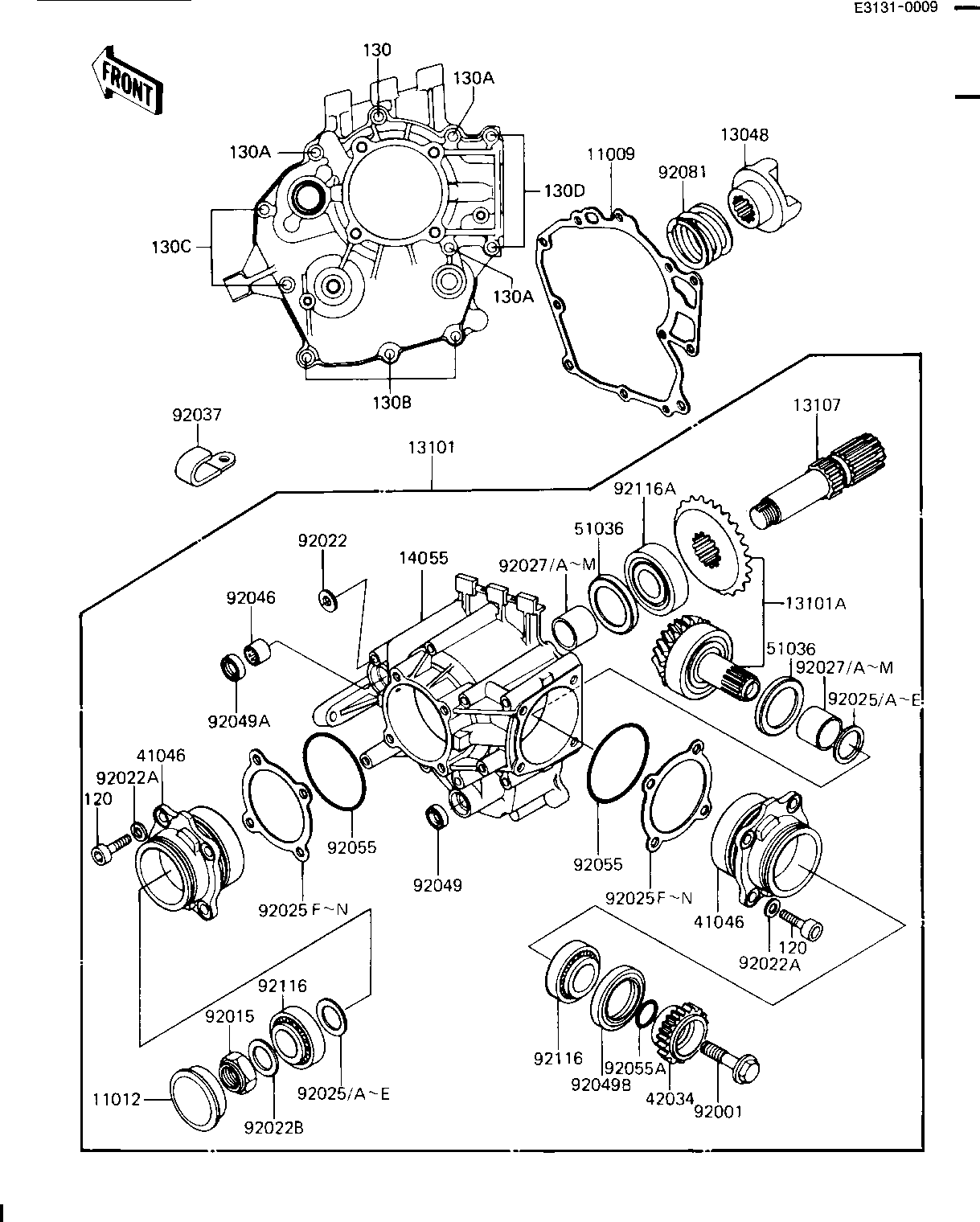

1985 LTD Shaft - FRONT BEVEL GEARS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASCKET,FRONT BEVEL 11009 11009-1112 1
CAP 11012 11012-1071 1
CAM,DAMPER 13048 13048-1005 1
GEAR-ASSY,FRONT BEVEL 13101 13101-1014 1
GEAR SET,FRONT BEVEL 13101A 13101-5027 1
SHAFT,FRONT BEVEL GER 13107 13107-1014 1
CASE,FRONT BEVEL GEAR 14055 14055-1003 1
HOUSING-BEARING,F.BVL 41046 41046-1011 2
COUPLING,FR DRIVEN 42034 42034-1091 1
CUP 51036 51036-1002 2
BOLT,12X42 92001 92001-1169 1
NUT,20M/M 92015 92015-1065 1
WASHER OIL PUMP BANJO 92022 92022-077 1
WASHER,PLAIN 92022A 92022-1028 8
WASHER,PLAIN,2.3X20.3 92022B 92022-1116 1
SHIM,1.70T 92025 92025-1072 AR
SHIM,1.72T 92025A 92025-1073 AR
SHIM,1.74T 92025B 92025-1074 AR
SHIM,1.76T 92025C 92025-1075 AR
SHIM,1.78T 92025D 92025-1076 AR
SHIM,1.80T 92025E 92025-1077 AR
SHIM,0.15T 92025F 92025-1078 AR
SHIM,0.50T 92025G 92025-1079 AR
SHIM,0.60T 92025H 92025-1080 AR
SHIM,0.70T 92025I 92025-1081 AR
SHIM,0.80T 92025J 92025-1082 AR
SHIM,0.90T 92025K 92025-1083 AR
SHIM,1.00T 92025L 92025-1084 AR
SHIM,1.20T 92025M 92025-1085 AR
SHIM,0.10T 92025N 92025-1115 AR
COLLAR,L=22.8M/M 92027 92027-1152 AR
COLLAR,L=22.9M/M 92027A 92027-1153 AR
COLLAR,L=23.0M/M 92027B 92027-1154 AR
COLLAR,L=23.1M/M 92027C 92027-1155 AR
COLLAR,L=23.2M/M 92027D 92027-1156 AR
COLLAR,L=23.3M/M 92027E 92027-1157 AR
COLLAR,L=23.4M/M 92027F 92027-1158 AR
COLLAR,L=23.5M/M 92027G 92027-1159 AR
COLLAR,L=23.6M/M 92027H 92027-1160 AR
COLLAR,L=23.7M/M 92027I 92027-1161 AR
COLLAR,L=23.8M/M 92027J 92027-1162 AR
COLLAR,L=23.9M/M 92027K 92027-1163 AR
COLLAR,L=24.0M/M 92027L 92027-1164 AR
COLLAR,L=24.1M/M 92027M 92027-1165 AR
CLAMP,WIRING HARNESS 92037 21126-008 1
BRG,N,7E-HK1412 92046 92046-037 1
OIL SEAL SB12205 92049 92049-004 1
OIL SEAL,TC14244.8 92049A 92049-1037 1
OIL SEAL,TC35527 92049B 92049-1038 1
"0" RING,65MM 92055 671B2565 2
"0" RING,I.D=18.64MM 92055A 92055-1044 1
SPRING,CAM DAMPER 92081 92081-1117 1
BEARING 92116 92116-1003 2
BRG,ROLLER,4T-30305 92116A 92116-1006 1
BOLT,SOCKET,8X30 120 120P0830 8
BOLT-FLANGED,6X100 130 130G06100 1
BOLT-FLANGED,6X115 130A 130G06115 3
BOLT,FLANGED,6X55 130B 130G0655 3
BOLT-FLANGED,6X70 130C 130G0670 2
BOLT-FLANGED,6X95 130D 130G0695 2
