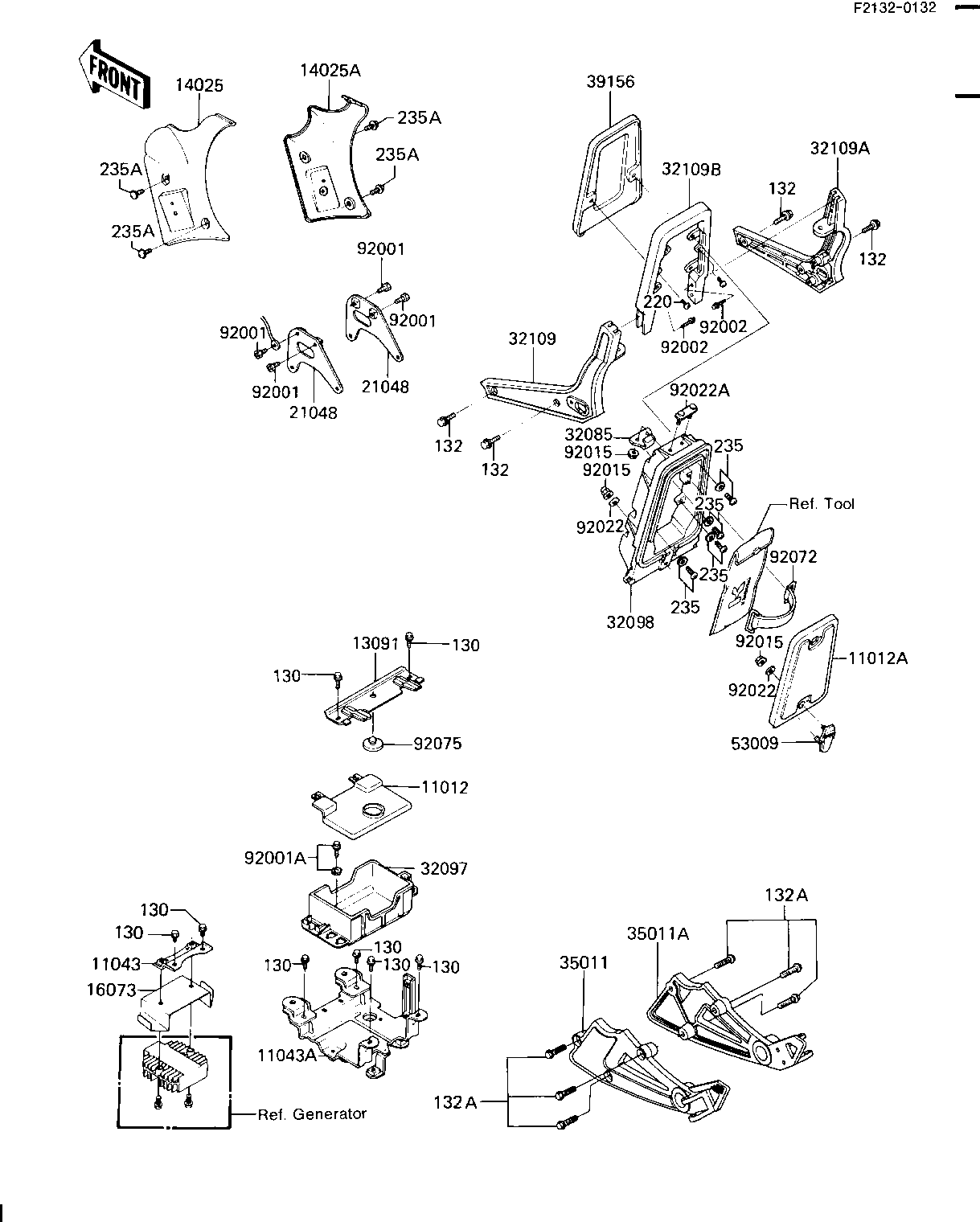

1985 LTD Shaft - BATTERY CASE/TOOL CASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1383 1
CAP,TOOL CASE 11012A 11012-1384 1
BRACKET,REGULATOR 11043 11043-1546 1
BRACKET,BATTERY CASE 11043A 11043-1547 1
HOLDER 13091 13091-1291 1
COVER,FUEL TANK.LH 14025 14025-1844 1
COVER,FUEL TANK,RH 14025A 14025-1845 1
INSULATOR,REGULATOR 16073 16073-1052 1
PLATE,IGNITION COIL 21048 21048-1001 2
STOPPER 32085 32085-1184 1
CASE-BATTERY 32097 32097-1106 1
CASE-TOOL 32098 32098-1055 1
GRIP-FRAME,LOW,LH 32109 32109-1110 1
GRIP-FRAME,LOW,RH 32109A 32109-1111 1
GRIP-FRAME 32109B 32109-1112 1
STAY,MUFFLER,LH 35011 35011-1218 1
STAY,MUFFLER,RH 35011A 35011-1219 1
PAD 39156 39156-1052 1
HINGE,SIDEBAG 53009 53009-1039 1
BOLT,HEX HEAD,6MM 92001 92001-137 4
BOLT,W/SP,6X14 92001A 92001-1862 1
BOLT 92002 92002-1352 4
NUT,LOCK 5MM 92015 92015-1263 4
WASHER PL 5.5X20X1.2 92022 92022-104 2
WASHER 92022A 92022-1522 1
BAND-SPARK PLUG COVER 92072 92072-053 1
DAMPER RUBBER 92075 92075-078 1
BOLT,FLANGED,6X10 130 130B0610 8
BOLT-FLANGED-SMALL 132 132J0820 4
BOLT-FLANGED-SMALL 132A 132J0830 6
SCREW PAN HEAD 5X8 220 220B0508 2
SCREW-PAN-WP-CROS 235 235B0510 4
SCREW-PAN-WP-CROS 235A 235C0614 4
