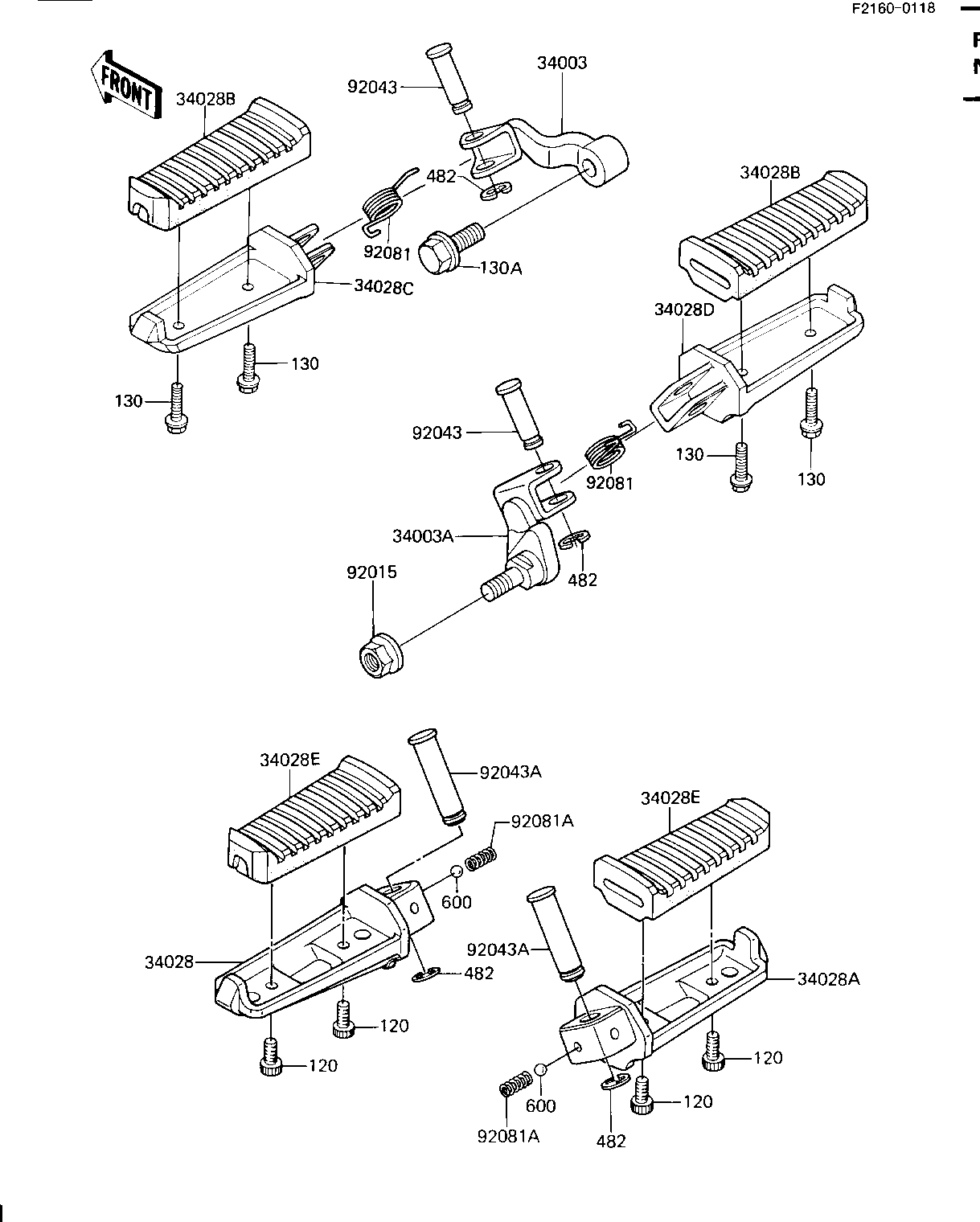

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,FR,LH 34003 34003-1213 1
HOLDER-STEP,FR,RH 34003A 34003-1214 1
STEP,RR,LH 34028 34028-1061 1
STEP,RR,RH 34028A 34028-1062 1
STEP,FR,RUBBER 34028B 34028-1132 2
STEP,FR,LH 34028C 34028-1133 1
STEP,FR,RH 34028D 34028-1134 1
STEP,RR,RUBBER 34028E 34028-1135 2
NUT-12MM 92015 92015-1156 1
PIN,12X37 92043 92043-1144 2
PIN,12X42.5 92043A 92043-1145 2
SPRING,STEP RETURN,RH 92081 92144-1568 2
SPRING,COIL,STEP,RR 92081A 92081-1588 2
BOLT-SOCKET 120 120Z0514 4
BOLT-FLANGED 130 130B0510 4
BOLT-FLANGED 130A 130C1235 1
CIR CLIP 482 482K0100 4
BALL STEEL 1/4' 600 600A0800 2
