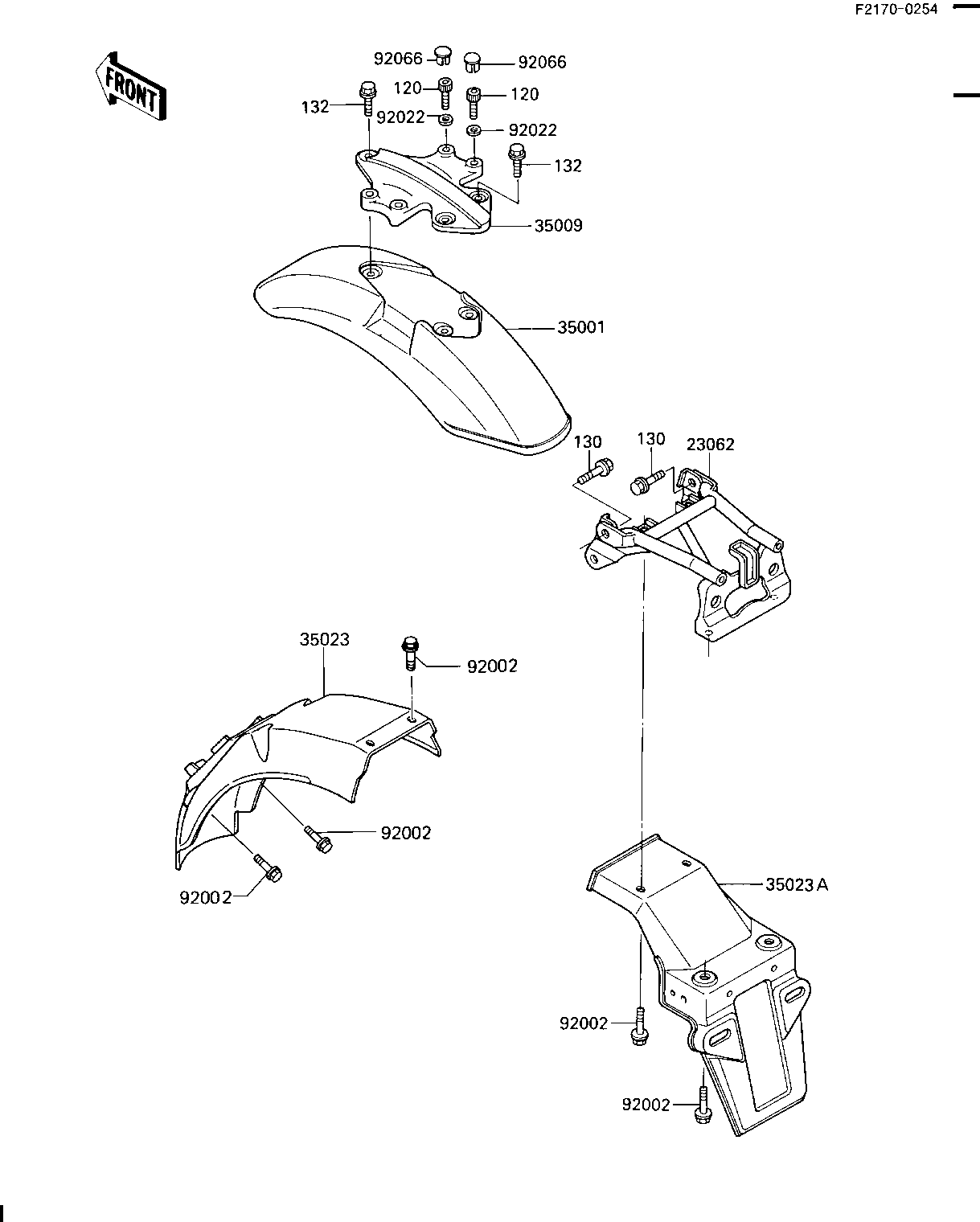

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-COMP,RR FENDE 23062 23062-1056 1
FENDER-ASSY-FRONT,CR 35001 35001-1104 1
BRACE,FENDER 35009 35009-1055 1
FENDER-REAR,FR 35023 35023-1108 1
FENDER-REAR,RR,BLACK 35023A 35023-1109-6Z 1
BOLT,6X16 92002 92001-1950 8
WASHER,6.5X13X2.0 92022 92022-1523 4
PLUG,BRACE 92066 92066-1168 4
BOLT,SOCKET,6X16 120 120P0616 4
BOLT-FLANGED 130 130C0814 4
BOLT-FLANGED-SMALL 132 132E0616 3
