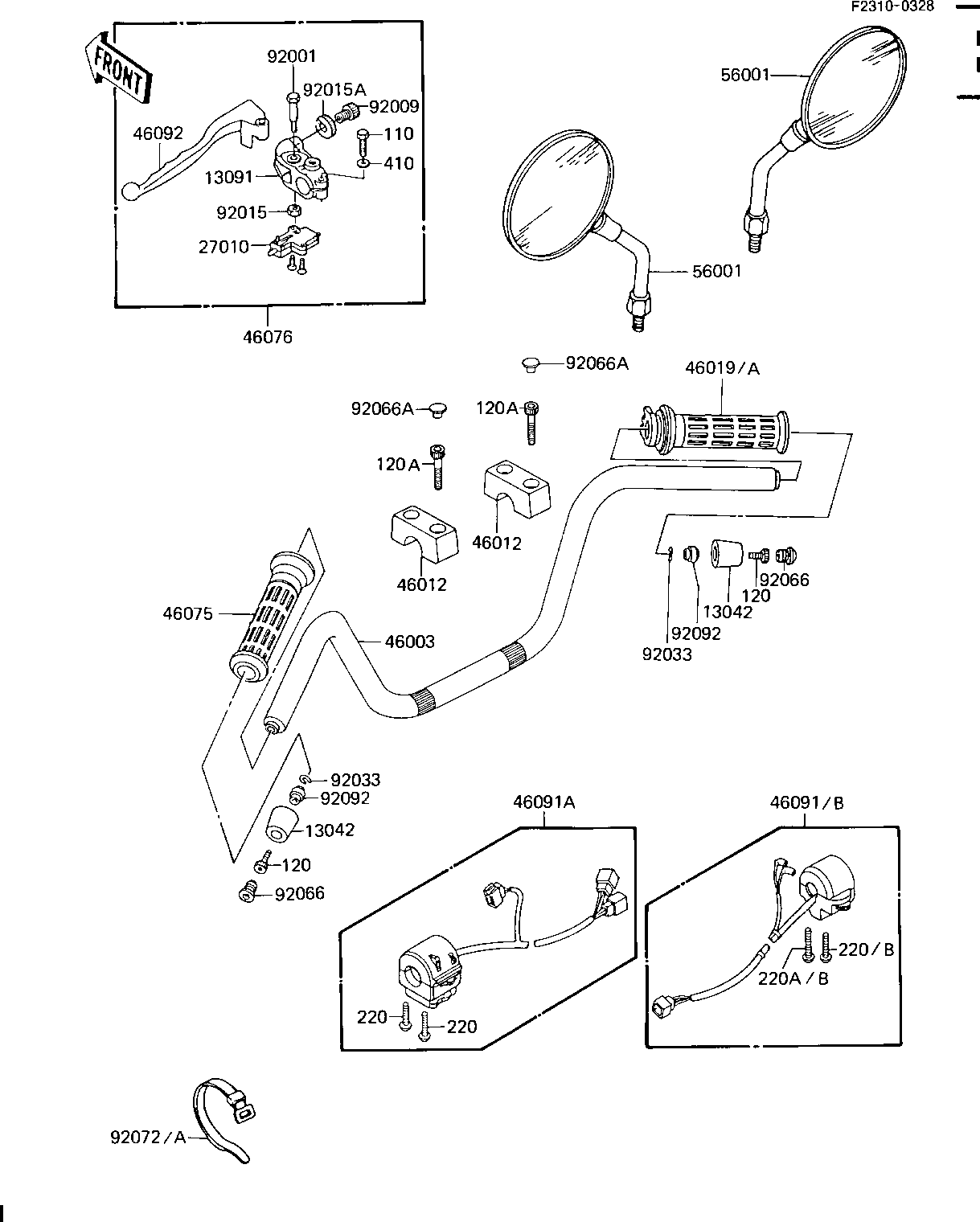

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WEIGHT,HANDLE | 13042 | 13042-1006 | 2 | ||
HOLDER,CLUTCH LEVER | 13091 | 13091-1272 | 1 | ||
SWITCH,CLUTCH | 27010 | 27010-1094 | 1 | ||
HANDLE | 46003 | 46003-1166 | 1 | ||
HOLDER-HANDLE | 46012 | 46012-1112 | 2 | ||
GRIP-ASSY,THROTTLE | 46019A | 46019-1059 | 1 | ||
GRIP,LH | 46075 | 46075-1028 | 1 | ||
LEVER-ASSY-GRIP,CLUTC | 46076 | 46076-1105 | 1 | ||
HOUSING-ASSY-CONTROL, | 46091A | 46091-1349 | 1 | ||
HOUSING-ASSY-CONTROL, | 46091B | 46091-1349 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1103 | 1 | ||
MIRROR-ASSY | 56001 | 56001-1340 | 2 | ||
BOLT,CLUTCH LEVER,BLA | 92001 | 92001-1548 | 1 | ||
SCREW,CABLE ADJUST,8 | 92009 | 92009-1134 | 1 | ||
NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
NUT,CABLE ADJUST LOCK | 92015A | 92015-1197 | 1 | ||
RING-SNAP,OD=22.2 | 92033 | 92033-1102 | 2 | ||
PLUG,HANDLE | 92066 | 92066-1124 | 2 | ||
PLUG,HANDLE HOLDER | 92066A | 92066-1216 | 4 | ||
BAND,MIDDLE | 92072 | 92072-031 | 4 | ||
BAND,LONG | 92072A | 92072-032 | 1 | ||
BUSHING-RUBBER,SHOCKA | 92092 | 92092-1016 | 2 | ||
BOLT,6X22,BLACK | 110 | 110C0622 | 1 | ||
BOLT,SOCKET,8X25 | 120 | 120P0825 | 2 | ||
BOLT-SOCKET,8X30,BLAC | 120A | 120S0830 | 4 | ||
SCREW-PAN-CROS | 220 | 220B0535 | 2 | ||
SCREW-PAN-CROS | 220B | 220C0540 | 2 | ||
WASHER PLAIN | 410 | 410F0600 | 1 |
