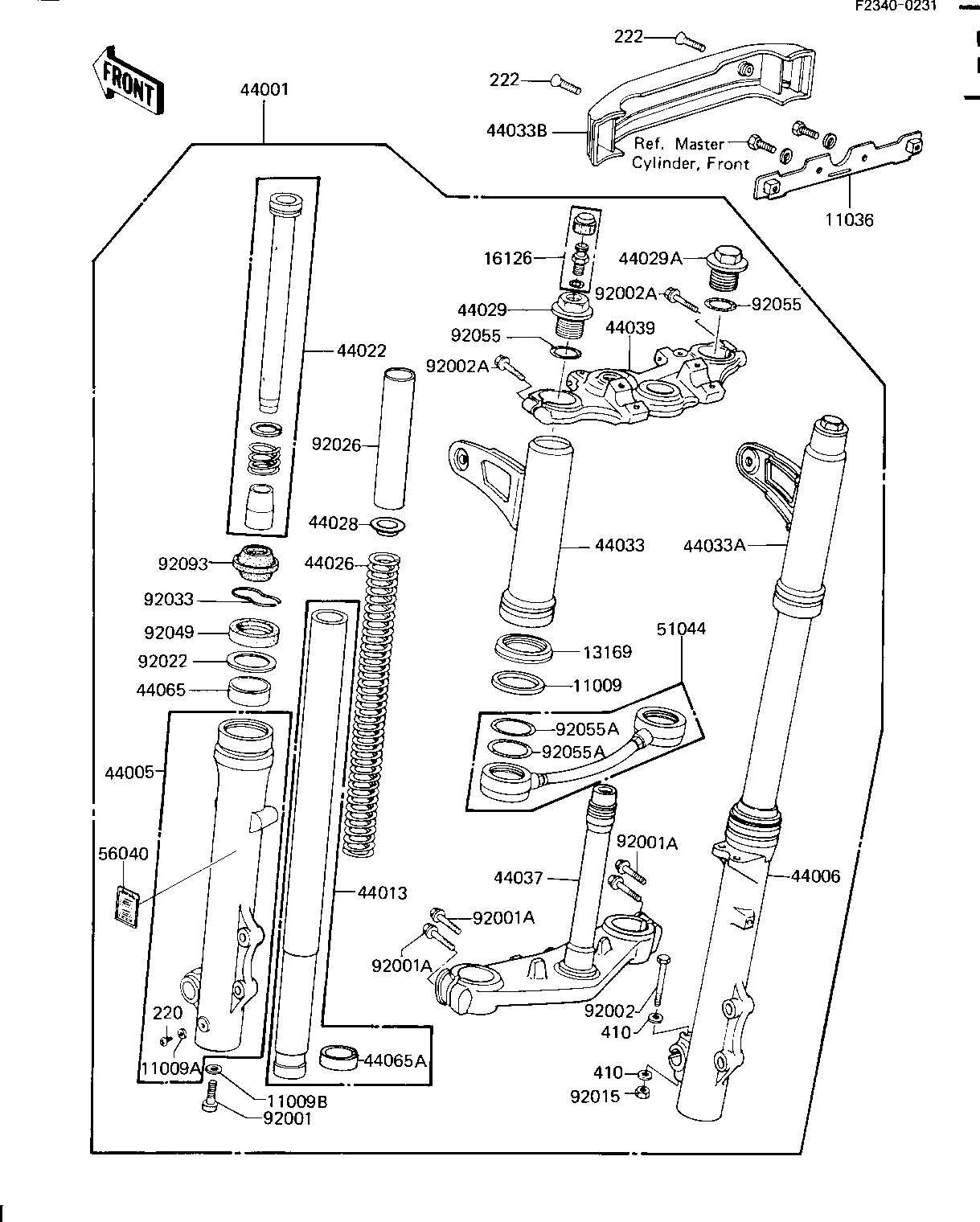

1985 LTD Shaft - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK COVER 11009 11009-1015 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
GASKET,FORK CYLINDER 11009B 44045-057 2
BRACKET-A,FORK COVER 11036 11036-1320 1
PLATE,FORK COVER,LWR 13169 13169-1499 2
VALVE AIR 16126 16126-1052 1
FORK-FRONT 44001 44001-1535 1
PIPE-LEFT FORK OUTER 44005 44005-1218 1
PIPE-RIGHT FORK OUTER 44006 44006-1218 1
PIPE-FORK INNER 44013 44013-1220 2
CYLINDER-FORK 44022 44022-1168 2
SPRING-FRONT FORK 44026 44026-1278 2
GUIDE,FORK SPRING 44028 44028-1004 2
SEAT-FORK SPRING,LH 44029 44029-1044 2
SEAT-FORK SPRING,RH 44029A 44029-1045 1
COVER-FORK,LH 44033 44033-1153 1
COVER-FORK,RH 44033A 44033-1154 1
COVER-FORK,KAWASAKI 44033B 44033-1157 1
HOLDER-FORK UNDER 44037 44037-1109 1
HOLDER-FORK UPPER 44039 44039-1105 1
BUSHING-FRONT FORK,OU 44065 44065-1091 2
BUSHING,FORK PIPE 44065A 92028-1126 2
TUBE-ASSY 51044 51044-1060 1
LABEL-WARNING,FRONT F 56040 56040-1110 1
BOLT-FORK CYLINDER 92001 44041-040 2
BOLT,8X40 92001A 92001-1188 4
BOLT,8X55 92002 92002-1160 1
BOLT,FLANGED,8X45 92002A 92002-1288 2
NUT,LOCK,8MM 92015 92015-1390 1
WASHER,FORK OUT PIPE 92022 92022-1262 2
SPACER 92026 92026-1234 2
SNAP RING,FORK OUTER 92033 92033-1047 2
SEAL-OIL,FORK 92049 92049-1178 2
"0" RING,FORK TOP 92055 92055-1051 2
RING-O,ROD 92055A 92055-1369 4
SEAL,FORK 92093 92093-1162 2
SCREW PAN HEAD 4X8 220 220E0408 2
SCREW-CSK-RD-CROS 222 222C0518 2
WASHER PLAIN 8MM 410 410D0800 2
