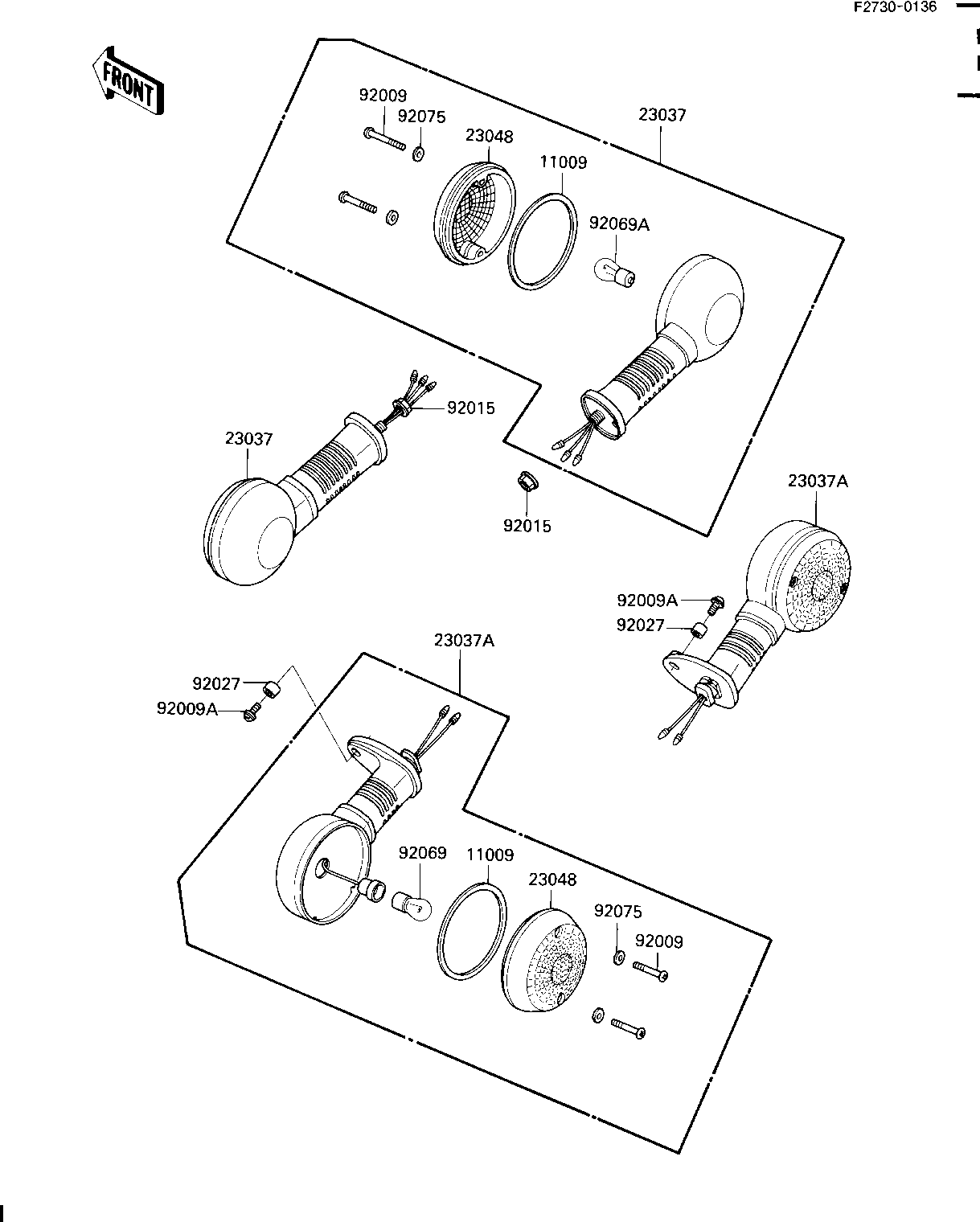

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,SIGNAL LAMP 11009 11009-1413 4
LAMP-ASSY-SIGNAL,FR 23037 23037-1207 2
LAMP-ASSY-SIGNAL,RR 23037A 23037-1208 2
LENS-SIGNAL LAMP 23048 23048-1066 4
SCREW,TAPPING,4X25 92009 92009-1069 8
SCREW,6X14 92009A 92009-1288 2
NUT,FLANGED,10MM 92015 92015-1428 2
COLLAR 92027 92027-103 2
BULB 12V 32CP 92069 92069-055 2
BULB,12V 23/8W 92069A 92069-060 2
WASHER-PLAIN,4MM 92075 23058-002 8
