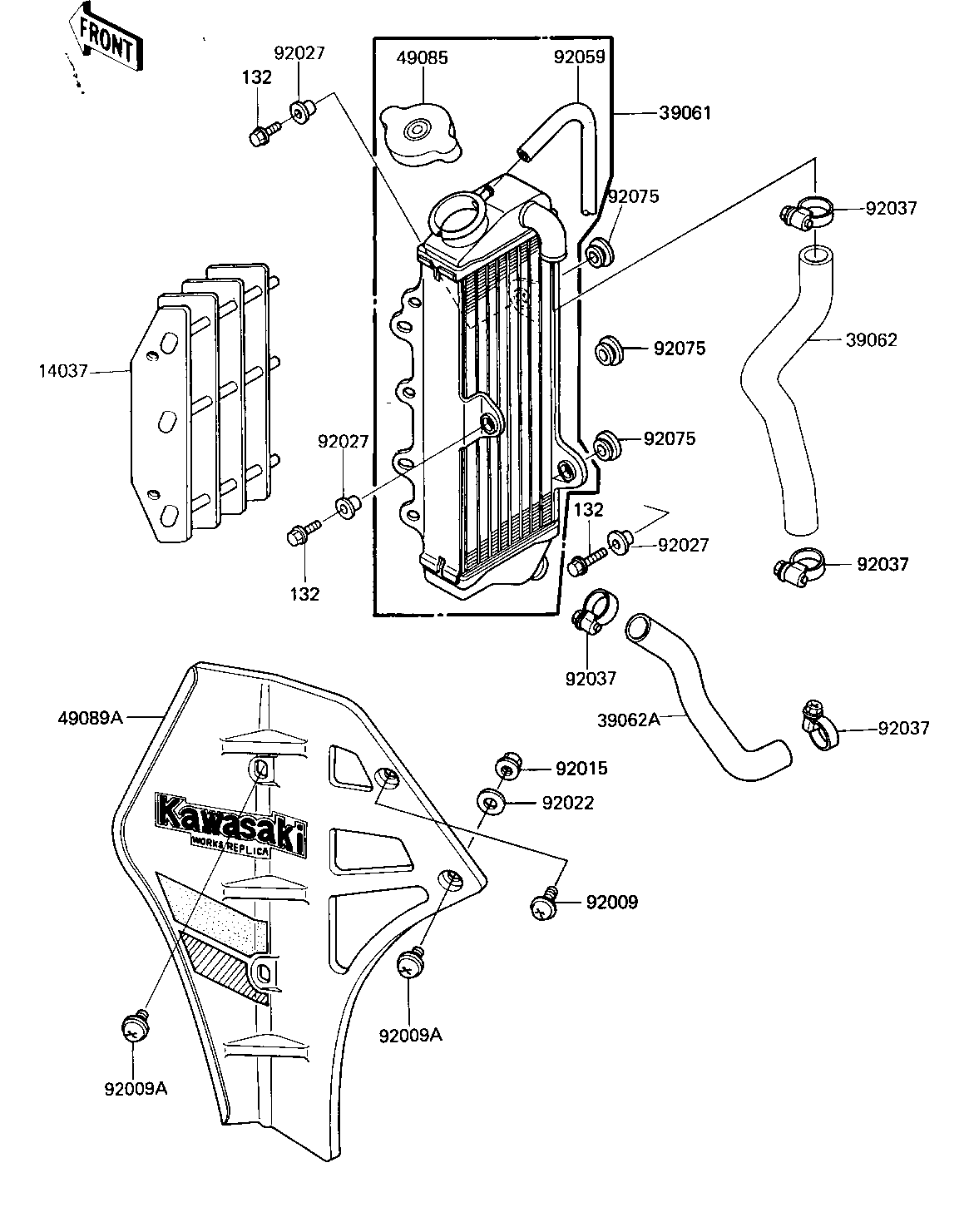

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREEN,RADIATOR 14037 14037-1053 1
EXCHANGER-ASSY-HEAT 39061 39061-1056 1
HOSE-COOLING,RADIATOR 39062 39062-1120 1
HOSE-COOLING,RADIATOR 39062A 39062-1129 1
CAP-ASSY-PRESSURE 49085 49085-1003 1
SHROUD-ENGINE,L.GREEN 49089A 49089-5003-6W 1
SCREW,6X10 92009 92009-1286 1
SCREW,6X14 92009A 92009-1287 3
NUT-6MM 92015 92015-1078 1
WASHER,6.5X18.5X2 92022 92022-1462 1
COLLAR,RADIATOR GUARD 92027 92027-1183 3
CLAMP,COOLING HOSE 92037 92037-1589 4
TUBE,5X9X800 92059 92059-1383 1
DAMPER,RADIATOR 92075 92075-1352 3
BOLT-FLANGED-SMALL 132 132G0625 3
