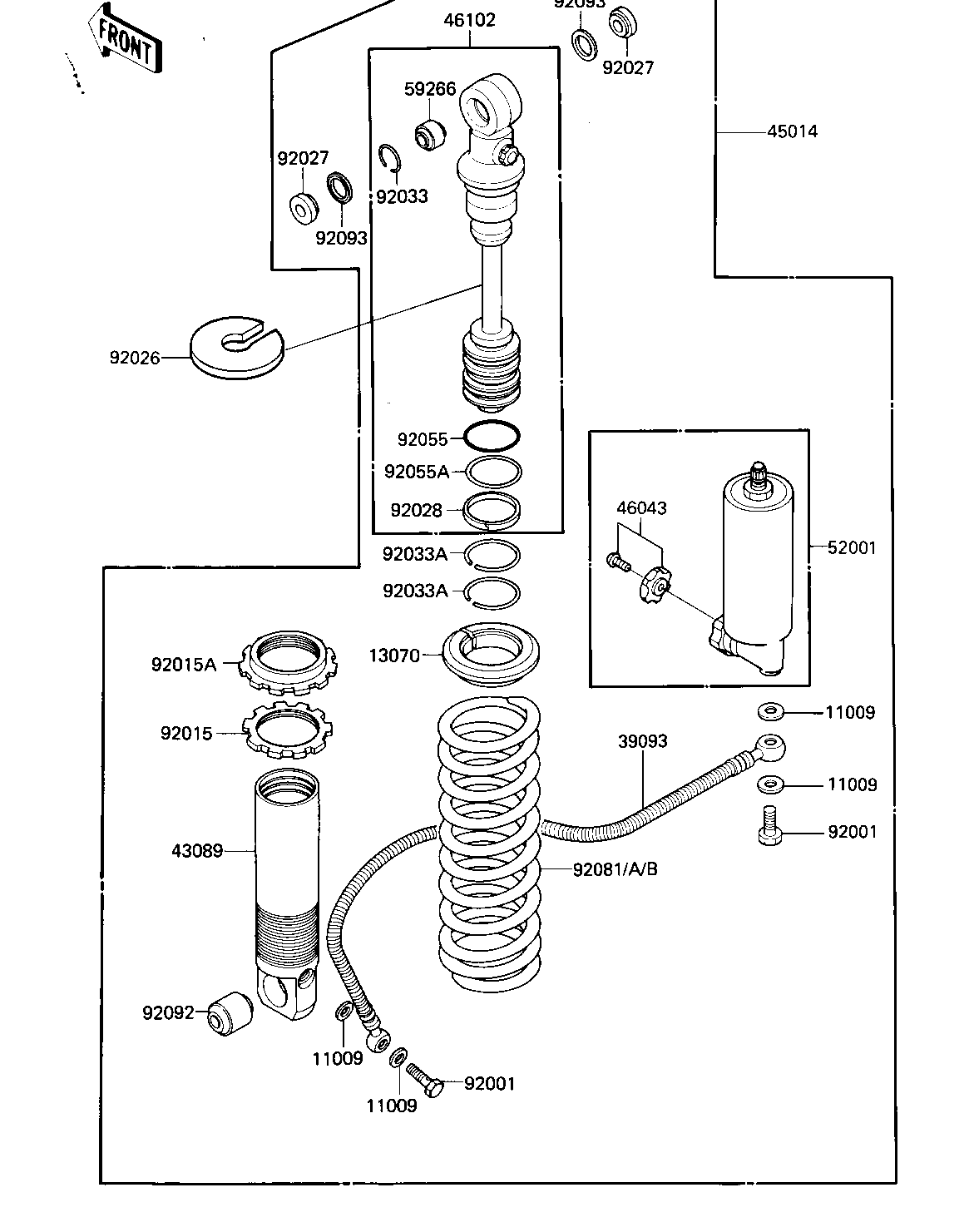

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 44045-057 4
GUIDE,SPRING 13070 13070-1075 1
PIPE-COMP-SUSP 39093 39093-1105 1
CYLINDER-SHOCKABSORBE 43089 43089-1105 1
SHOCKABSORBER 45014 45014-1301 1
KNOB-ASSY,OIL TANK 46043 46043-1053 1
ROD,SHOCKABSORBER 46102 46102-1135 1
TANK-OIL,SHOCKABSORBE 52001 52001-1058 1
JOINT-BALL,REAR SHOCK 59266 59266-1053 1
BOLT,PIPE-COMP-SUSP 92001 92001-1752 2
NUT,SPRING ADJUST LOC 92015 92015-1238 1
NUT,SPRING ADJUST 92015A 92015-1239 1
SPACER 92026 92026-1253 1
COLLAR,SHOCKABSORBER 92027 92027-1871 2
BUSHING,ROD 92028 92028-1288 1
RING-SNAP,REARSHOCK 92033 92033-1090 1
RING-SNAP,SHOCKABSORB 92033A 92033-1194 2
RING-O,ROD 92055 92055-1181 1
RING-O,ROD 92055A 92055-1234 1
SPRING,SHOCKABSORBER, 92081 92081-1798 1
SPRING,SHOCKABSORBER, 92081A 92081-1878 1
SPRING,SHOCKABSORBER, 92081B 92081-1880 1
BUSHING-RUBBER,SHOCKA 92092 92092-1054 1
SEAL,REAR SHOCK 92093 92093-1183 2
