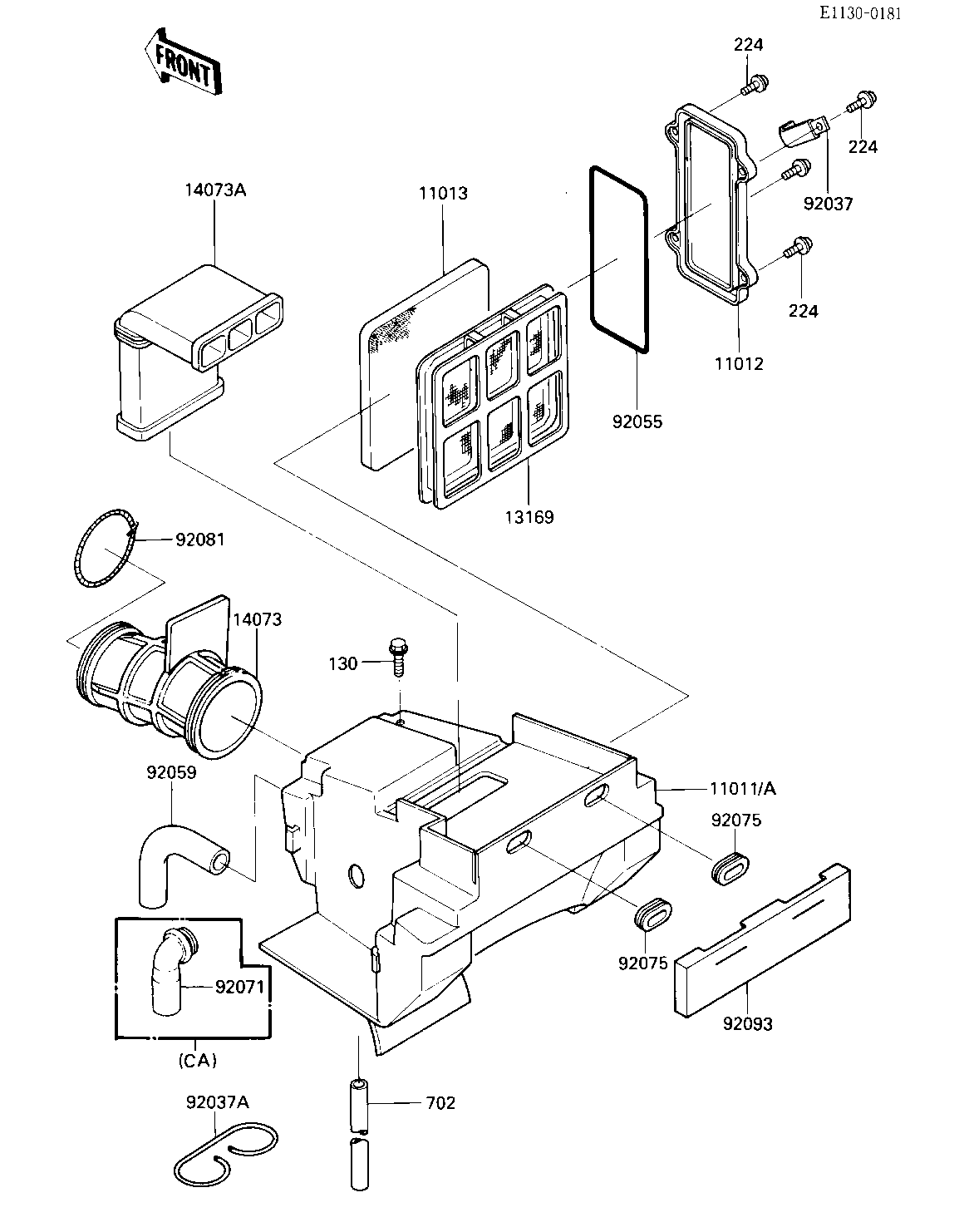

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11011 11010-5073 1 CN,US
FILTER-ASSY-AIR 11011A 11010-5074 1 CA
CAP,ELEMENT 11012 11012-1661 1
ELEMENT-AIR FILTER 11013 11013-1117 1
PLATE,ELEMENT 13169 13169-1851 1
DUCT,CARBURETOR 14073 14073-1184 1
DUCT,INTAKE 14073A 14073-1185 1
CLAMP,WIRING HARNESS 92037 92037-1069 1
CLAMP,MAGNETO LEAD 92037A 92037-1209 1
RING-O,AIR FILTER 92055 92055-1254 1
TUBE,BREATHER 92059 92059-1482 1
GROMMET,AIR FILTER 92071 92071-1114 1 CA
DAMPER,AIR FILTER 92075 92075-1513 2
SPRING 92081 92081-1177 1
SEAL 92093 92093-1187 1
BOLT-FLANGED 130 130Y0612 1
SCREW-PAN-WP-CROS 224 224C0614 4
TUBE-RUBBER 702 702A04300 1
