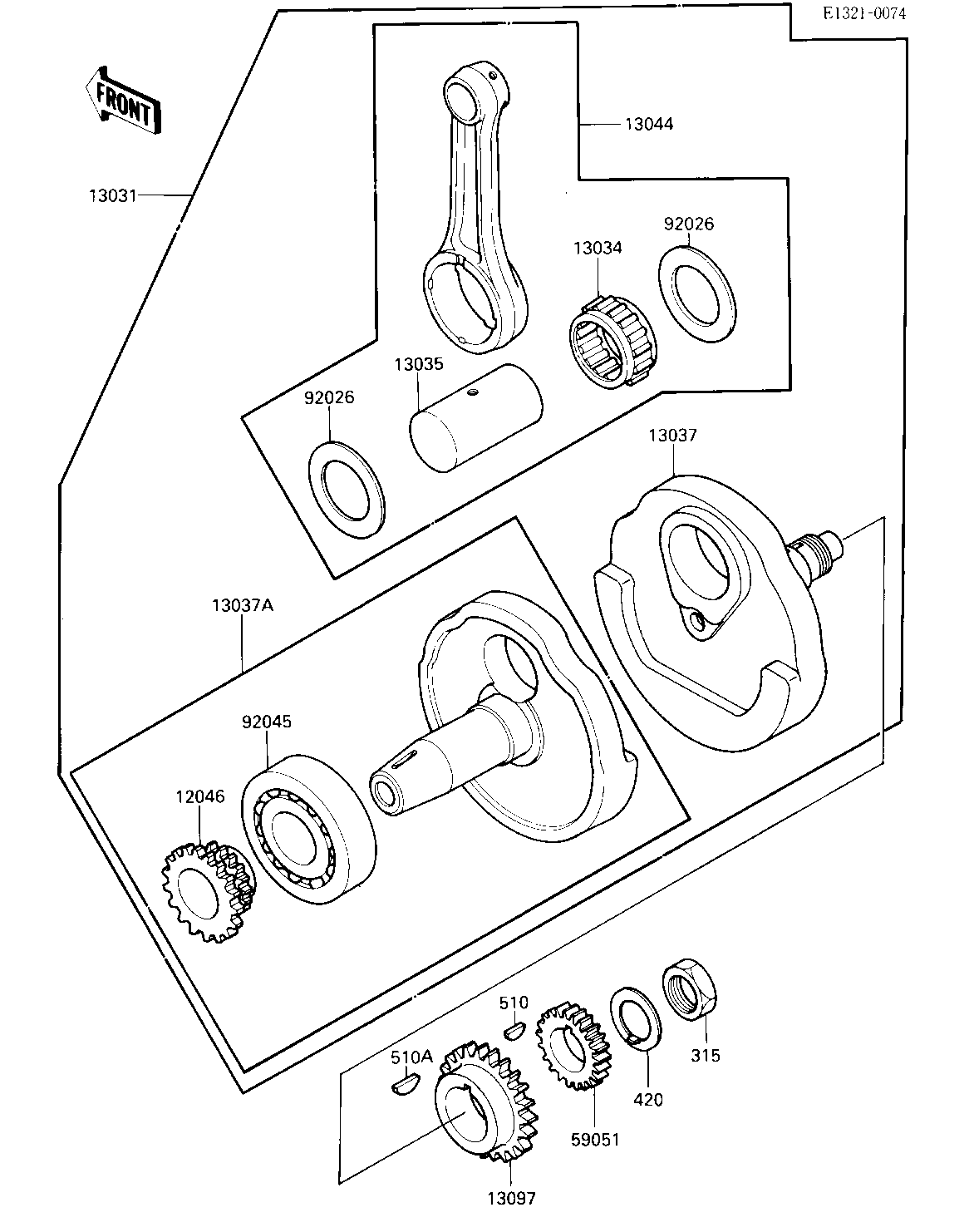

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,CAM&BALANCER 12046 12046-1064 1
CRANKSHAFT-COMP 13031 13031-1281 1
BEARING-BIG END,PK32X 13034 13034-1061 1
PIN-CRANK 13035 13035-1057 1
CRANKSHAFT,RH 13037 13037-1226 1
CRANKSHAFT 13037A 13037-5040 1
SET-CONNECTING ROD 13044 13044-5075 1
GEAR-PRIMARY SPUR,23T 13097 13097-1118 1
GEAR-SPUR,OIL PUMP,18 59051 59051-1122 1
SPACER,32X50.5X1.2 92026 92026-1232 2
BEARING,BALL,#6306 92045 92045-037 1
NUT 16MM 315 315B1600 1
WASHER,LOCK,16M/M 420 420B1611 1
WOODRUFF KEY 510 510A3100 1
WOODRUFF KEY 510A 510A5100 1
