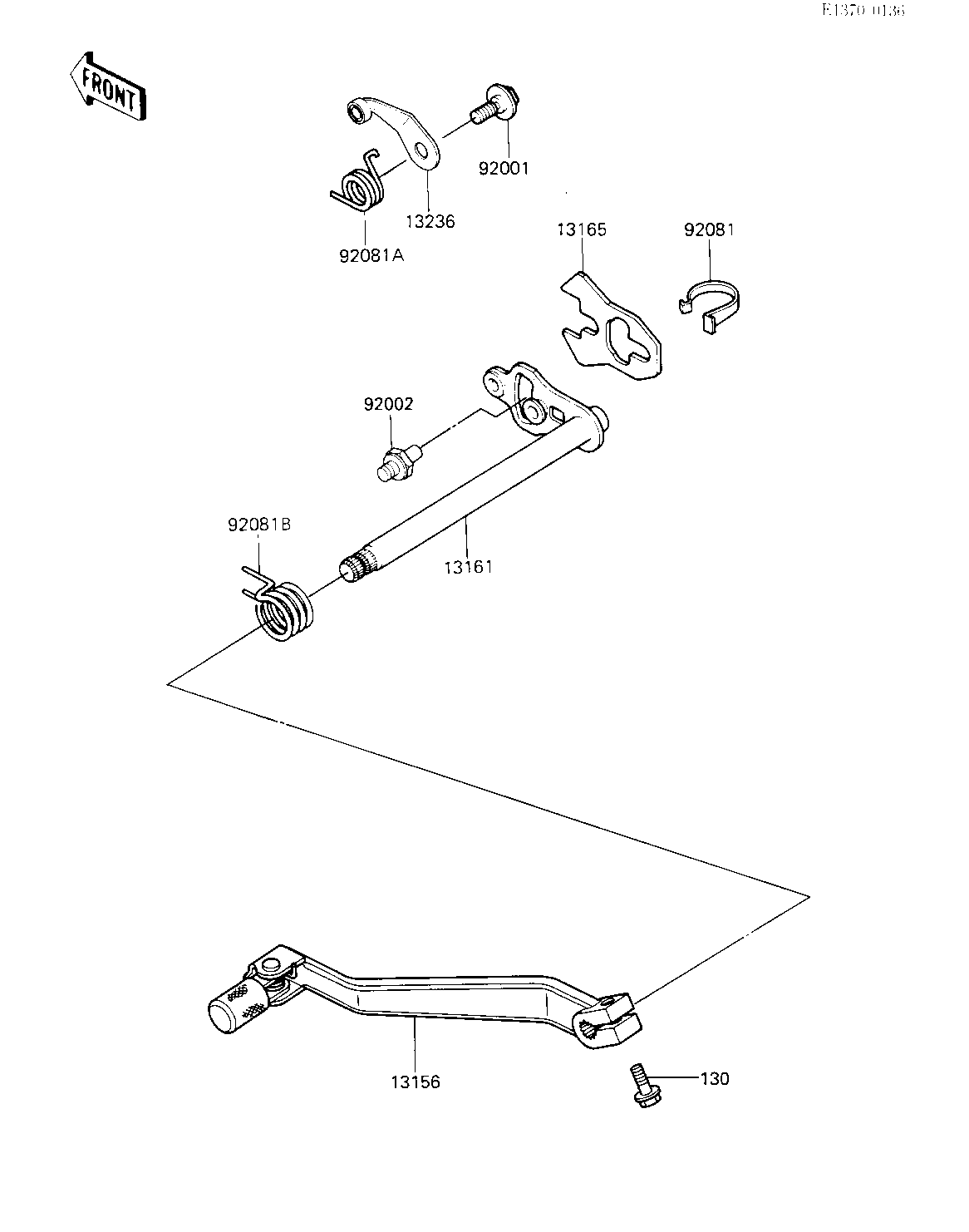

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-CHANGE,PEDAL 13156 13156-1178 1
LEVER-COMP-CHANGE SHA 13161 13161-1115 1
PAWL,CHANGE LEVER 13165 13165-1034 1
LEVER-COMP,CHANGE DRU 13236 13236-1117 1
BOLT 92001 92001-1715 1
BOLT,RETURN SPRING 92002 92002-1355 1
SPRING,CHANGE LEVER 92081 92081-1493 1
SPRING 92081A 92081-1496 1
SPRING,CHANGE PEDAL R 92081B 92081-1750 1
BOLT-FLANGED,6X20,BLA 130 130S0620 1
