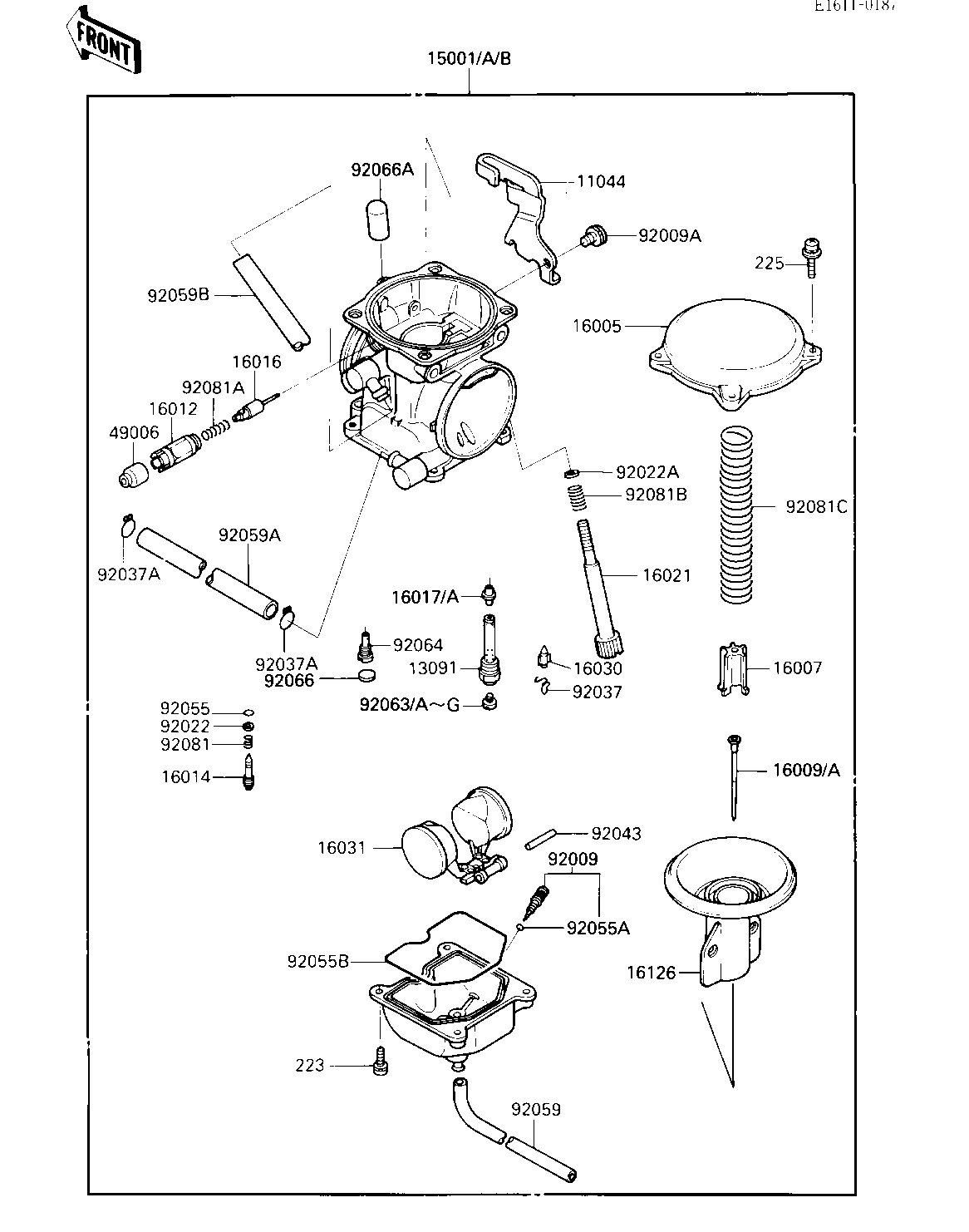

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABL 11044 11044-1061 1
HOLDER,NEEDLE JET 13091 13091-1259 1
CARBURETOR-ASSY (Canada) 15001 15001-1099 1 CN
CARBURETOR-ASSY 15001A 15001-1121 1 US
CARBURETOR-ASSY 15001B 15001-1122 1 CA
TOP-CHAMBER,MIXING 16005 16005-1057 1
SEAT-SPRING,THROTTLE 16007 16007-1117 1
NEEDLE-JET,N31A (Canada) 16009 16009-1253 1 CN
NEEDLE-JET,N31C 16009A 16009-1255 1 CA,US
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW,PILOT ADJUST 16014 16014-1029 1
PLUNGER,STARTER 16016 16016-1065 1
JET-NEEDLE 16017 16017-1265 1 CA,US
JET-NEEDLE (Canada) 16017A 16017-1266 1 CN
SCREW-THROTTLE STOP 16021 16021-1109 1
FLOAT VALVE 16030 16030-1007 1
FLOAT 16031 16031-1056 1
VALVE,VACUUM 16126 16126-1163 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
SCREW,DRAIN 92009 92009-1095 1
SCREW 92009A 92009-1365 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,THROTTLE STOP 92022A 92022-1587 1
CLIP,FLOAT VALVE 92037 16044-007 1
CLAMP,TUBE 92037A 92037-1531 2
PIN,FLOAT 92043 92043-1148 1
O RING,PILOT ADJ 92055 92055-1002 1
"O" RING,DRAIN SCREW 92055A 92055-1053 1
RING-O,FLOAT CHAMBER 92055B 92055-1222 1
HOSE,FUEL OVERFLOW 92059 92059-111 1
TUBE,6.5X11.5X200 92059A 92059-1538 1
TUBE,6.5X9.5X410 92059B 92059-1539 1
MAIN JET,2ND,#125 92063 92063-1069 1 CN
JET-MAIN,#118 92063A 92063-1071 1 CA,US
JET-MAIN,#118 92063B 92063-1071 1 CN
MAIN JET,2ND,#120 92063C 92063-1072 1 CN
MAIN JET,2ND,#120 92063D 92063-1072 1 CA,US
MAIN JET,2ND,#122 92063E 92063-1073 1 (OFF ROAD USE ONLY)
JET-MAIN #112 92063F 92063-1117 1 CA,US
JET-MAIN #115 92063G 92063-1118 1 (OFF ROAD USE ONLY)
JET-PILOT,#35 92064 92064-1101 1
PLUG,PILOT SCREW 92066 92066-1051 1 CA,US
RUBBER PLUG 92066A 92068-006 1 CN,US
SPRING,PIROT ADJ SCRW 92081 92081-1002 1
SPRING,PLUNGER 92081A 92081-1720 1
SPRING,THROTTLE STOP 92081B 92081-1721 1
SPRING,VACUUM VALVE 92081C 92081-1826 1
SCREW-PAN-WS-CROS 223 223C0416 4
SCREW-PAN-WSP-CROS 225 225C0418 4
