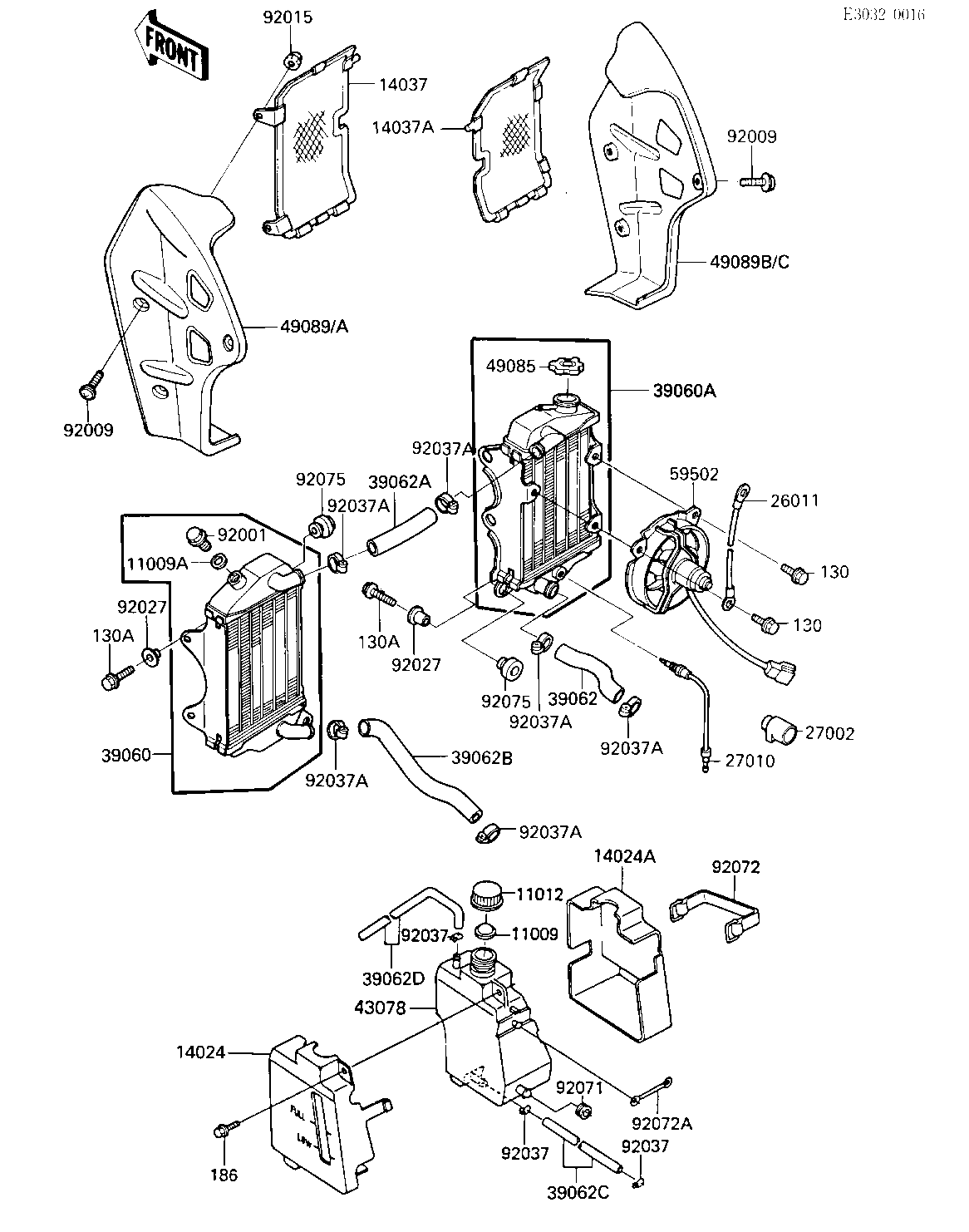

1986 KLR250 - RADIATOR/FAN/COOLANT TANK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVE TANK 11009 11009-1145 1
GASKET,DRAIN PLUG 11009A 11009-1152 1
CAP,RESERVE TANK 11012 11012-1084 1
COVER,RESERVOIR,LH 14024 14025-1991 1
COVER,RESERVOIR,RH 14024A 14025-1992 1
SCREEN,LH 14037 14037-1061 1
SCREEN,RH 14037A 14037-1062 1
WIRE-LEAD 26011 26011-1278 1
RELAY-ASSY 27002 27002-1051 1
SWITCH,FAN 27010 27010-1180 1
RADIATOR,LH 39060 39060-1060 1
RADIATOR,RH 39060A 39060-1061 1
HOSE-COOLING 39062 39062-1083 1
HOSE-COOLING 39062A 39062-1084 1
HOSE-COOLING 39062B 39062-1085 1
HOSE-COOLING 39062C 39062-1086 1
HOSE-COOLING 39062D 39062-1131 1
RESERVOIR,TANK 43078 43078-1061 1
CAP-ASSY-PRESSURE 49085 49085-1052 1
SHROUD-ENGINE,LH,BLUE 49089 49089-1057-BA 1
SHROUD-ENGINE,RH,BLUE 49089B 49089-1058-BA 1
FAN-ASSY 59502 59502-1052 1
BOLT,RADIATOR DRAIN 92001 92002-1682 1
SCREW,6X14 92009 92009-1287 6
NUT,CAP 6MM,BLACK 92015 92015-1170 4
COLLAR,RADIATOR GUARD 92027 92027-1183 6
CLAMP,CHAIN OILER 92037 92037-147 3
CLAMP,COOLING HOSE 92037A 92037-1589 6
GROMMET,RESERVIOR TAN 92071 92071-1115 1
BAND-SPARK PLUG COVER 92072 92072-053 1
BAND,L=58 92072A 92072-1156 1
DAMPER,RADIATOR 92075 92075-1352 6
BOLT-FLANGED,6X12,BLA 130 130J0612 3
BOLT-FLANGED,6X20 130A 130J0620 6
BOLT-UPSET-WP 186 186J0618 1
