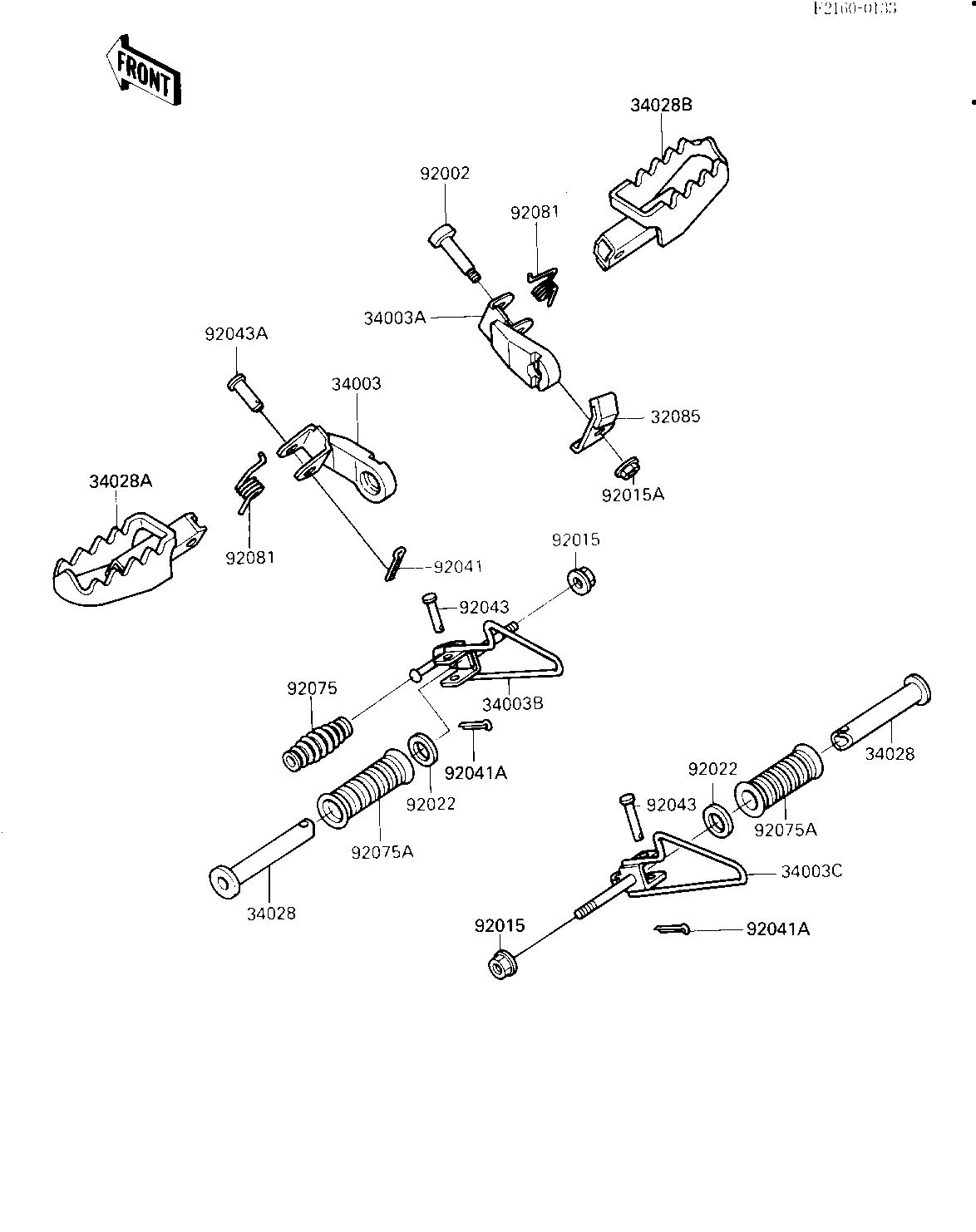

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER,KICK PEDAL 32085 32085-1178 1
HOLDER-STEP,FR,LH 34003 34003-1218 1
HOLDER-STEP,FR,RH 34003A 34003-1219 1
HOLDER-STEP,RR,LH 34003B 34003-1223 1
HOLDER-STEP,RR,RH 34003C 34003-1224 1
BAR-RR FOOTREST (OPT) 34028 34028-009 2
STEP,FR,LH 34028A 34028-1154 1
STEP,FR,RH 34028B 34028-1155 1
BOLT 92002 92002-1193 1
NUT,FLANGED,10MM 92015 92015-1428 2
NUT,FLANGED,6MM 92015A 92015-1367 1
WASHER,20X30X2.3 92022 92022-1568 2
COTTER 92041 92041-1051 1
COTTER 92041A 92041-1052 2
PIN 92043 92043-1464 2
PIN-FOOTREST BAR FIT 92043A 92043-080 1
DAMPER,CHANGE PEDAL 92075 92160-1036 1
RUBBER,REAR FOOTREST 92075A 92076-024 2
SPRING,FR FOOTREST 92081 92081-1133 2
