Parts Diagrams |

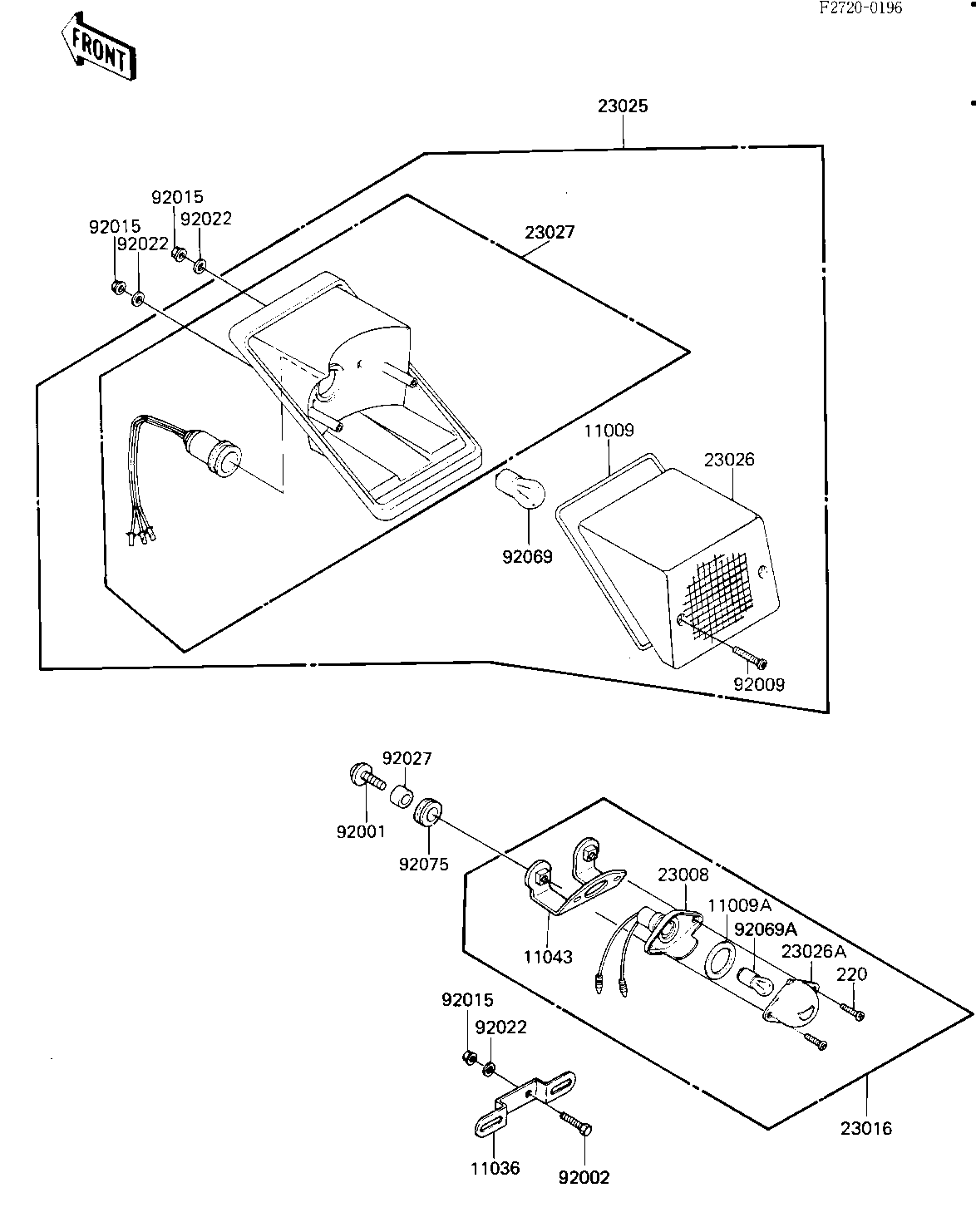

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,TAIL LAMP | 11009 | 11009-1371 | 1 | ||
GASKET,LICENSE PLATE | 11009A | 11009-1372 | 1 | ||
BRACKET-A,LICENSE PLA | 11036 | 11036-1040 | 1 | ||
BRACKET,LICENSE PLATE | 11043 | 11043-1497 | 1 | ||
SCOKET-ASSY,LICENSE P | 23008 | 23008-1205 | 1 | ||
LAMP-ASSY,LICENSE PLA | 23016 | 23016-1057 | 1 | ||
LAMP-TAIL | 23025 | 23025-1103 | 1 | ||
LENS,TAIL LAMP | 23026 | 23026-1053 | 1 | ||
LENS,LICENSE PLATE LA | 23026A | 23026-1054 | 1 | ||
BODY-COMP-TAIL LAMP | 23027 | 23027-1052 | 1 | ||
BOLT,6X22 | 92001 | 92002-1262 | 2 | ||
BOLT,6X16 | 92002 | 92002-1124 | 2 | ||
SCREW,TAPPING,4X20 | 92009 | 92009-1297 | 2 | ||
NUT-6MM | 92015 | 92015-1078 | 4 | ||
WASHER 6.5X20X1.6T | 92022 | 92022-125 | 4 | ||
COLLAR 6.8X10X10.5 | 92027 | 92027-120 | 2 | ||
BULB,12V 32/3CP | 92069 | 92069-059 | 1 | ||
BULB,12V 4CP | 92069A | 92069-1012 | 1 | ||
DAMPER RUBBER,CASE | 92075 | 92075-222 | 2 | ||
SCREW PAN HEAD 4X10 | 220 | 220B0410 | 2 |
GASKET,TAIL LAMP | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,LICENSE PLATE | |
REF # | 11009A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET-A,LICENSE PLA | |
REF # | 11036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,LICENSE PLATE | |
REF # | 11043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCOKET-ASSY,LICENSE P | |
REF # | 23008 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-ASSY,LICENSE PLA | |
REF # | 23016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LAMP-TAIL | |
REF # | 23025 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,TAIL LAMP | |
REF # | 23026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LENS,LICENSE PLATE LA | |
REF # | 23026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY-COMP-TAIL LAMP | |
REF # | 23027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X22 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,TAPPING,4X20 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT-6MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER 6.5X20X1.6T | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR 6.8X10X10.5 | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BULB,12V 32/3CP | |
REF # | 92069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BULB,12V 4CP | |
REF # | 92069A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DAMPER RUBBER,CASE | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 4X10 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
