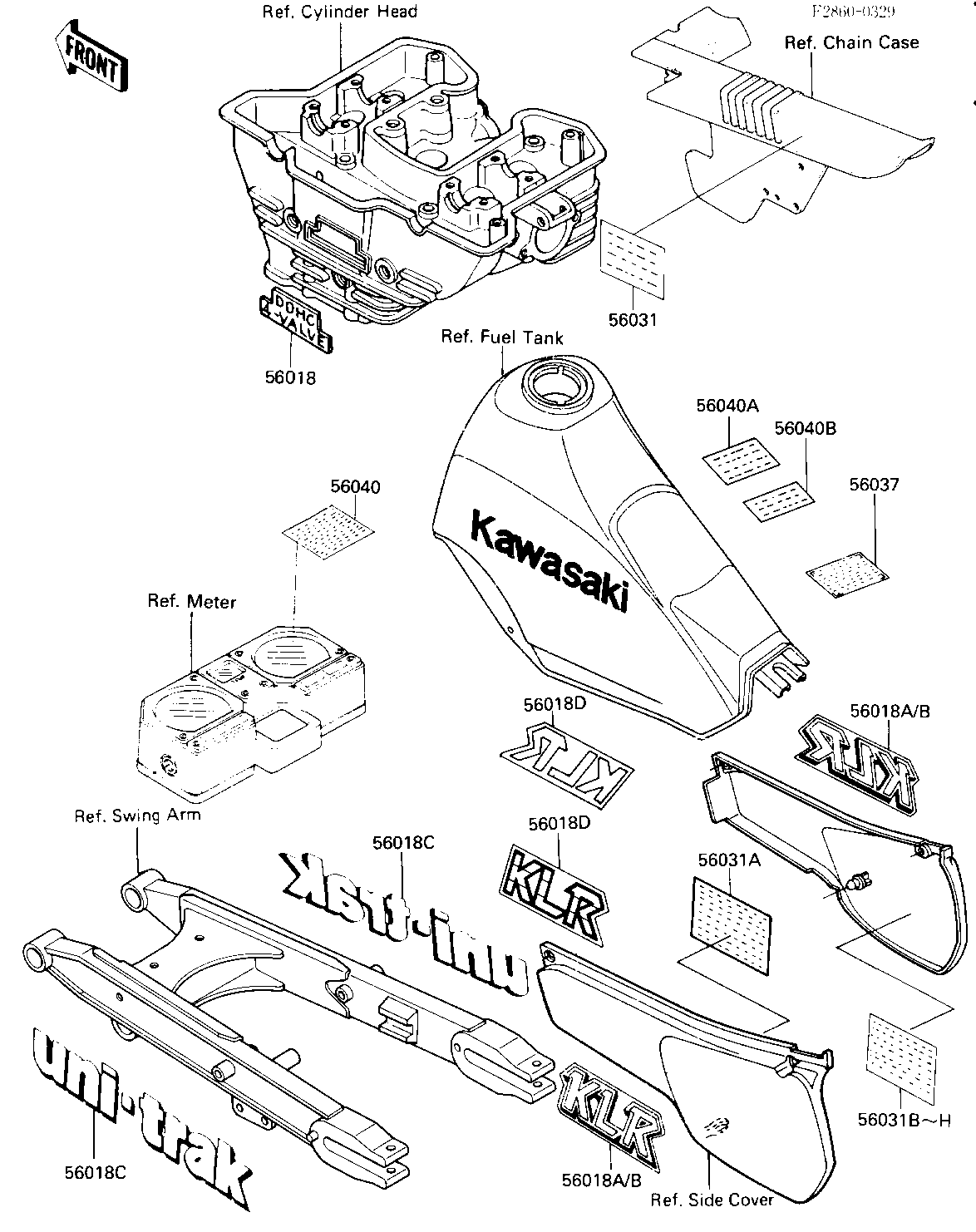

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,CYLINDER HEAD 56018 56018-1483 1
MARK,SWING ARM,UNI-TR 56018C 56018-1594 2
MARK,SIDE COVER,KLR,F 56018D 56018-1751 2
LABEL-MANUAL,CHAIN 56031 56031-1369 1
LABEL-MANUAL,BATTERY 56031A 56031-1371 1
LABEL-MANUAL 56031B 56031-1389 1 CA,US
LABEL-MANUAL 56031C 56031-1389 1 CN
LABEL-MANUAL 56031D 56031-1389 1 US
LABEL-MANUAL 56031E 56031-1389 1 CA
LABEL-MANUAL,OIL&OIL 56031F 56031-1470 1 CN
LABEL-MANUAL,OIL&OIL 56031G 56031-1470 1 US
LABEL-MANUAL,OIL&OIL 56031H 56031-1470 1 CA
LABEL-SPECIFICATION,T 56037 56037-1295 1
LABEL,BRAKE-IN 56040 56040-1007 1 CA,US
LABEL,BRAKE-IN,INST 56040A 56040-1008 1 CA,US
LABEL-WARNING,FUEL TK 56040B 56040-1121 1 CA
