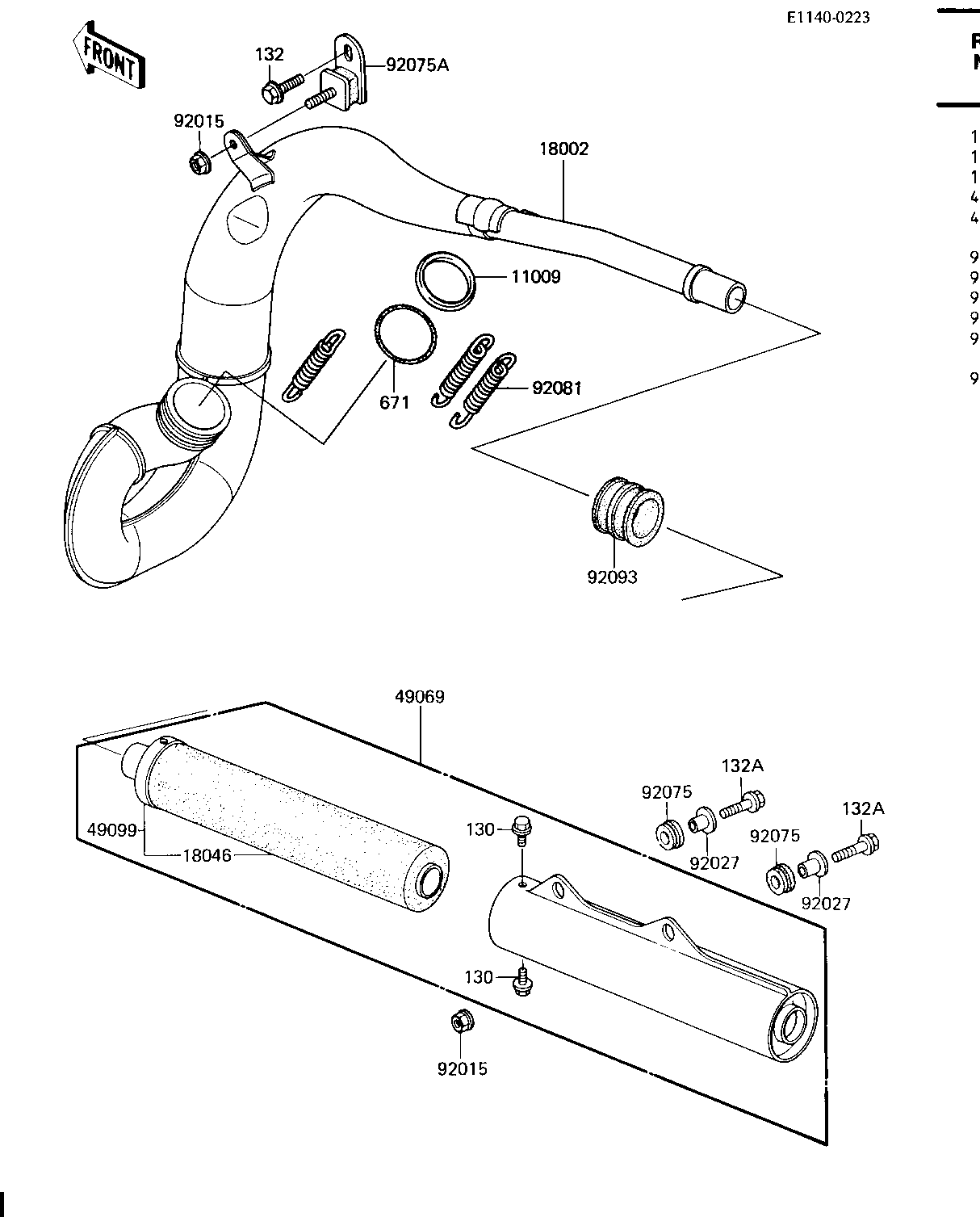

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11009 11009-1253 1
BODY-COMP-MUFFLER 18002 18002-1552 1
WOOL,MUFFLER BAFFLE 18046 18046-1075 1
MUFFLER-ASSY 49069 49069-1072 1
BAFFLE-PIPE MUFFLER 49099 49099-1110 1
NUT-6MM 92015 92015-1078 2
COLLAR 92027 92027-194 2
DAMPER, HEAD LMP FIT 92075 92075-1123 2
DAMPER,MUFFLER 92075A 92075-1891 1
SPRING,MUFFLER CONEC 92081 92081-1526 3
SEAL,MUFFLER 92093 92093-1085 1
BOLT-FLANGED 130 130G0508 2
BOLT-FLANGED-SMALL 132 132G0612 1
BOLT-FLANGED-SMALL 132A 132G0625 2
O RING,50MM 671 671E2550 2
