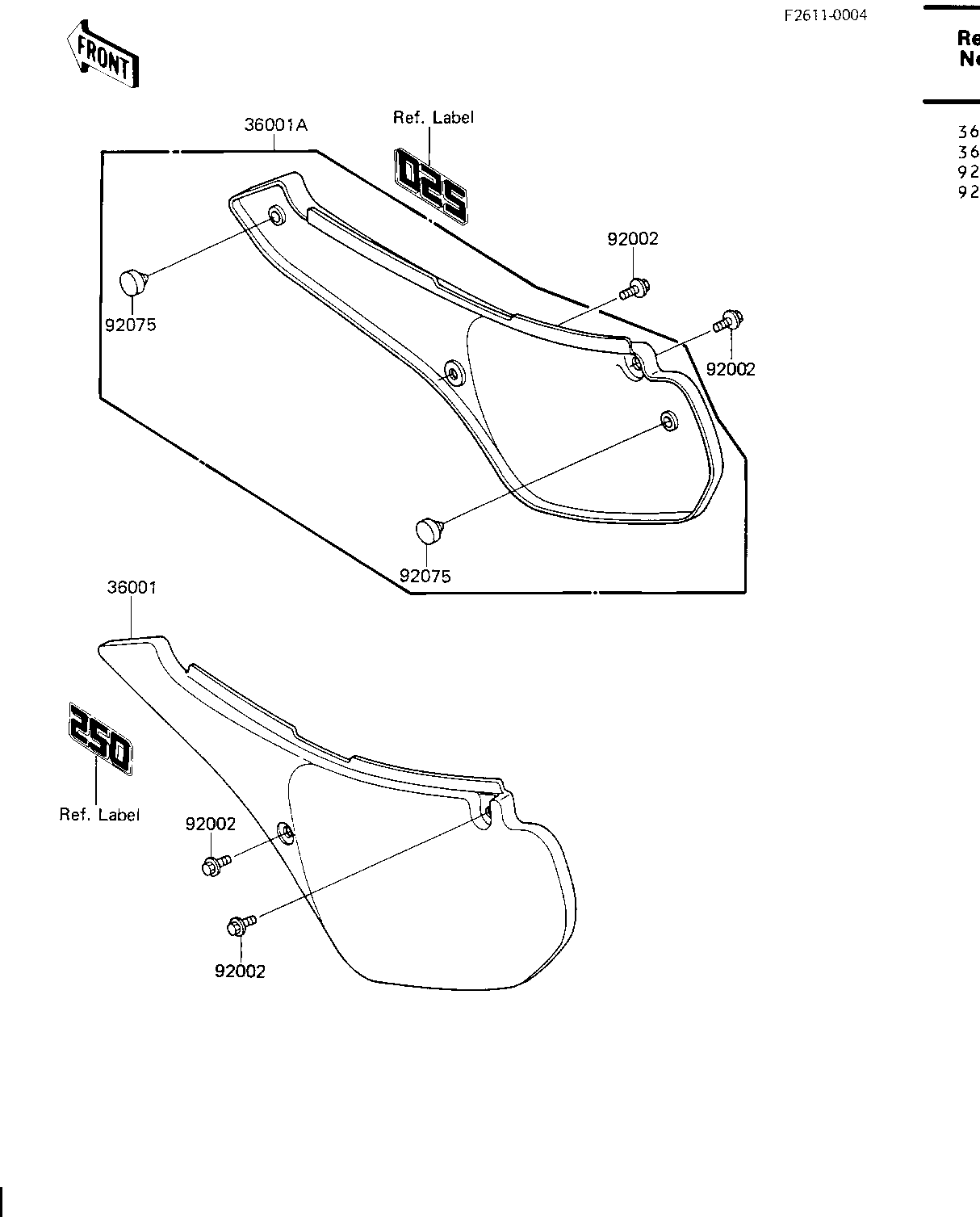

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,L.GREE 36001 36001-1279-AE 1
COVER-SIDE,RH,L.GREE 36001A 36001-1280-AE 1
BOLT,6X14 92002 92150-1340 4
DAMPER,SIDE COVER 92075 92075-1598 2
