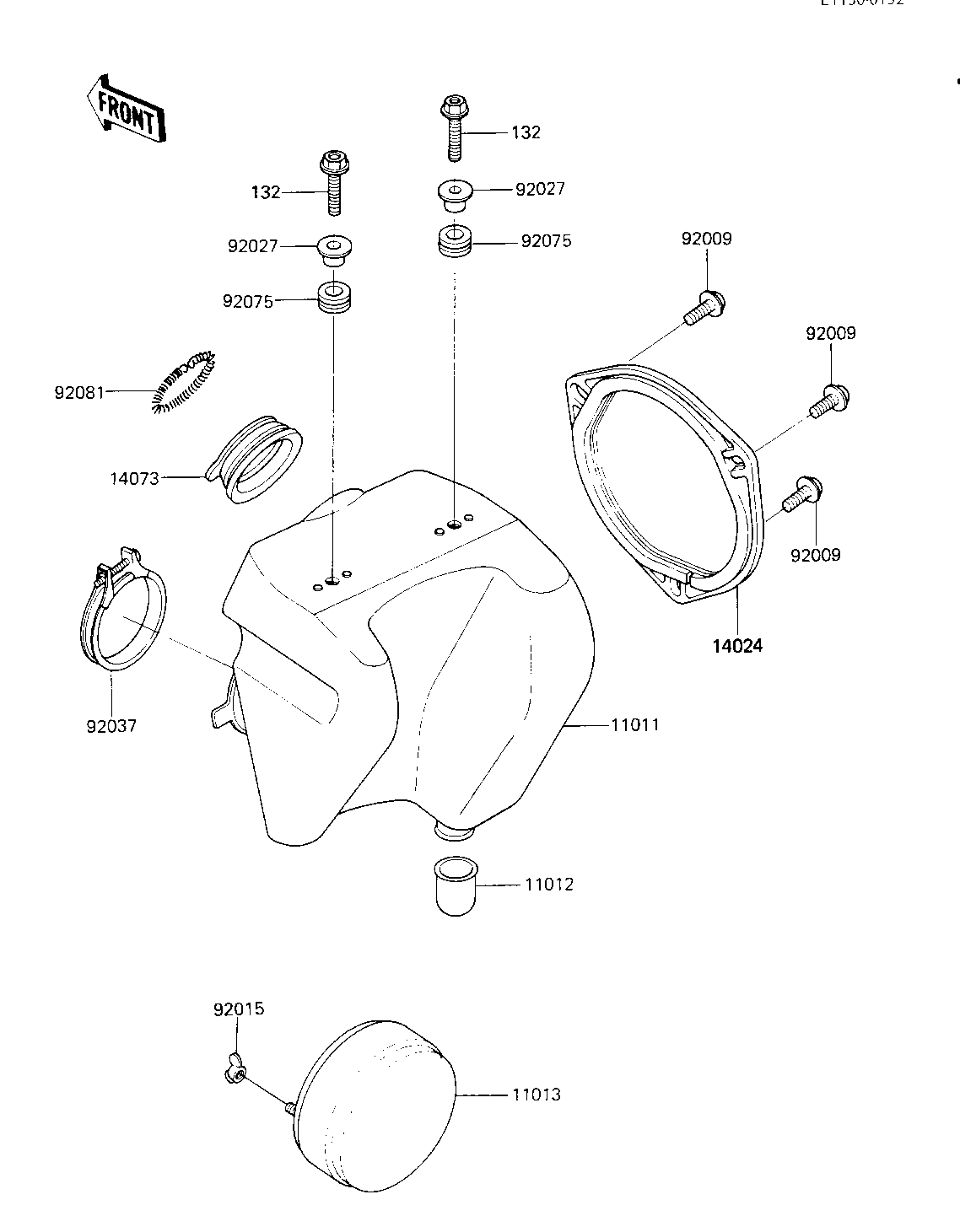

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1139 1
CAP,DRAIN 11012 11012-1308 1
ELEMENT-AIR FILTER 11013 11013-1077 1
COVER,AIR FILTER CASE 14024 14025-1690 1
DUCT,AIR FILTER CASE 14073 14073-1106 1
SCREW,6X18 92009 92009-1111 3
NUT,AIR CLEANER CAP 92015 92016-062 2
COLLAR 92027 92027-251 2
CLAMP 92037 92037-171 1
DAMPER RUBBER,RR FENR 92075 92075-209 2
SPRING 92081 92081-1177 1
BOLT-FLANGED-SMALL 132 132G0625 2
