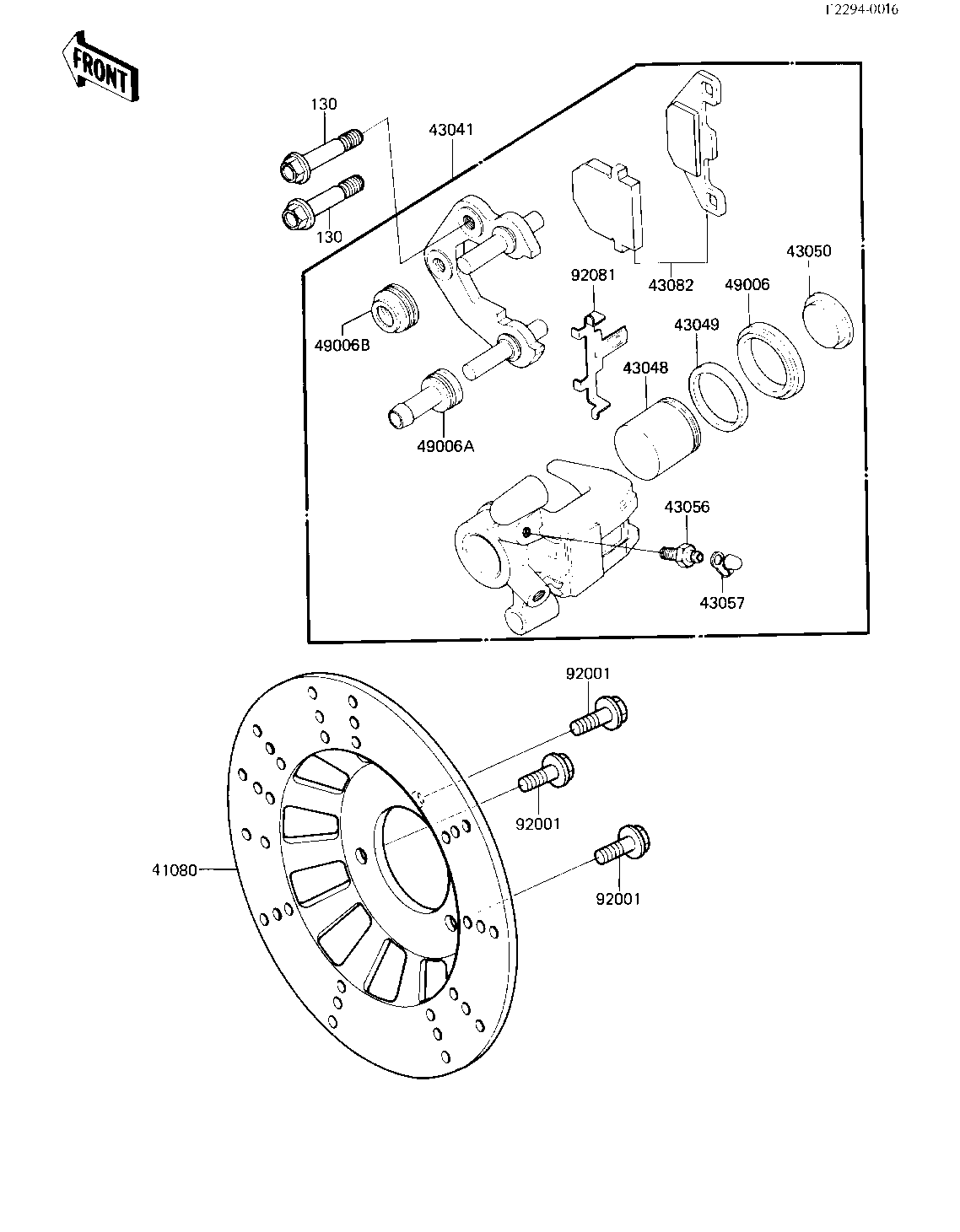

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DISK,4X210 41080 41080-4001 1
CALIPER-ASSY 43041 43041-1044 1
PISTON-CALIPER 43048 43048-1008 1
PACKING 43049 43049-1016 1
PAD-BRAKE 43050 43050-1040 1
BREEDER 43056 43056-003 1
CAP,BREEDER 43057 43057-003 1
PAD-ASSY-BRAKE 43082 43082-1017 1
BOOT,CALIPER 49006 49006-1053 1
BOOT,CALIPER 49006A 49006-1054 1
BOOT,CALIPER 49006B 49006-1055 1
BOLT,FLANGED,8X18 92001 92001-4030 3
SPRING 92081 92081-1341 1
BOLT-FLANGED,8X12 130 130G0812 2
