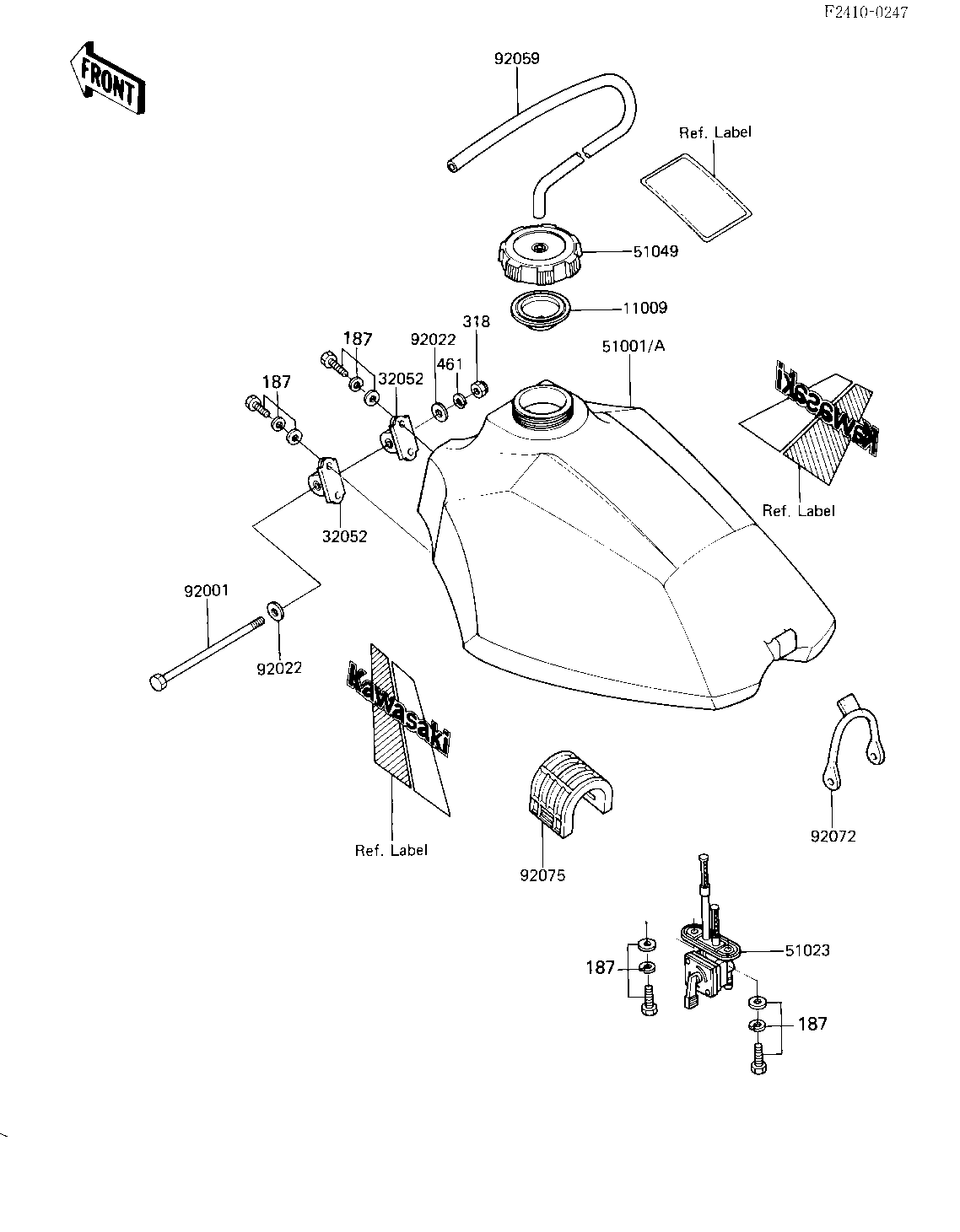

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK CAP 11009 11009-4001 1
BRACKET-TANK 32052 32052-4011 2
TANK-FUEL,L.GREEN 51001 51001-4007-6W 1 US
TANK-FUEL,W.F.RED 51001A 51001-4007-8S 1
TAP-ASSY 51023 51023-1045 1
CAP-TANK,FUEL 51049 51049-1060 1
BOLT,8X186 92001 92001-4031 1
WASHER,8.5X20X1.6 92022 92022-1561 2
TUBE,5X7X500 92059 92059-4001 1
BAND,FUEL TANK 92072 92072-042 1
DAMPER,FUEL TANK 92075 92075-4036 1
BOLT-UPSET-WSP 187 187B0616 6
NUT 8MM 318 318B0800 1
WASHER SPRING 8MM 461 461F0800 1
