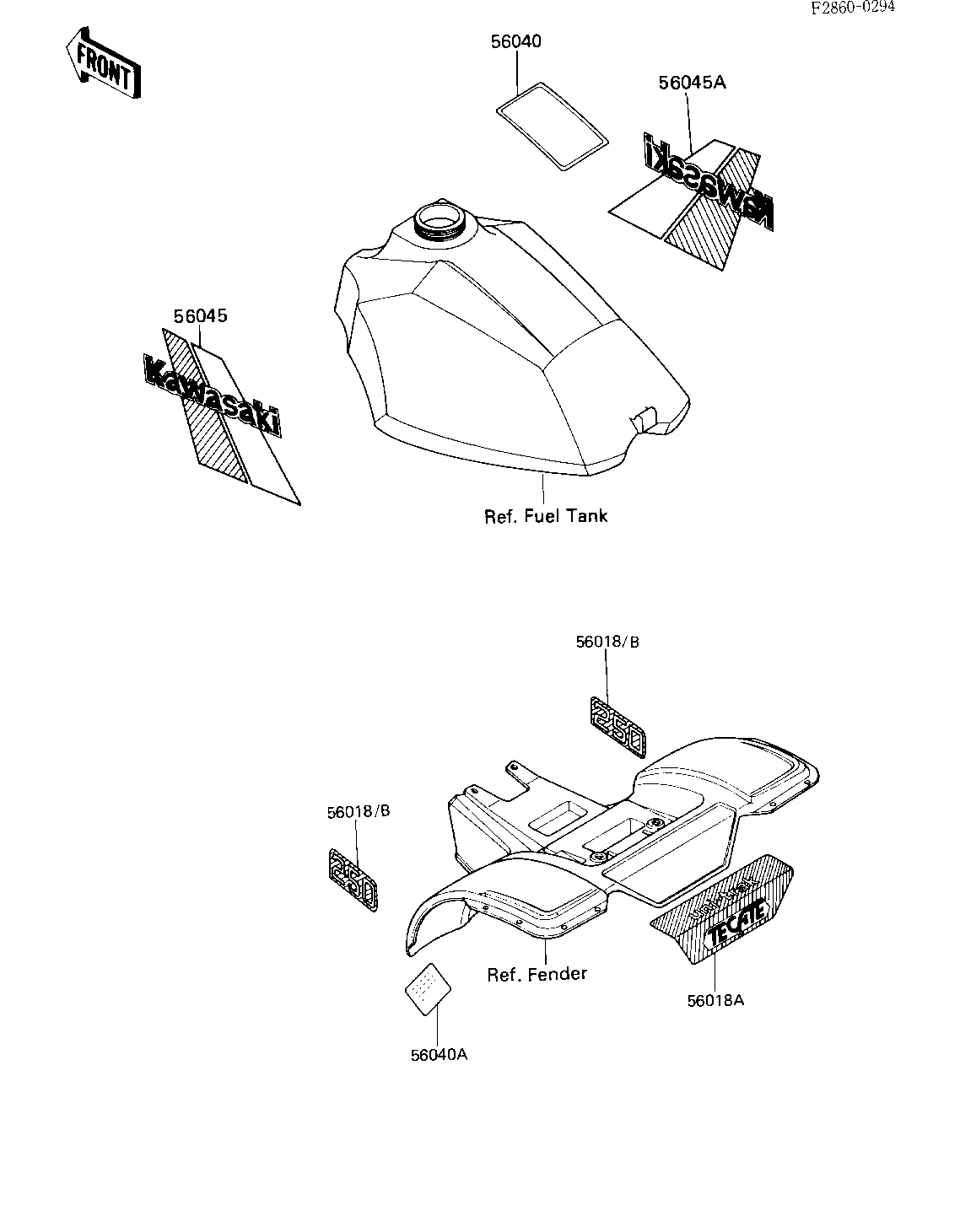

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,250,W.F.RED 56018 56018-4026 2
MARK,UNI-TRAK 56018A 56018-4027 1
MARK,250,L.GREEN 56018B 56018-4028 2
LABEL,WARNING,TANK 56040 56040-4013 1
LABEL,WARNING,RR-FEND 56040A 56040-4014 1
PATTERN,FUEL TANK,LH 56045 56045-1715 1
PATTERN,FUEL TANK,RH 56045A 56045-1716 1
