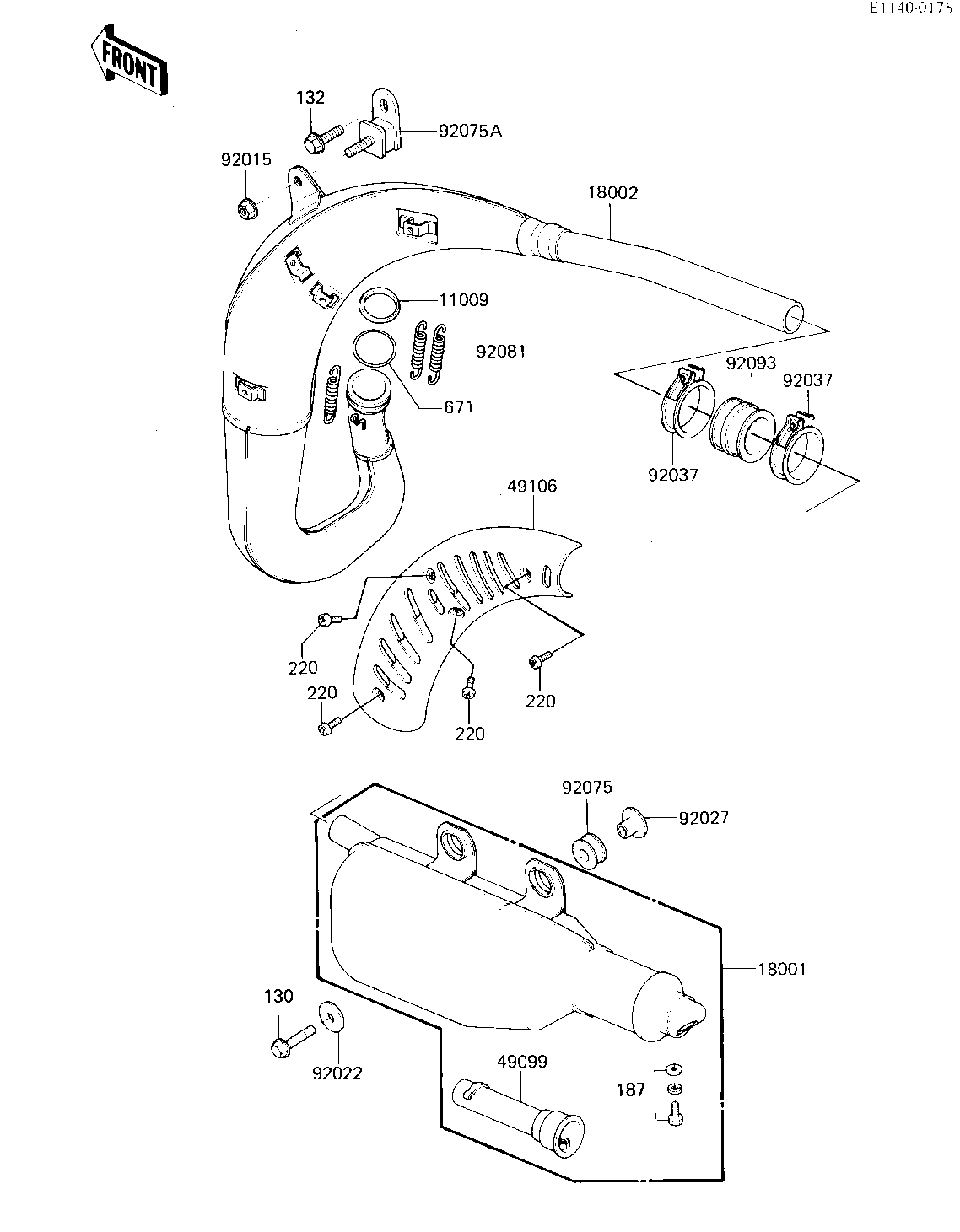

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11009 11009-1253 1
MUFFLER,F.BLACK 18001 18001-1412 1
BODY-COMP-MUFFLER,BLA 18002 18002-1545 1
BAFFLE-PIPE MUFFLER 49099 49099-1221 1
COVER-MUFFLER 49106 49106-1051 1
NUT-6MM 92015 92015-1078 1
WASHER,PLAIN 92022 92022-298 2
COLLAR,L=16.3 92027 92027-1672 2
CLAMP,CARBURETOR,40MM 92037 92037-1129 2
DAMPER,MUFFLER 92075 92075-1196 2
DAMPER,MUFFLER 92075A 92075-1891 1
SPRING,MUFFLER CONECT 92081 92081-1526 3
SEAL,MUFFLER 92093 92093-1085 1
BOLT,FLANGED,8X30 130 130G0830 2
BOLT-FLANGED-SMALL 132 132G0612 1
BOLT 6X12 187 187B0612 1
SCREW-PAN-CROS,6X8 220 220C0608 4
O RING,50MM 671 671E2550 1
