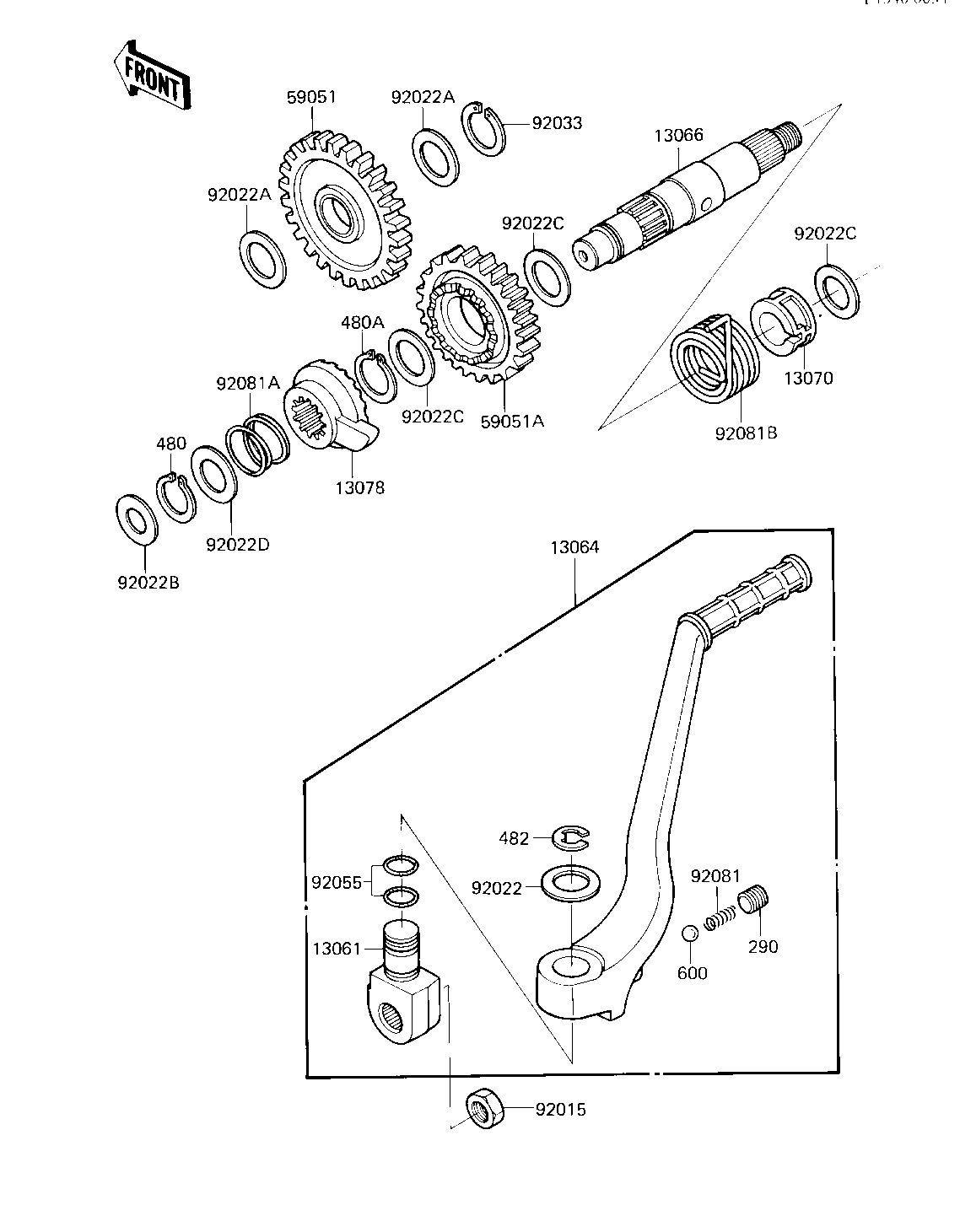

1985 Tecate - KICKSTARTER MECHANISM ('85 A2)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOSS,KICK PEDAL | 13061 | 13061-1055 | 1 | ||
LEVER-ASSY-KICK,PEDAL | 13064 | 13064-1047 | 1 | ||
SHAFT-KICK | 13066 | 13066-1026 | 1 | ||
GUIDE,KICK SPRING | 13070 | 13070-1063 | 1 | ||
RATCHET | 13078 | 13078-1061 | 1 | ||
IDLE GEAR, KICKSTRTER | 59051 | 59051-1022 | 1 | ||
GEAR-SPUR,KICKSTARTER | 59051A | 59051-1051 | 1 | ||
NUT,12MM | 92015 | 92015-1001 | 1 | ||
WASHER,PLAIN | 92022 | 92022-1019 | 1 | ||
WASHER | 92022A | 92022-252 | 2 | ||
WASHER,PLAIN | 92022B | 92022-269 | 1 | ||
WASHER,PLAIN | 92022C | 92022-271 | 3 | ||
WASHER,PLAIN | 92022D | 92022-315 | 1 | ||
CIRCLIP,18MM | 92033 | 92033-029 | 1 | ||
"O" RING,11.5MM | 92055 | 92055-072 | 2 | ||
SPRING KICK PEDAL | 92081 | 92081-020 | 1 | ||
SPRING,RATCHET | 92081A | 92081-122 | 1 | ||
SPRING,KICKSTARTER | 92081B | 92081-1253 | 1 | ||
SCREW, 8X16 | 290 | 290Q0816 | 1 | ||
CIRCLIP 16MM | 480 | 480J1600 | 1 | ||
CIRCLIP 18MM | 480A | 480J1800 | 1 | ||
CIR CLIP | 482 | 482K0100 | 1 | ||
BALL-STEEL,1/4" | 600 | 600A0800 | 1 |
