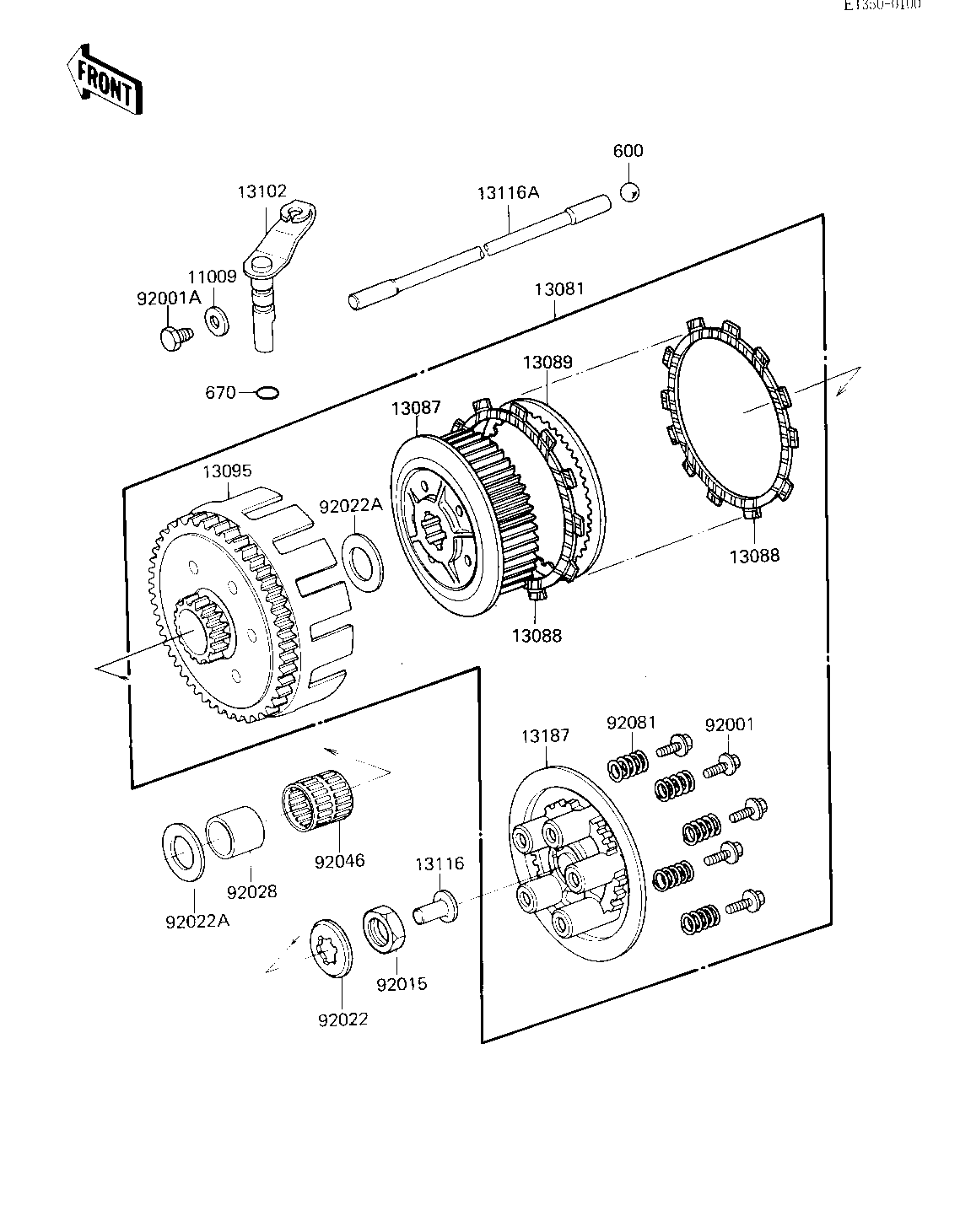

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,R.H ENG COVER | 11009 | 92065-092 | 1 | ||
CLUTCH-ASSY | 13081 | 13081-1180 | 1 | ||
HUB,CLUTCH | 13087 | 13087-044 | 1 | ||
PLATE-FRICTION | 13088 | 13088-1065 | 7 | ||
PLATE-CLUTCH | 13089 | 13089-1010 | 6 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1057 | 1 | ||
RELEASE-COMP-CLUTCH | 13102 | 13102-1077 | 1 | ||
ROD-PUSH,CLUTCH | 13116 | 13116-1010 | 1 | ||
ROD-PUSH,CLUTCH,L=158 | 13116A | 13116-1107 | 1 | ||
PLATE-CLUTCH OPERATIN | 13187 | 13187-1011 | 1 | ||
BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
BOLT,CLUTCH RELEASE | 92001A | 92003-130 | 1 | ||
NUT 20MM | 92015 | 92016-028 | 1 | ||
WASHER,LOCK | 92022 | 92022-1047 | 1 | ||
WASHER-CLUTCH THRUST | 92022A | 92022-168 | 2 | ||
BUSHING,CLUTCH | 92028 | 92028-1076 | 1 | ||
BEARING-NEEDLE,WR25/2 | 92046 | 92046-1049 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-139 | 5 | ||
BALL STEEL 3/8' | 600 | 600A1200 | 1 | ||
"0" RING, 10MM | 670 | 670B2010 | 1 |
