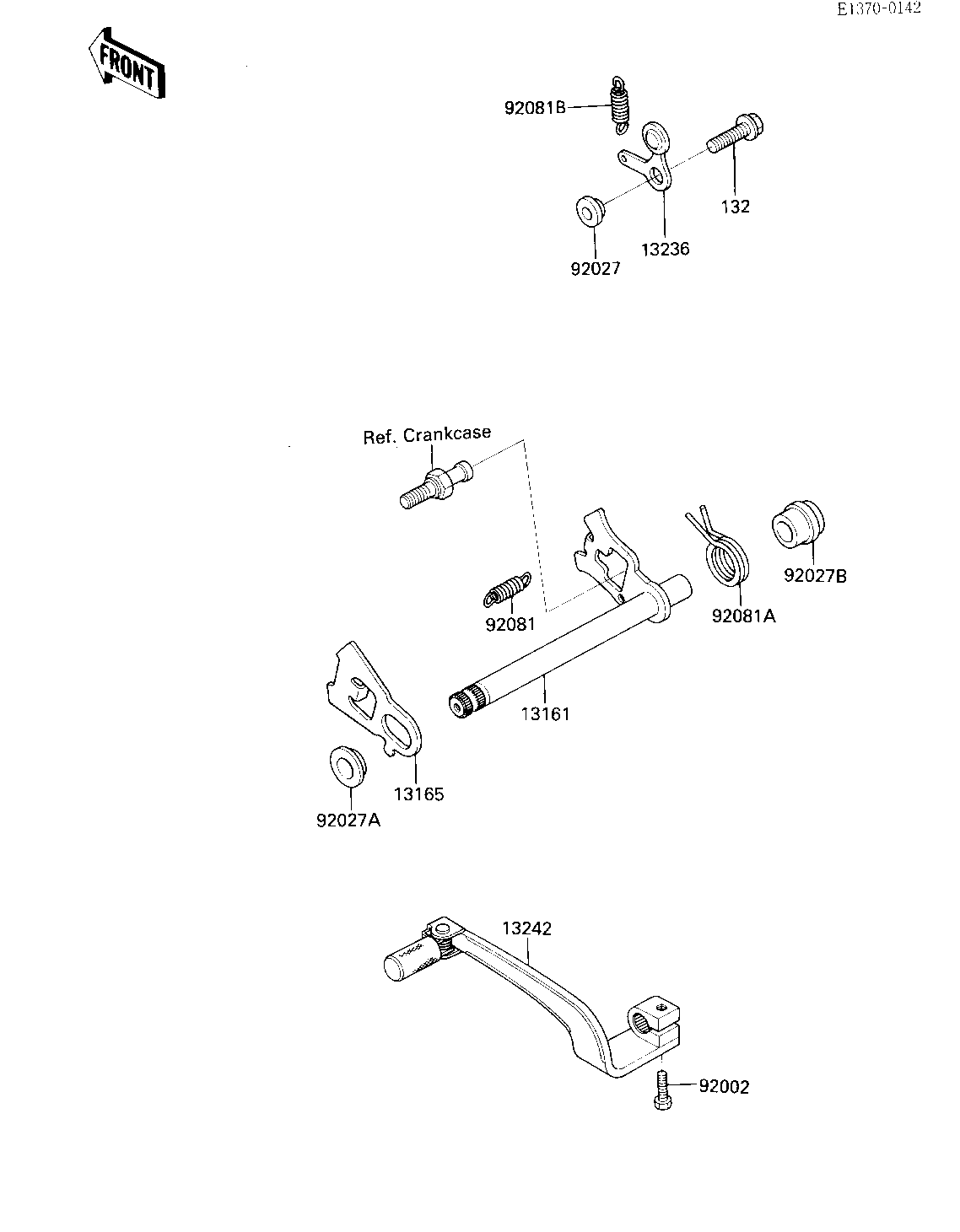

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-COMP-CHANGE SHA 13161 13161-1109 1
PAWL,CHANGE LEVER 13165 13165-1119 1
LEVER,CHANGE DRUM 13236 13236-1021 1
LEVER-ASSY-CHANGE,PED 13242 13242-1186 1
BOLT-FLANGED,6X25 92002 130P0625 1
COLLAR 92027 92027-1248 1
COLLAR,CHANGE SHAFT,L 92027A 92027-1512 1
COLLAR,RETURN SPRING 92027B 92027-1682 1
SPRING-CHANGE LEVER 92081 92081-076 1
SPRING,CHANGE SHAFT R 92081A 92081-1716 1
SPRING,CHNG DRUM LEV 92081B 92083-012 1
BOLT-FLANGED-SMALL 132 132G0616 1
