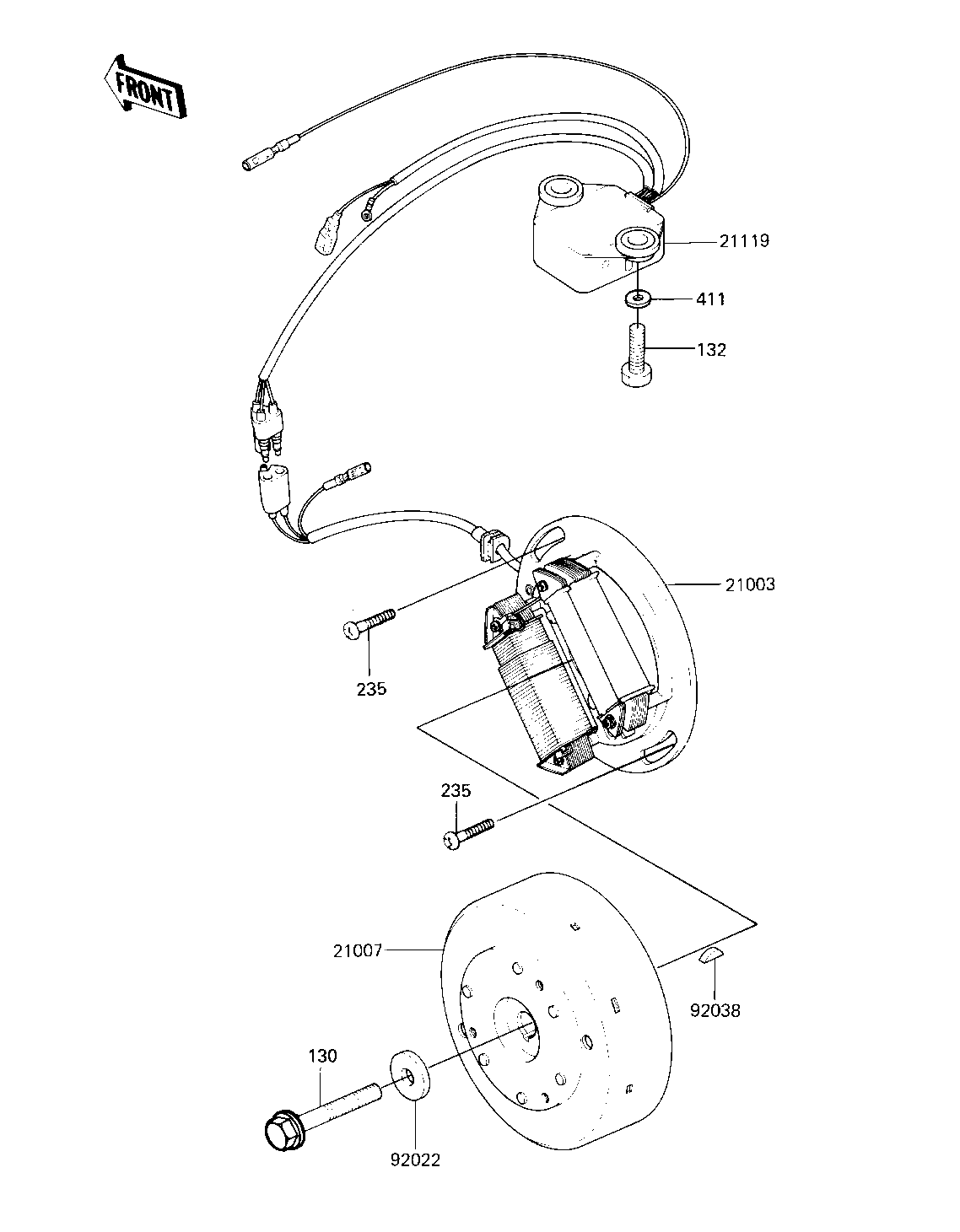

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1176 1
ROTOR 21007 21007-1124 1
IGNITER 21119 21119-1166 1
WASHER,PLAIN,8MM 92022 92022-276 1
WOODRUFF KEY 92038 92038-001 1
BOLT-FLANGED,8X40 130 130P0840 1
BOLT-FLANGED-SMALL 132 132G0616 2
SCREW-PAN-WP-CROS 235 235B0616 2
WASHER PLAIN 6MM 411 411B0600 2
