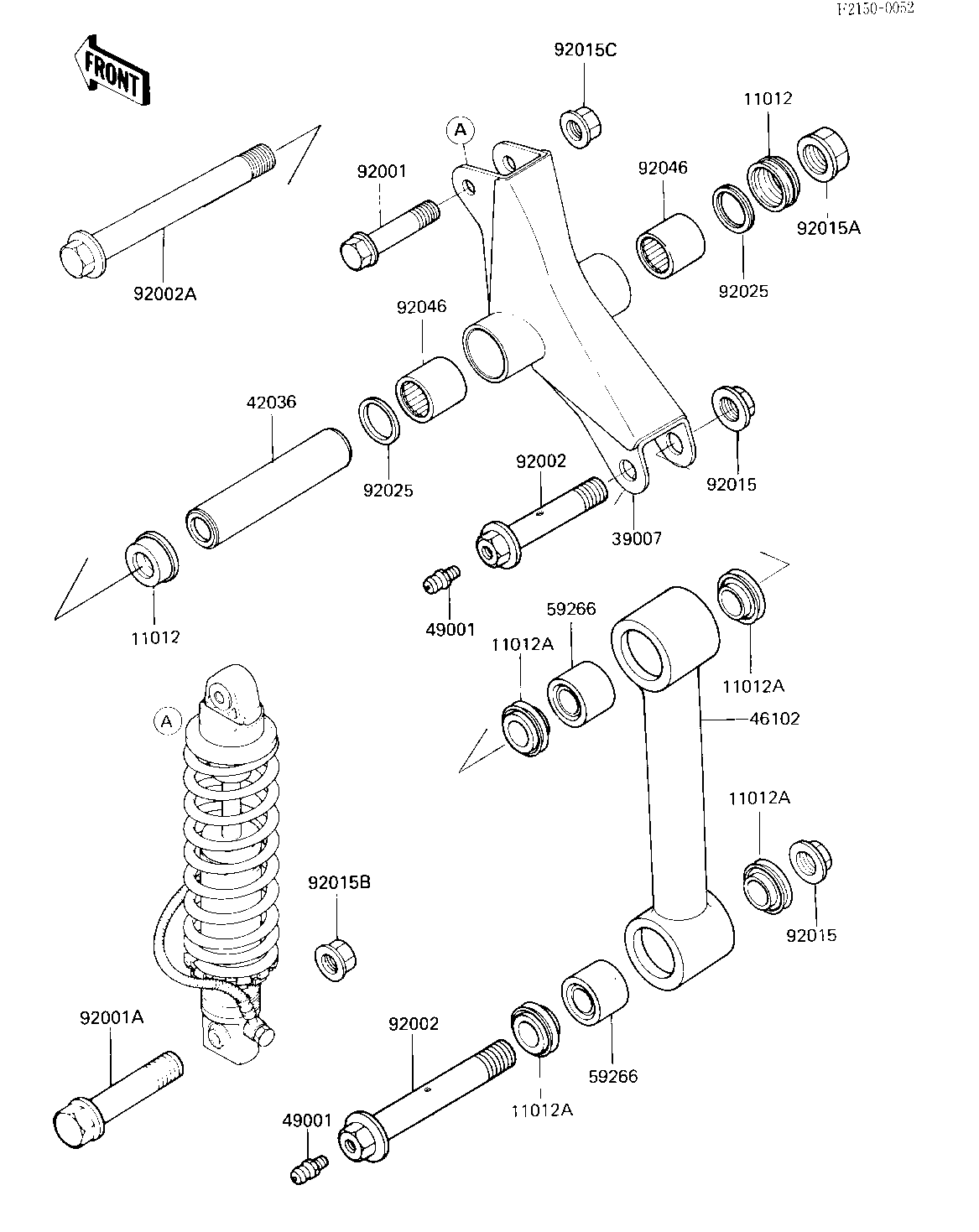

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1203 2
CAP,ROD 11012A 11012-1258 4
ARM-SUSP,UNI TRACK 39007 39007-1078 1
SLEEVE,17.1X24X106 42036 42036-4007 1
ROD,UNI TRAK 46102 46102-1128 1
NIPPLE-GREASE,ROD BOL 49001 49001-1051 2
JOINT-BALL,SB142820E0 59266 59266-1052 2
BOLT,FLANGED,10X50 92001 92001-4036 1
BOLT,FLANGED,12X90 92001A 92001-4037 1
BOLT,FLANGED,14X57 92002 92002-1390 2
BOLT,ARM CENTER,L=146 92002A 92002-1404 1
NUT,14MM 92015 92015-1407 2
NUT,16MM 92015A 92015-1046 1
NUT-12MM 92015B 92015-1156 1
NUT,10MM 92015C 92015-1415 1
SHIM 92025 92025-1229 2
BEARING-NEEDLE 92046 92046-1041 2
