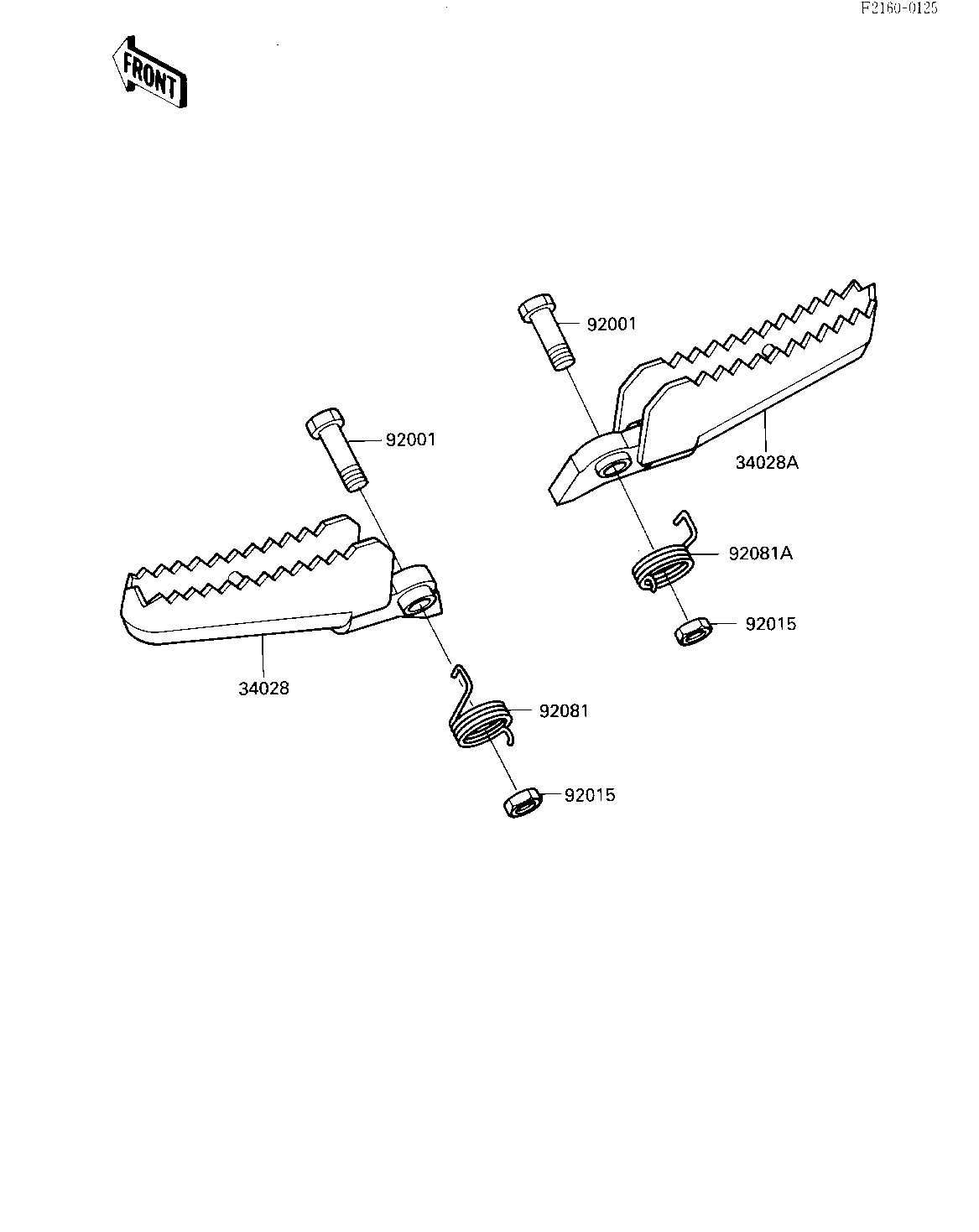

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STEP,LH,BLACK PAINT 34028 34028-1139 1
STEP,RH,BLACK PAINT 34028A 34028-1140 1
BOLT,10X44 92001 92001-4038 2
NUT,LOCK,10MM 92015 92019-021 2
SPRING,STEP,LH 92081 92081-4027 1
SPRING,STEP,RH 92081A 92081-4028 1
