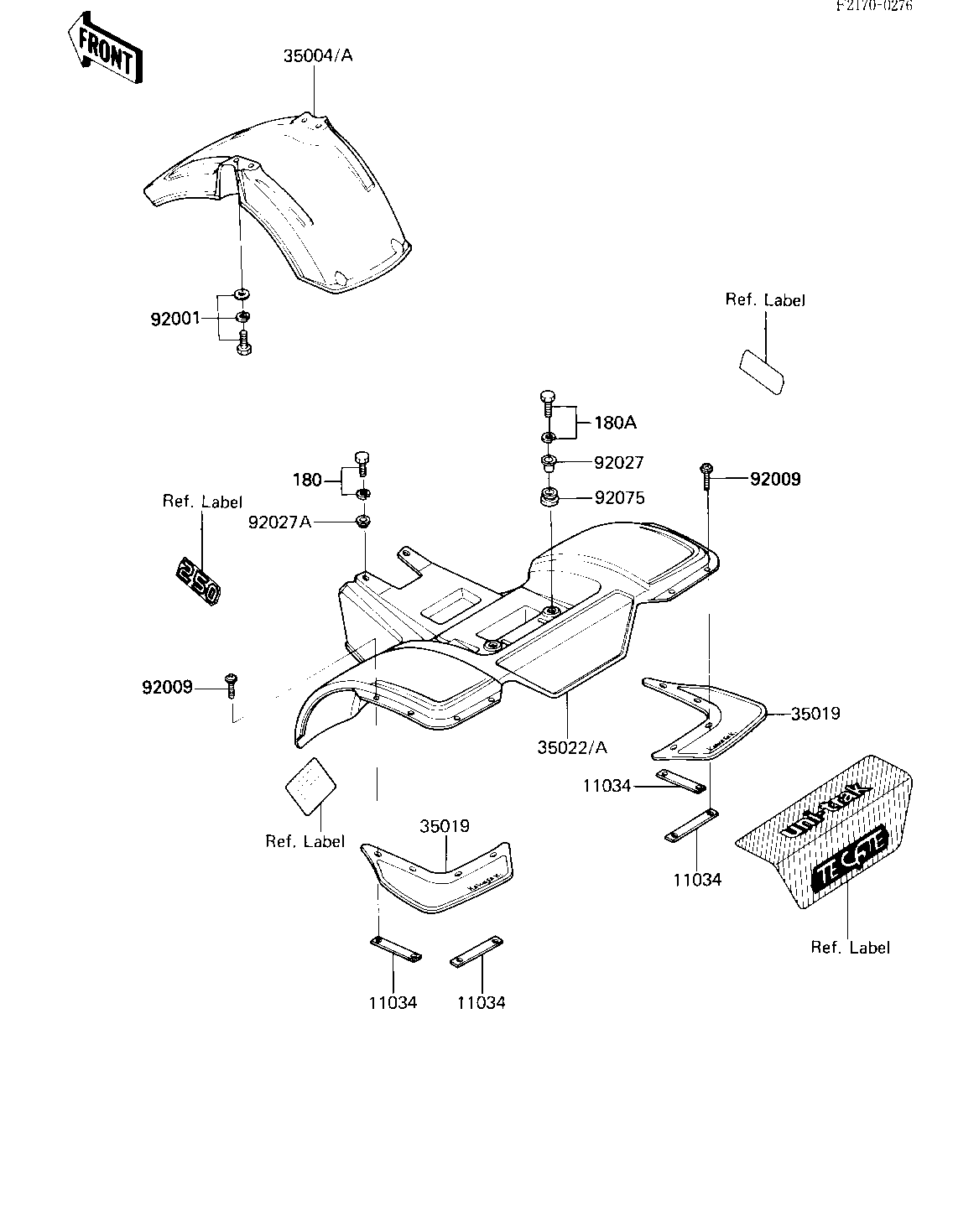

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FLAP 11034 11034-4062 4
FENDER-FR,L.GREEN 35004 35004-4008-6W 1
FENDER-FR,W.F.RED 35004A 35004-4008-8S 1
FLAP 35019 35019-4009 2
FENDER-RR,L.GREEN 35022 35022-4006-6W 1
FENDER-RR,W.F.RED 35022A 35022-4006-8S 1
BOLT,W/SP,6X16 92001 92001-1763 4
SCREW,6X14 92009 92009-1287 8
COLLAR 92027 92027-194 2
COLLAR,L=5 92027A 92027-4020 2
DAMPER RUBBER 92075 92075-112 2
BOLT-UPSET-WS,6X14 180 180B0614 2
BOLT-UPSET-WS,6X25 180A 180B0625 2
