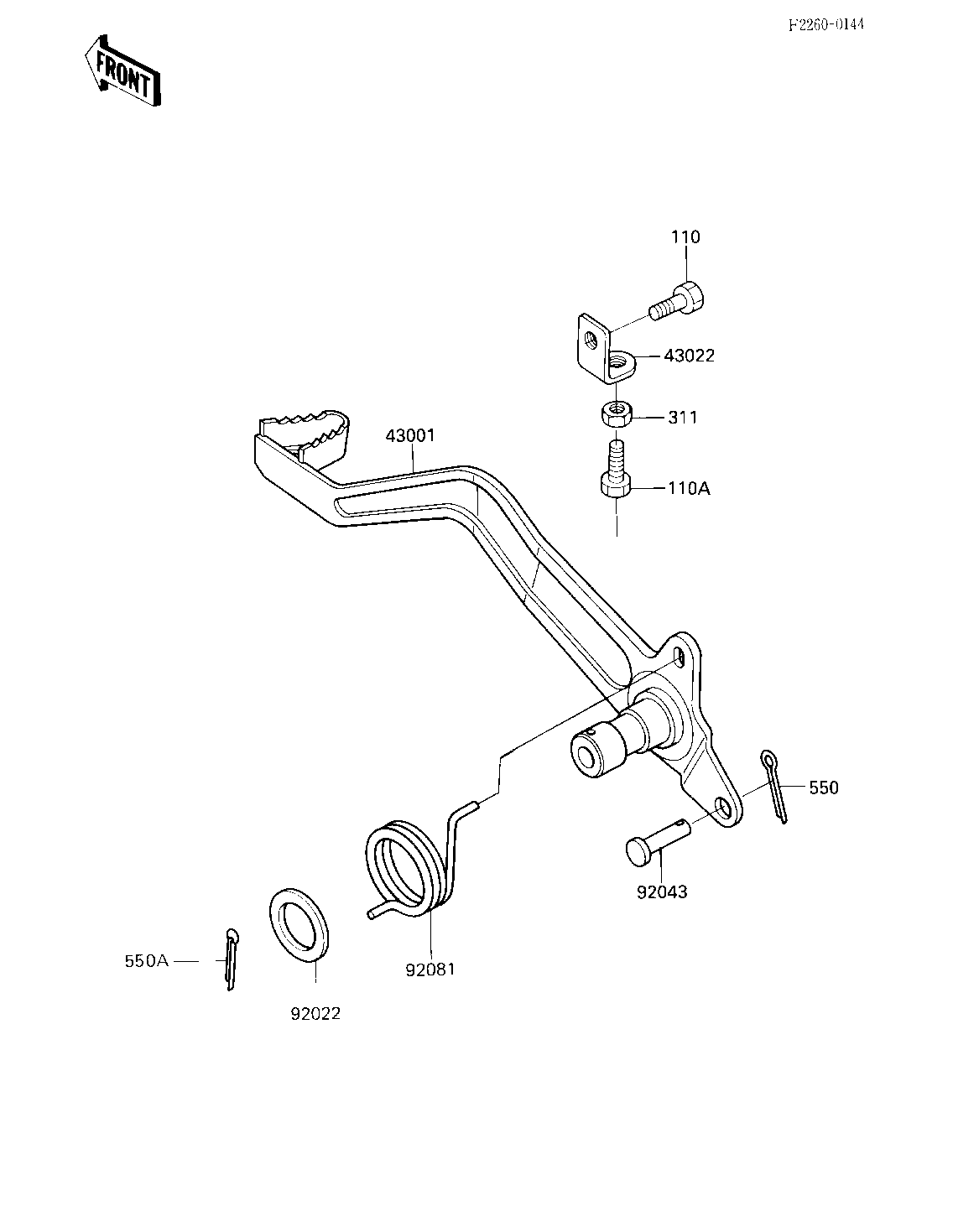

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE 43001 43001-1172 1
STOPPER-BRAKE 43022 43022-4001 1
WASHER,16.5X24X1.6 92022 92022-1126 1
PIN 92043 92043-1013 1
SPRING,BRAKE PEDAL 92081 92081-4031 1
BOLT-UPSET,6X12 110 112G0612 1
BOLT-UPSET,6X20 110A 112G0620 1
NUT 6MM 311 311B0600 1
PIN COTTER 2.0X15 550 550D2015 1
PIN,COTTER,2.5X40 550A 550D2540 1
