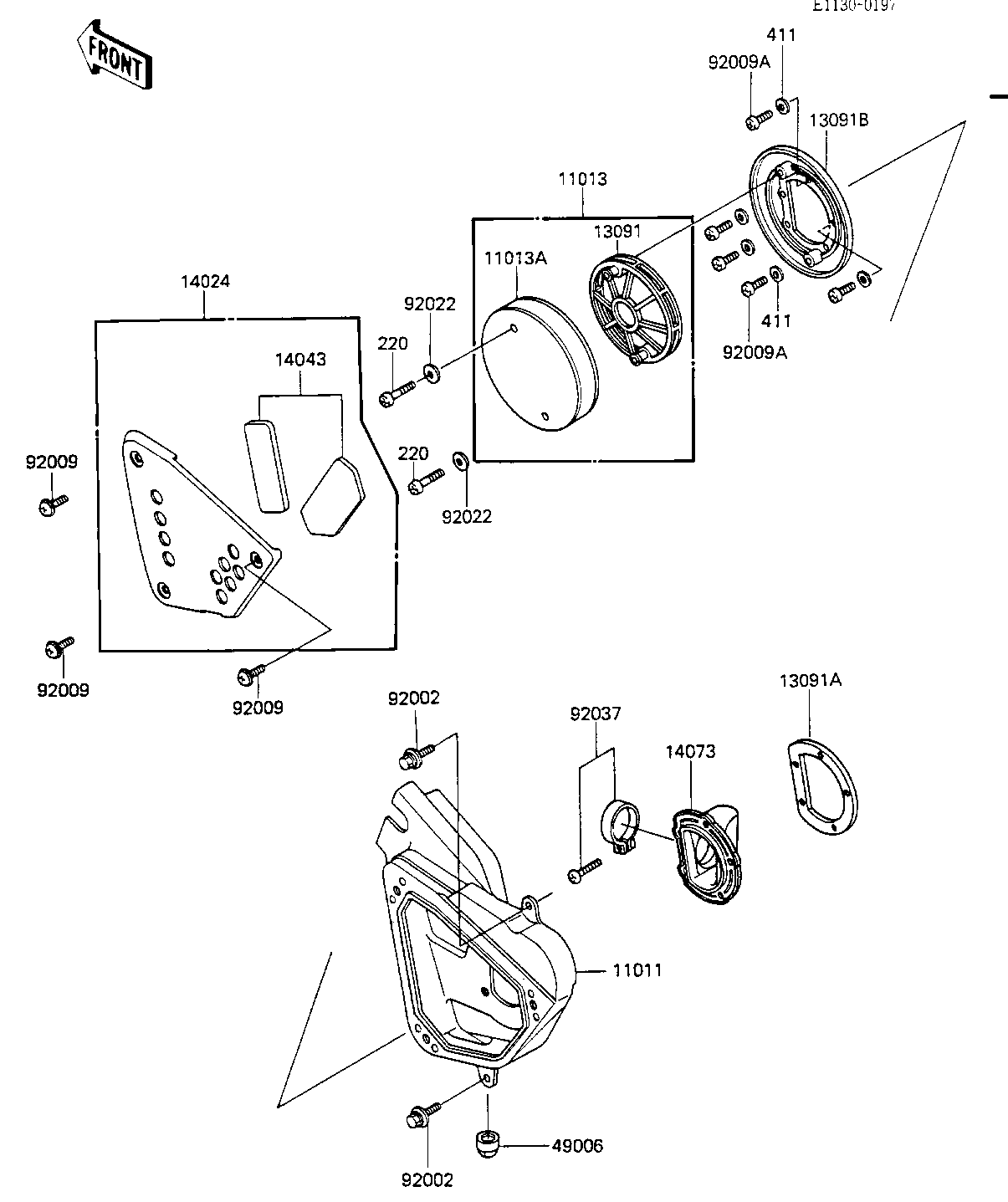

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011 11011-1180 1
ELEMENT-AIR FILTER 11013 11013-1110 1
ELEMENT-AIR FILTER 11013A 11013-1111 1
HOLDER 13091 13091-1265 1
HOLDER,DUCT 13091A 13091-1266 1
HOLDER,ELEMENT 13091B 13091-1267 1
COVER,AIR FILTER CASE 14024 14024-1210 1
FILTER,COVER 14043 14043-1057 1
DUCT,AIR FILTER 14073 14073-1194 1
BOOT,AIR FILTER 49006 49006-1156 1
BOLT,6X14 92002 92150-1340 2
SCREW,6X14 92009 92009-1287 3
SCREW,5X14 92009A 92009-1341 5
WASHER 6.5X20X1.6T 92022 92022-125 2
CLAMP,AIR FILTER 92037 92037-1409 1
SCREW PAN HEAD 6X40 220 220B0640 2
WASHER PLAIN 5MM 411 411B0500 5
