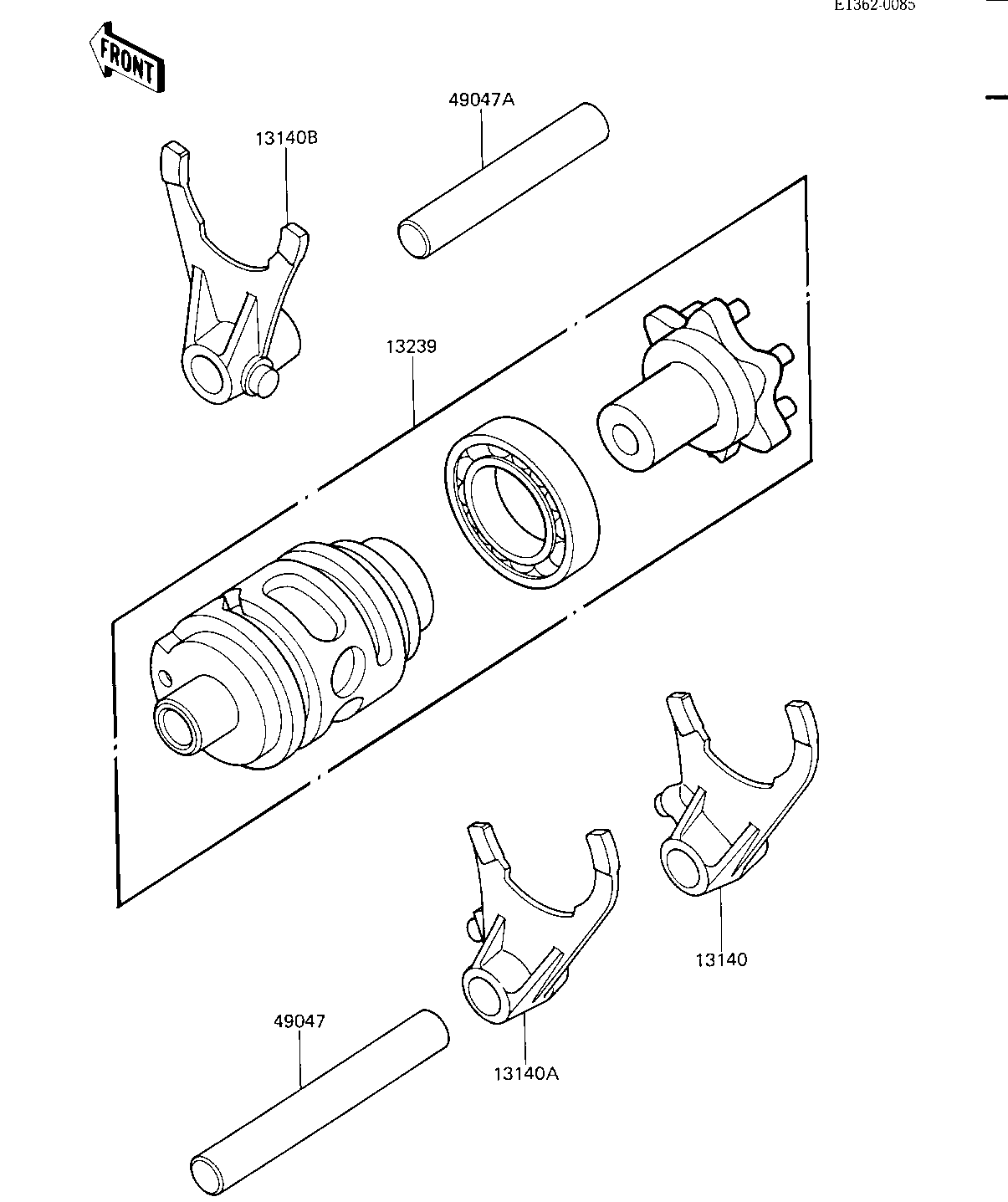

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-SHIFT,LOW 13140 13140-1057 1
FORK-SHIFT,2ND&3RD 13140A 13140-1058 1
FORK-SHIFT,4TH&TOP 13140B 13140-1059 1
DRUM-ASSY-CHANGE 13239 13239-1102 1
RODSHIFT,SHORT 49047 13209-014 1
ROD,SHIFT,L=65M/M 49047A 49047-1011 1
