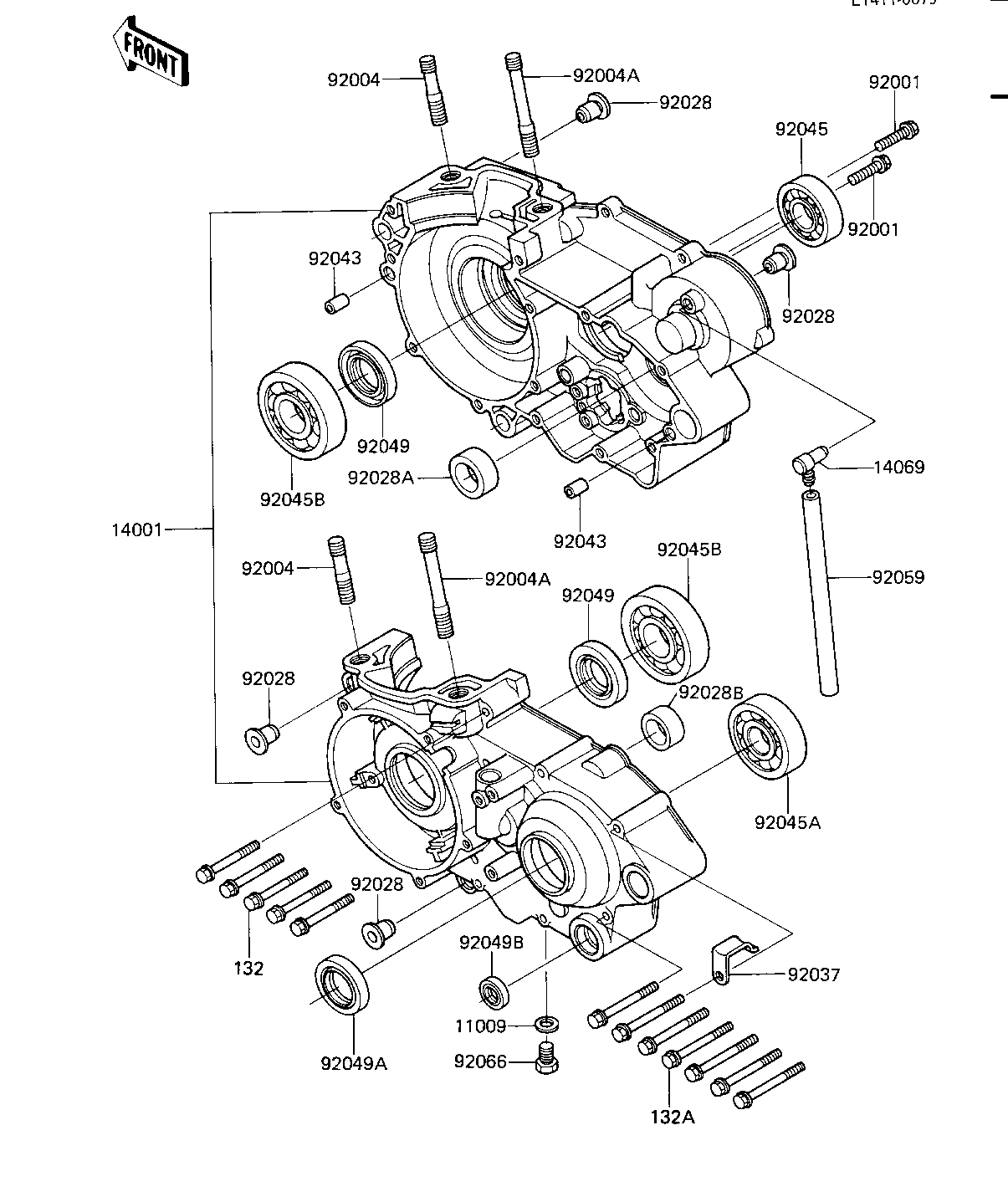

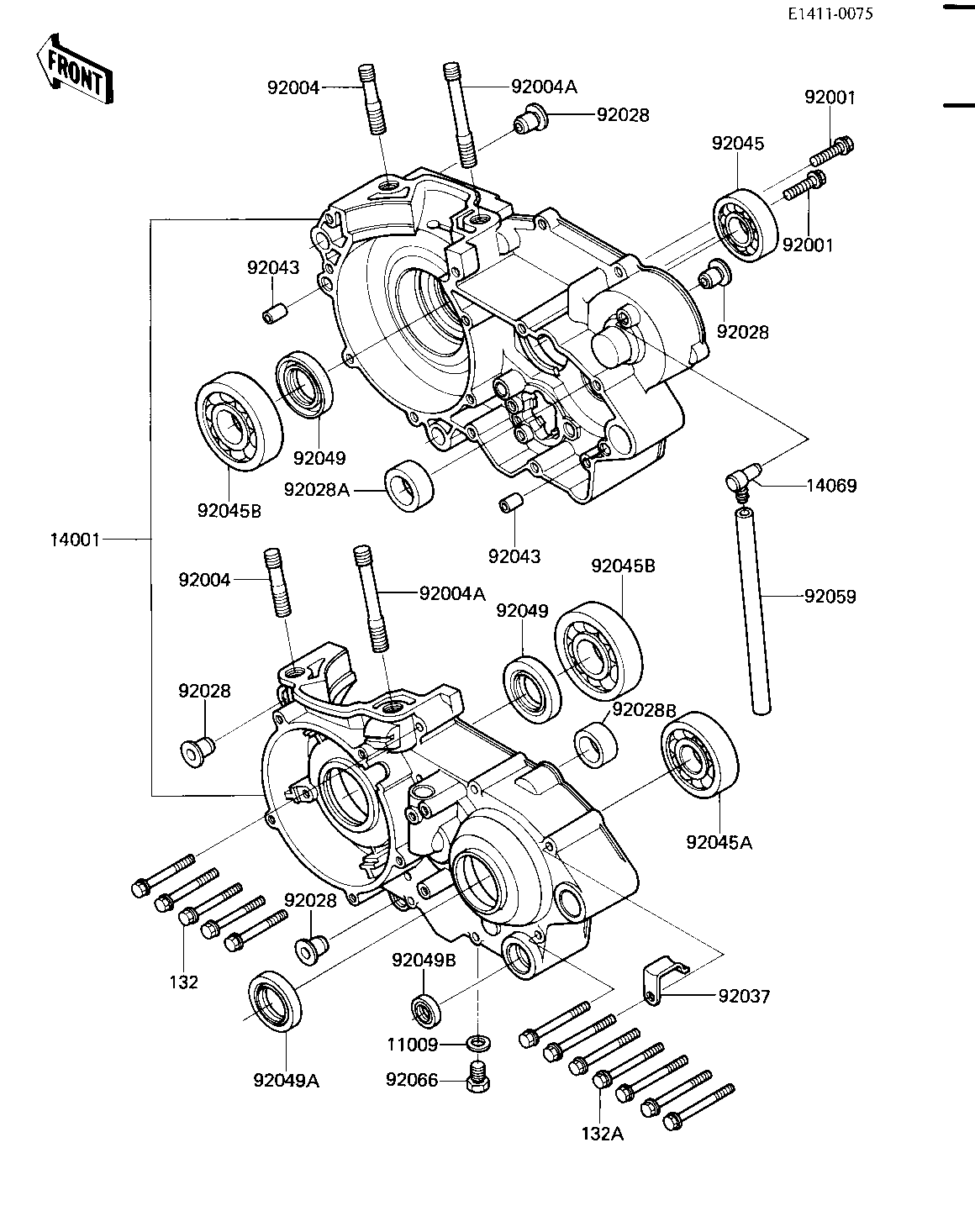

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET CHECK VALVE | 11009 | 92065-058 | 1 | ||
SET-CRANKCASE | 14001 | 14001-5158 | 1 | ||
BREATHER | 14069 | 14069-003 | 1 | ||
BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 2 | ||
STUD,10X35 | 92004 | 92004-1051 | 2 | ||
STUD,10X67 | 92004A | 92004-1052 | 2 | ||
BUSHING,CRANKCASE | 92028 | 92028-1133 | 4 | ||
BUSHING | 92028A | 92028-131 | 1 | ||
BUSHING | 92028B | 92028-132 | 1 | ||
CLAMP,HARNESS | 92037 | 92037-1318 | 1 | ||
PIN-DOWEL | 92043 | 92042-007 | 2 | ||
BEARING,BALL | 92045 | 92045-1006 | 1 | ||
BEARING,BALL,#6305 | 92045A | 92045-1011 | 1 | ||
BEARING,B,6306SH2-9TC | 92045B | 92045-1027 | 2 | ||
OIL SEAL,TB30508 | 92049 | 92050-057 | 2 | ||
SEAL-OIL,TC32457 | 92049A | 92049-1159 | 1 | ||
OIL SEAL,TB13225.5 | 92049B | 92051-005 | 1 | ||
PIPE-BREATHER | 92059 | 92059-061 | 1 | ||
PLUG OIL DRAIN | 92066 | 92067-001 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132G0650 | 5 | ||
BOLT-FLANGED-SMALL | 132A | 132G0660 | 7 |
GASKET CHECK VALVE | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER | |
REF # | 14069 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH SPR FITT | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,10X35 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,10X67 | |
REF # | 92004A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING,CRANKCASE | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING | |
REF # | 92028B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,HARNESS | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN-DOWEL | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING,BALL | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING,BALL,#6305 | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING,B,6306SH2-9TC | |
REF # | 92045B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
OIL SEAL,TB30508 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL-OIL,TC32457 | |
REF # | 92049A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL,TB13225.5 | |
REF # | 92049B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE-BREATHER | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG OIL DRAIN | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132A |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
