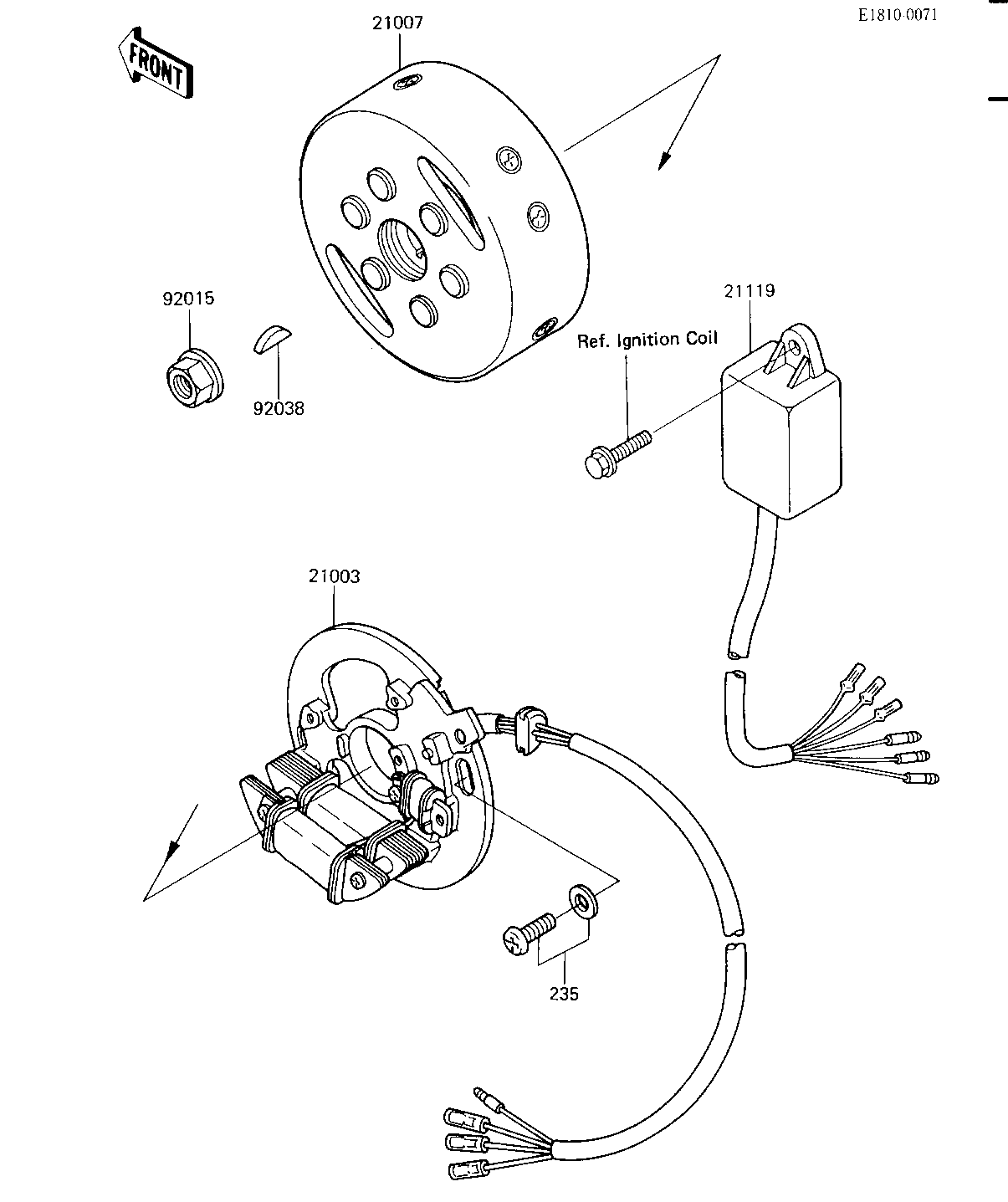

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-1109 1
ROTOR 21007 21007-1117 1
IGNITER 21119 21119-1133 1
NUT-12MM 92015 92015-1156 1
WOODRUFF KEY 92038 92038-001 1
SCREW-PAN-WP-CROS 235 235B0616 2
