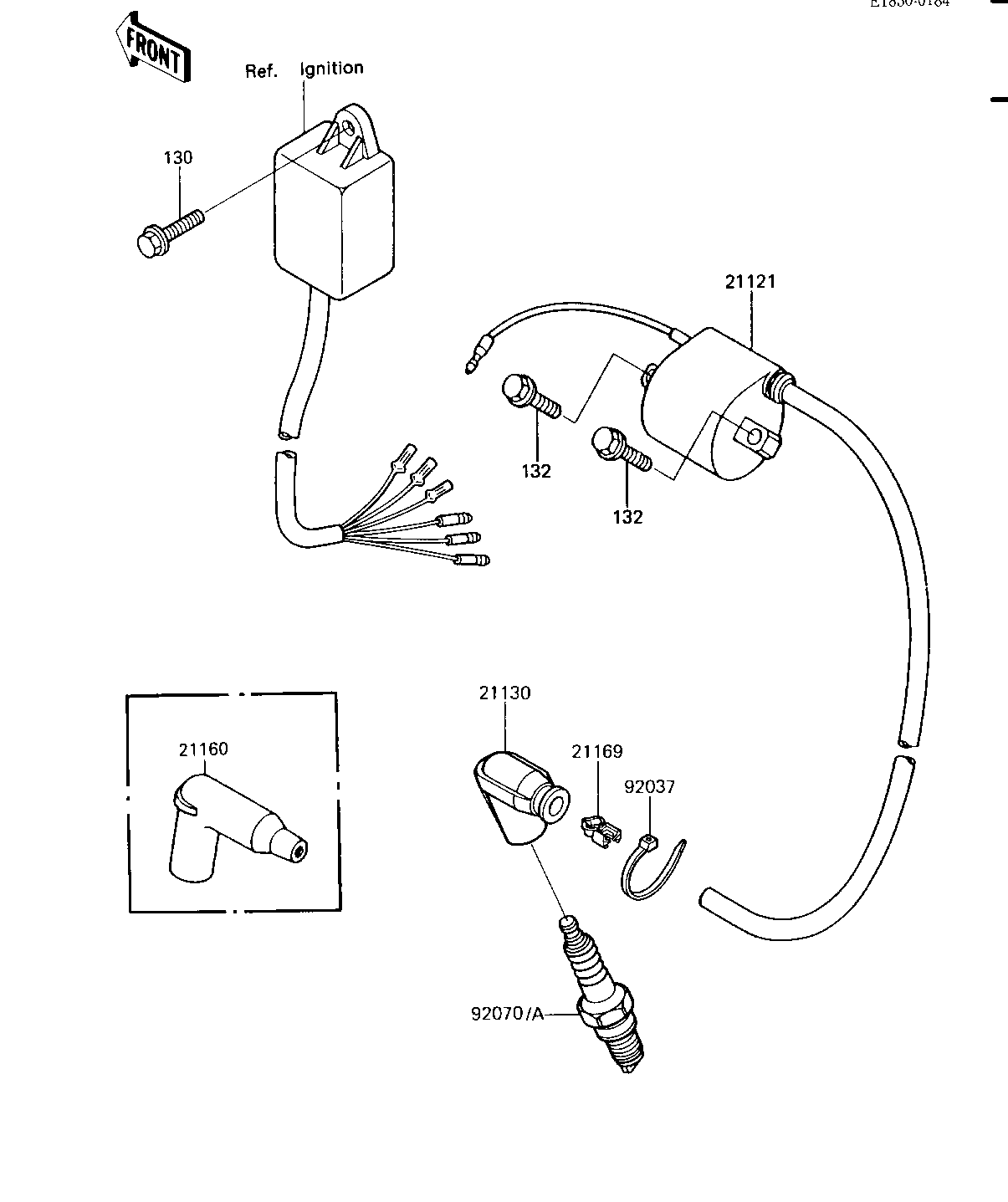

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL-IGNITION 21121 21121-1186 1
CAP,SPARK PLUG 21130 21130-1006 1 US
CAP ASSY,SPARK PLUG 21160 21160-1009 1 CN
TERMINAL,PLUG CAP 21169 21169-001 1 US
CLAMP,SPARK PLUG CAP 92037 92037-1173 1 US
SPARK PLUG B8EG 92070 B8EG 1 US
92070-047 (Canada) 92070A 92070-1064 1 CN
BOLT-FLANGED,6X16 130 130G0616 1
BOLT-FLANGED-SMALL 132 132G0616 2
