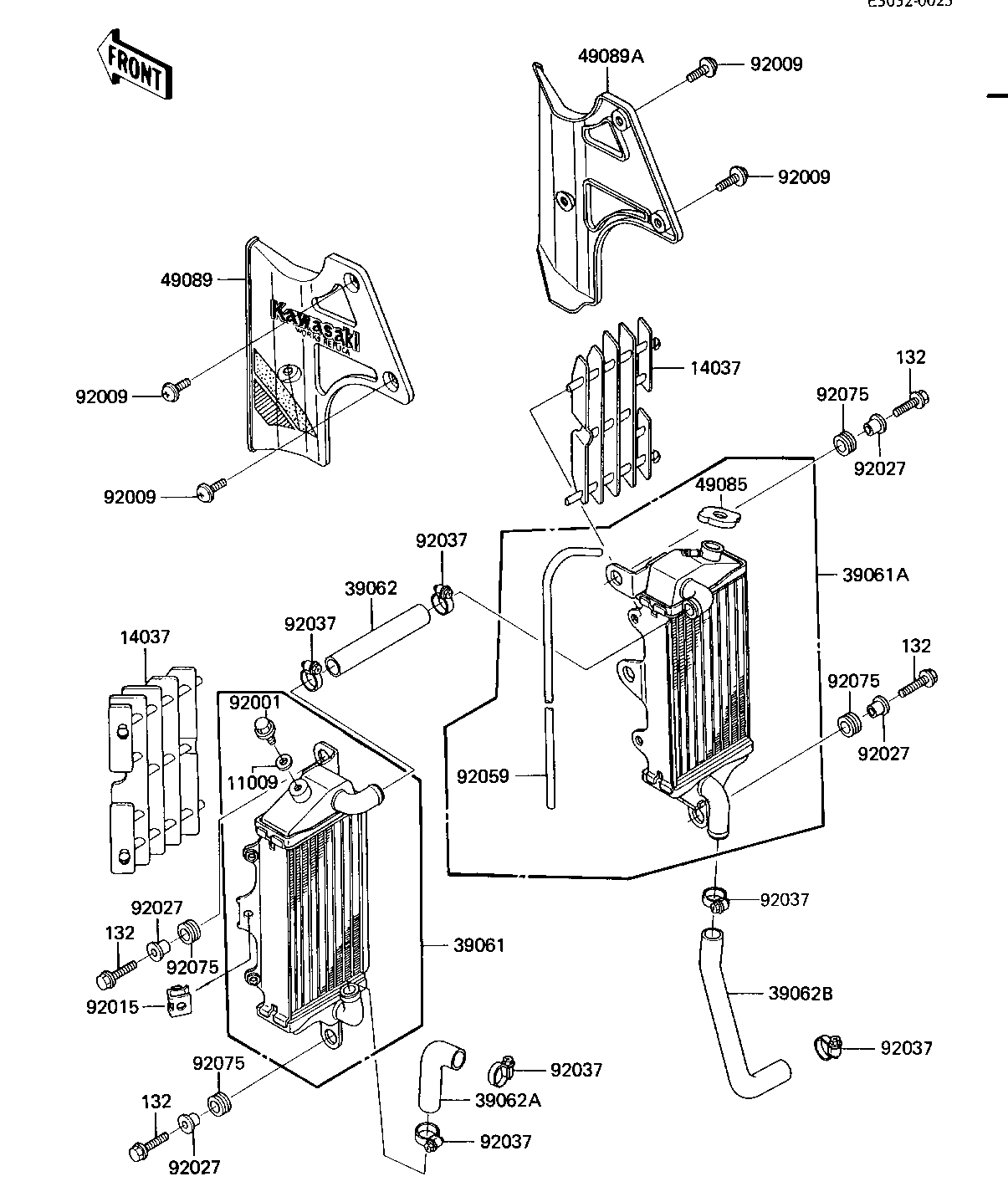

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,DRAIN PLUG 11009 11009-1152 1
SCREEN,RADIATOR,EBONY 14037 14037-1077-6C 2
RADIATOR-ASSY,LH 39061 39061-1066 1
RADIATOR-ASSY,RH 39061A 39061-1067 1
HOSE-COOLING,RADIATOR 39062 39062-1096 1
HOSE-COOLING 39062A 39062-1098 1
HOSE-COOLING 39062B 39062-1099 1
CAP-ASSY-PRESSURE 49085 49085-1003 1
SHROUD-ENGINE,LH,L.GR 49089 49089-5004-6W 1
SHROUD-ENGINE,RH,L.GR 49089A 49089-5005-6W 1
BOLT,RADIATOR DRAIN 92001 92002-1682 1
SCREW,6X10 92009 92009-1286 6
NUT 92015 92015-1487 2
COLLAR 92027 92027-194 6
CLAMP,COOLING HOSE 92037 92037-1589 6
TUBE,5X9X800 92059 92059-1383 1
DAMPER RUBBER,RR FENR 92075 92075-209 6
BOLT-FLANGED-SMALL 132 132G0620 6
